K-Tuned Electric Water Pump Kit - K Series B/D Alternator
Applications: All K-series engines except K24Z and K24Y Series Engines with D/B Series Alternator (Does not fit D17 alternator)
This kit is designed to use the crank pulley from a K20A Type R or Medium sized K20A2. If using a larger crank pulley you may need to use a longer belt.
The first part developed by ETD Racing, now K-Tuned was the electric water plate kit. Since our release, we have made several advances and improvements to the design. In recent years the market has seen several knock offs. While others are happy simply try and copy our design we strive to always improve. Recently we released our K-Series Water Plate Kit which utilizes the K-Series Alternator. Now, we are excited to provide our redesigned Water Plate Kit for B-Series Alternator.

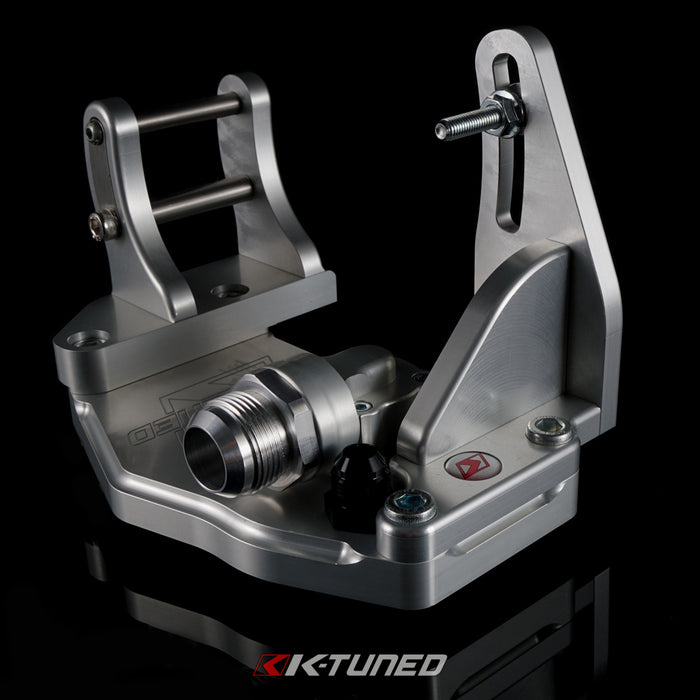

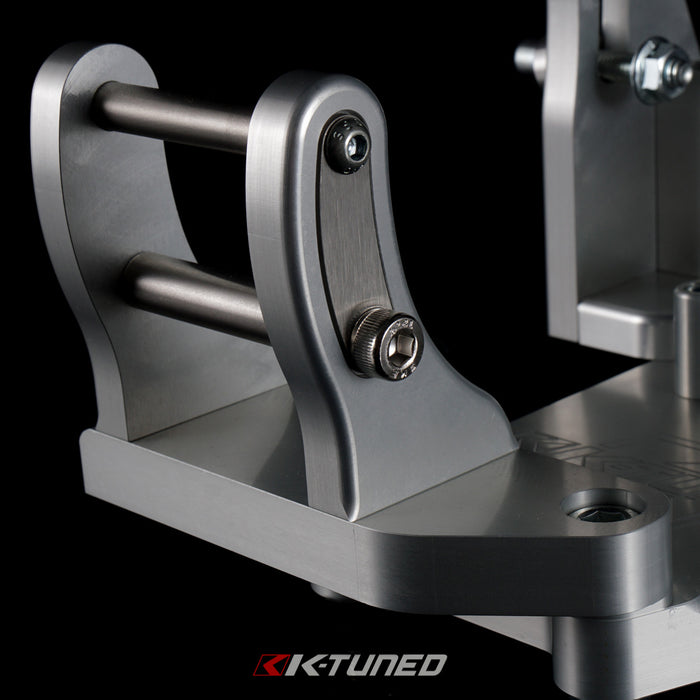

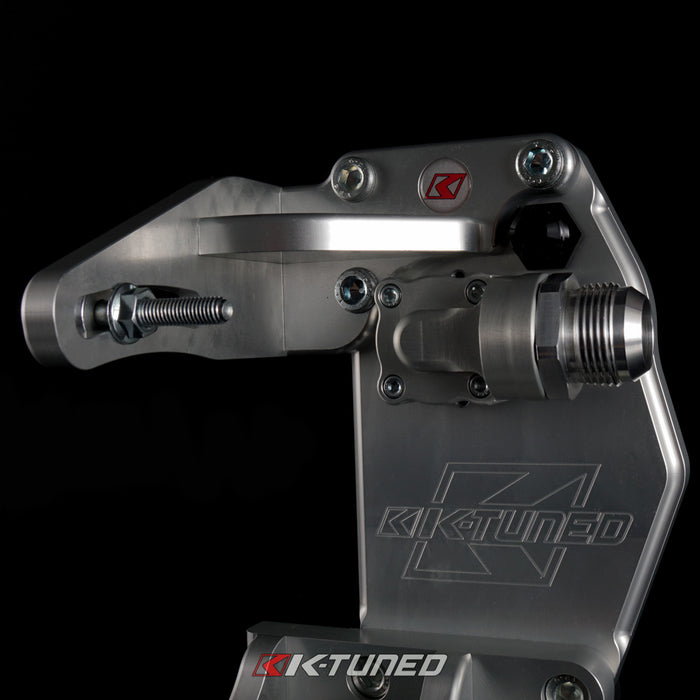

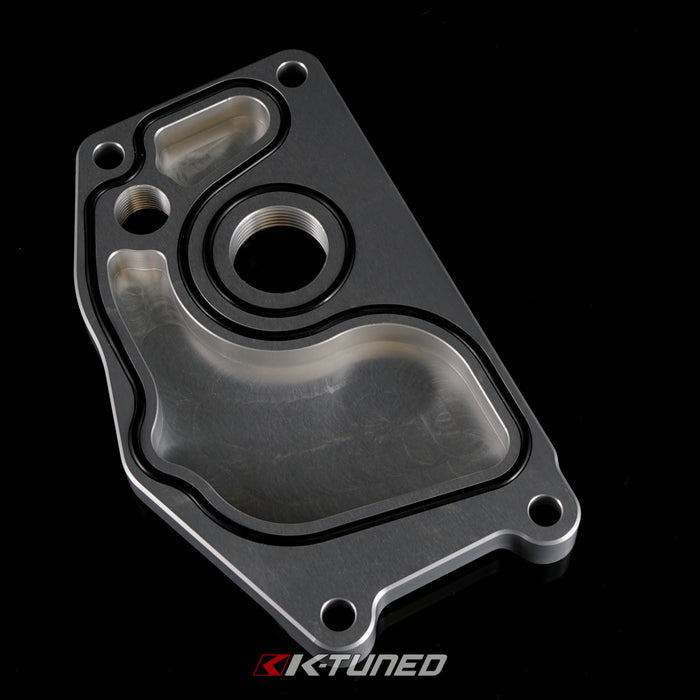

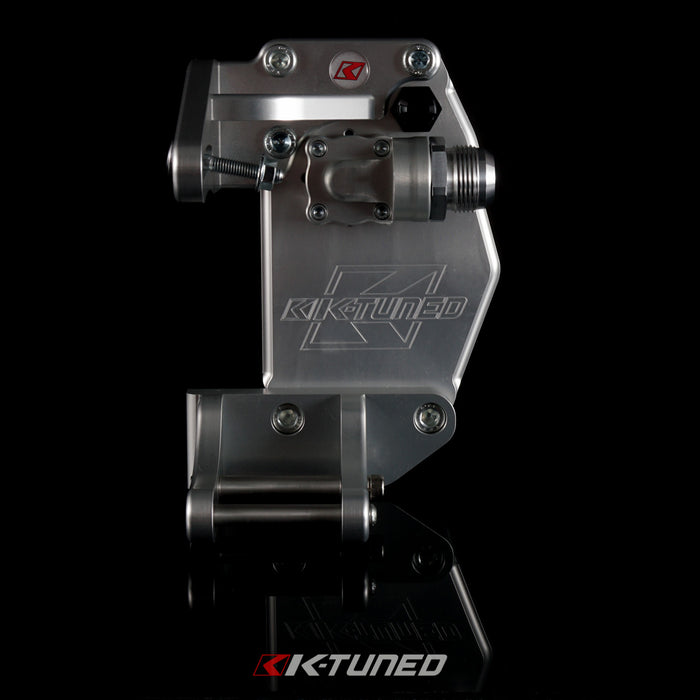

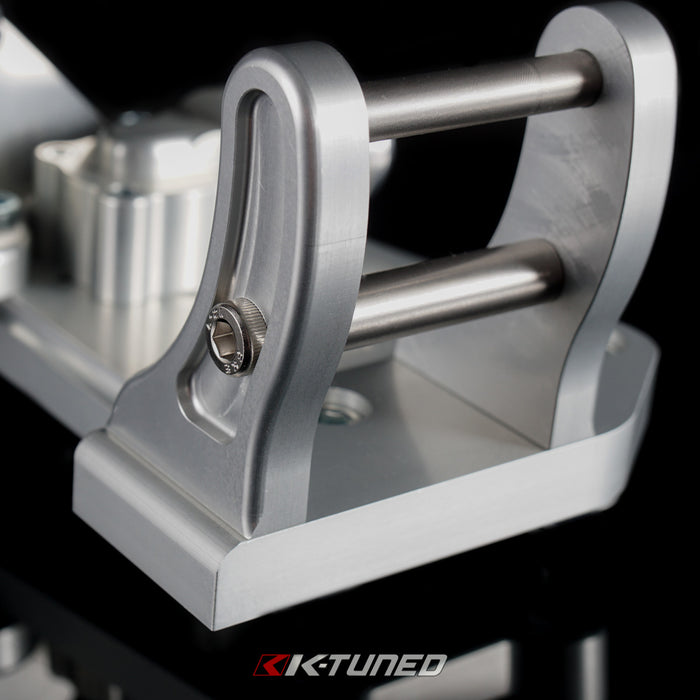

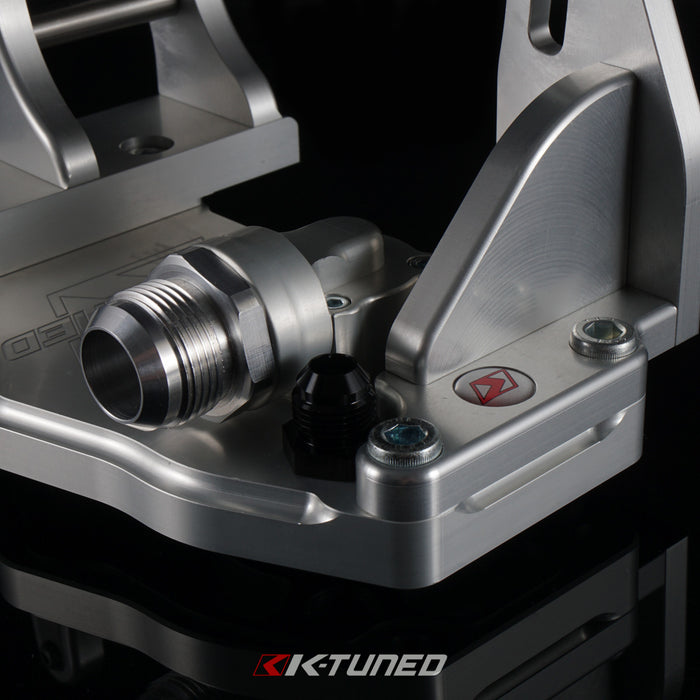

The new water plate kit now incorporates two o-rings seals. You no longer need to seal the water plate with Honda Bond. This will make it easier switching the water plate between blocks. The alternator brackets have both been redesigned to be stronger and incorporate more adjustment. The top bracket allows the alternator to properly pivot with the alternator to adjust belt pressure. The water inlet now uses -16AN port with a custom fitting which allows eight different positions.

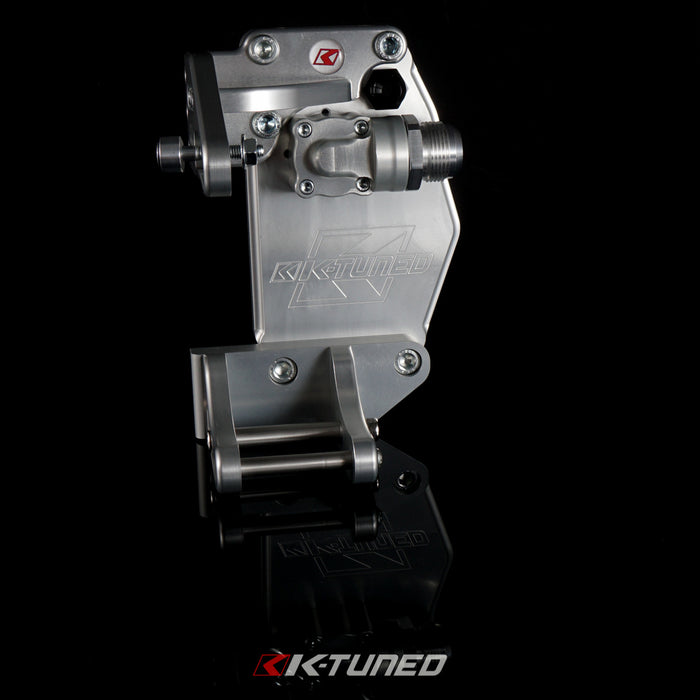

For several years now racers have used electric water pumps to reduce the power robbing effects of parasitic drag from their engines. By reducing the number of accessories the crank needs to turn there can be some impressive gains. The K-Tuned Water Pump Block Off Plate system was designed to setup a K-series engine to run an electric water pump cooling system. It replaces all the bulky and heavy OEM accessories with a simple lightweight aluminum plate. The kit is designed to allow the perfect flow of coolant and also effectively release unwanted crankcase pressure. The water port is sealed just like it was from the factory using an o-ring seal. The breather port is threaded for an 8AN fitting and can easily be routed to any catch can set-up.

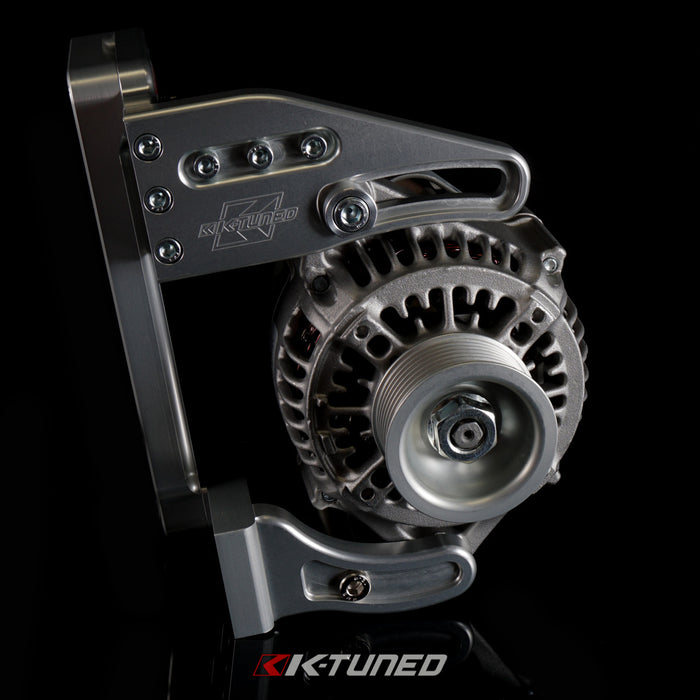

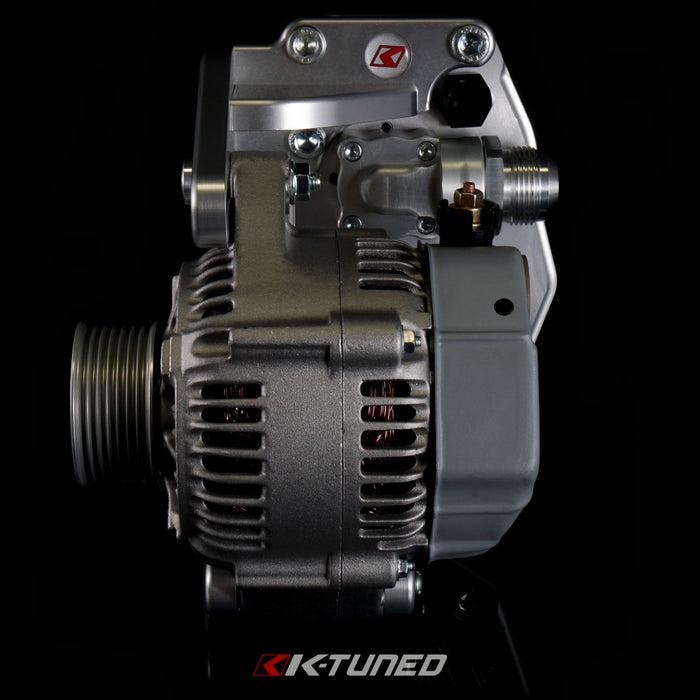

We have also designed an alternator bracket setup to be used with lighter Honda B and D alternators. We have put together a series of kits allowing you to choose which parts you want, so you can build a system that works perfectly for your application. This is a must-have for serious race car builds and a true favorite among All Motor racers.
Features:
- Replaces the huge OEM water passage with a lightweight block-off plate
- Deletes OEM water pump, auto tensioner, P/S, A/C, and EP3 pulley
- Alternator mounting bracket available with most kits
- Belt and fittings available on some kits

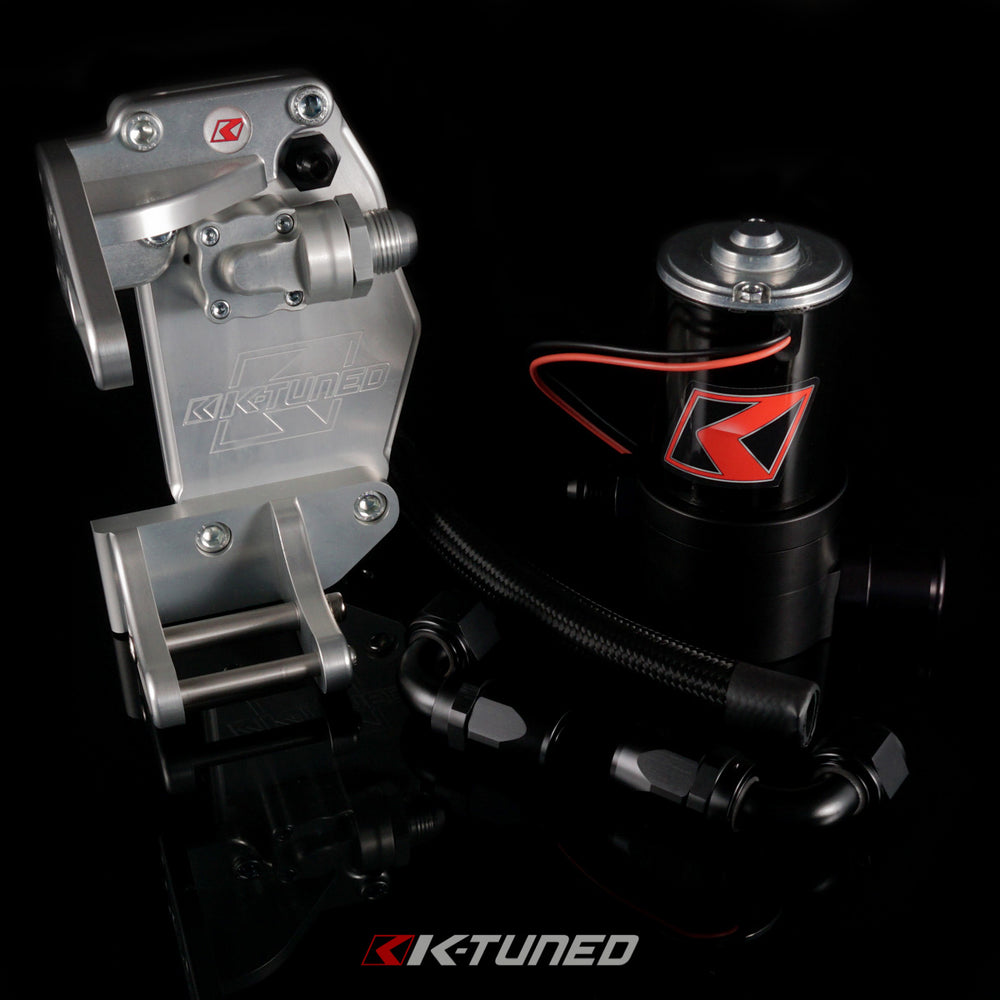

- Electric water pump and pump fittings available with complete kit
- Designed to be used with lighter D/B series alternators
- CNC machined 6061 aluminum
- Large coolant port is tapped for -16AN thread
Smaller Breather port is tapped for -8AN thread
*Note, water pump provides 20 gallons per minute flow rating
