K-Tuned Upper Coolant Housing With Filler - K24/K20Z3/CL7
Buy now pay later,no extra cost!
Payments from $34.55 with

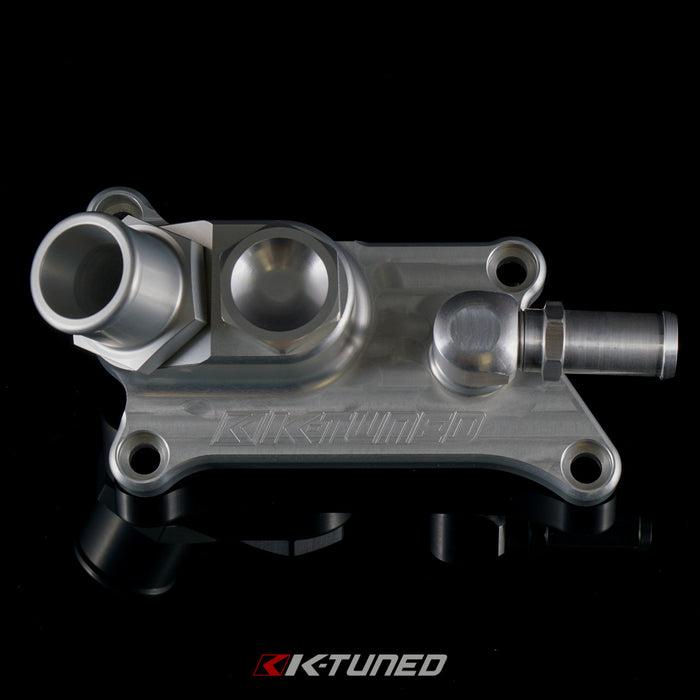

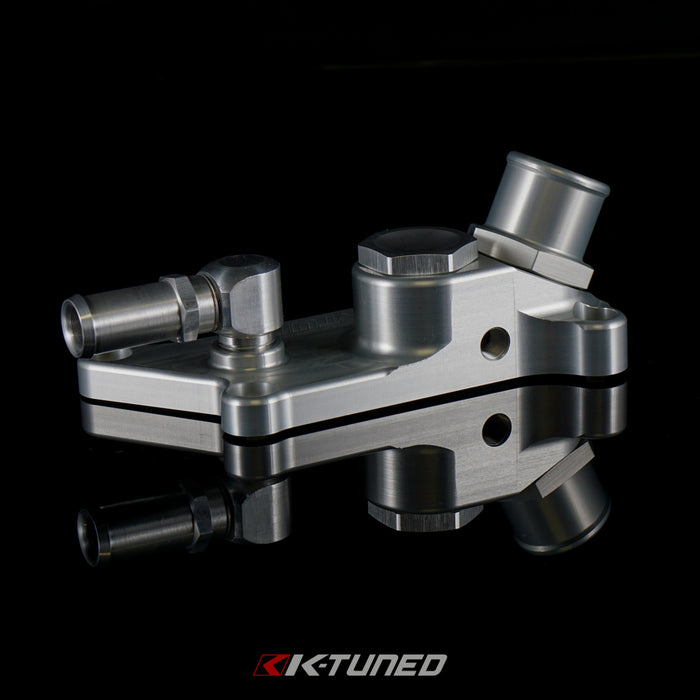

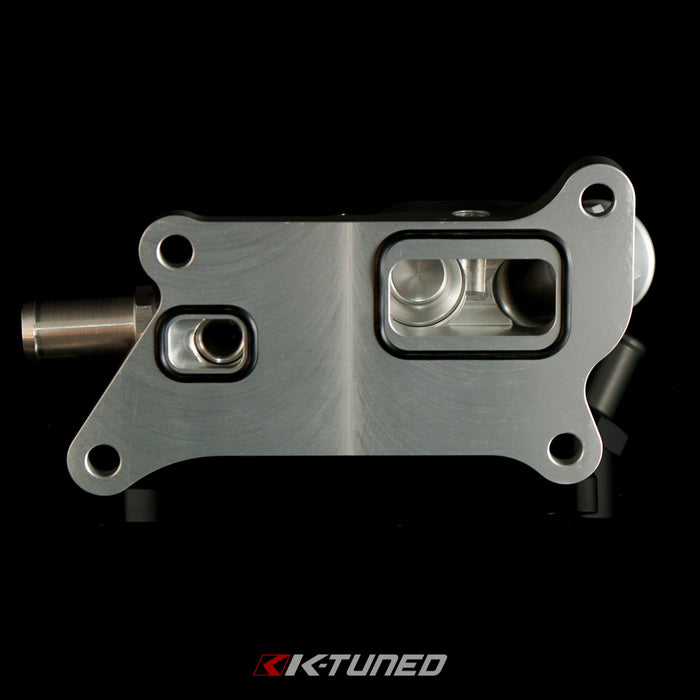

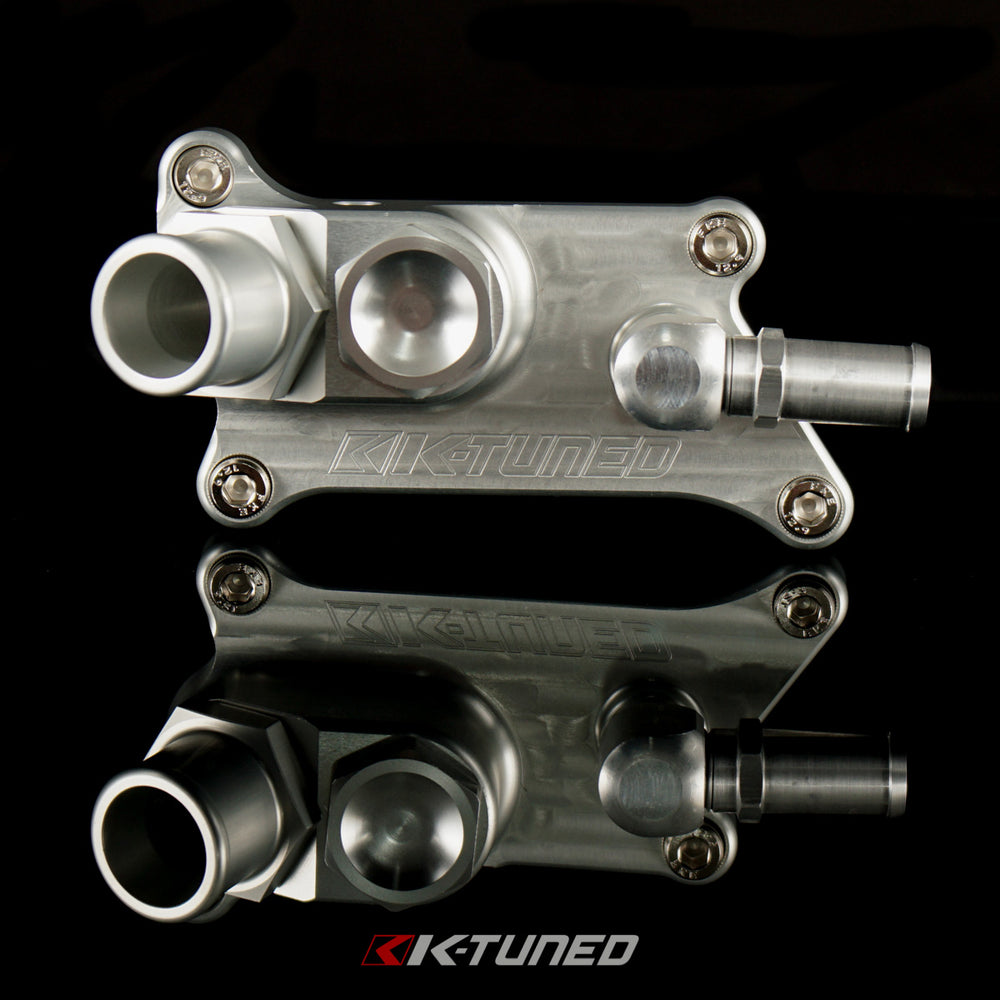

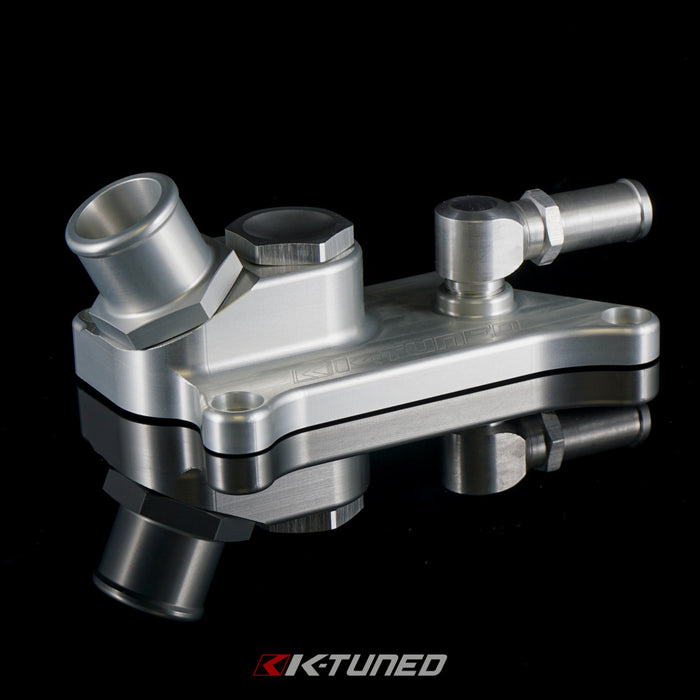

Here is the K-Tuned Upper Coolant Housing. With applications for both K20 and K24 engines, these housings will provide several unique advantages over the stock units. The hose outlet on the K-Tuned housing pivots slightly, allowing approximately 15 degrees of angle adjustment. This is helpful when compared to the fixed the factory outlet that always seems to put the upper rad hose in the path of the intake piping. There are three available hose outlets to work with any radiator hose setup.
Now Come Standard with 32mm & -16 Fittings
We have also designed an optional Filler Neck that can be used to relocate the radiator cap to a higher point on the engine itself. The new location is the highest point of the cooling system and allows air pockets to easily escape during the coolant bleeding process. The optional Filler Neck is also available with standard 1.25" hose or in 12AN and 16AN sizes and was designed for use with an OEM 92-00 Honda Civic radiator cap. This part will be very helpful on an engine that already has a bad reputation for coolant bleeding.
The K-Tuned Upper Coolant Housing will compliment our Swivel Neck Thermostat and our Water Pump Block off Plate. All of these parts allow plenty of options for custom and race engine cooling setups.
Features:
- 16OR (O-Ring) Outlet and a -12OR (O-Ring) Filler Inlet
Applications:
- K20Z3, K20 (CL7) and most K24 heads (Excluding K24A1)
Note:
- May have fitment issues with turbos depending on size of turbo and manifold.
- This will NOT work with K24Z and K24Y series engines
- There is fitment issues with the K20 Upper Coolant Housing and Jackson Racing Supercharger
