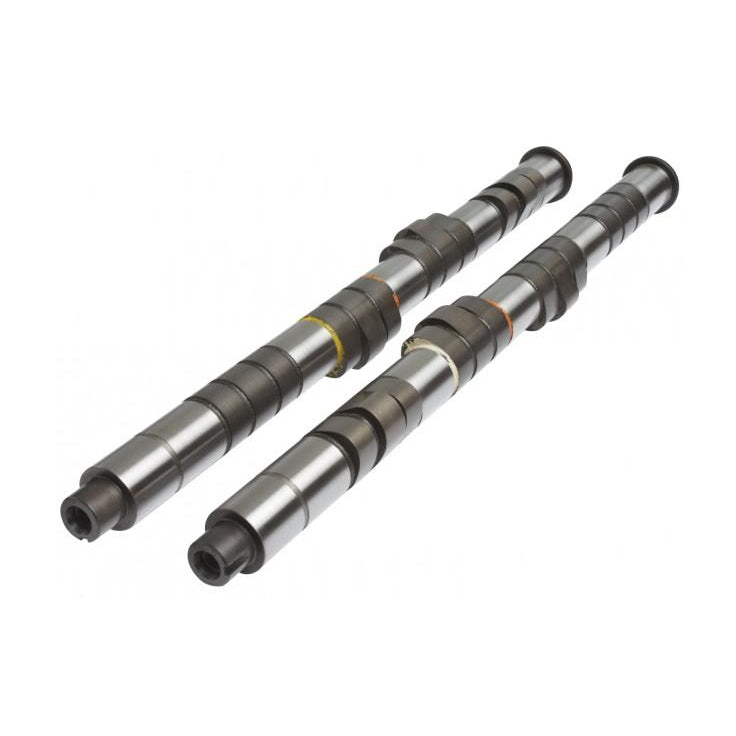

Kelford Cams 176-T2 Honda B16A/B18C VTEC Drag Cams

$1,059.00 NZD
SKU KC176-T2
Buy now pay later,no extra cost!

Payments from $105.90 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

294/298 Degrees advertised duration. 11.80m /11.30mm lift.

Additional Information

Pro Import 1200HP-1600HP Cams. Best suited for alcohol fuels. 50lb+ of boost and 10,500rpm when used with KVS18K spring kit. Primary & Secondary lobe specifications are: Intake 270 & 262 / Exhaust 270 & 262 Degrees advertised duration. Intake 11.00mm & 11.00mm / Exhaust 10.00mm & 10.00mm lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
HONDA B16A/B18C VTEC 176-T2
Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
  Exhaust: 0.30mm Set HOT at the VALVE

Cam Lift:   Intake: 7.81mm Exhaust: 7.48mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 11.80mm Exhaust: 11.30mm
Advertised Duration @ 0.10mm Intake: 294 Exhaust: 298
Duration @ 1.00mm VALVE LIFT Intake: 264 Exhaust: 266
Timing @ 1.00mm VALVE LIFT IVO: 22 BTDC EVO: 71 BBDC
    IVC: 62 ABDC EVC: 15 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 3.91mm Exhaust: 2.70
