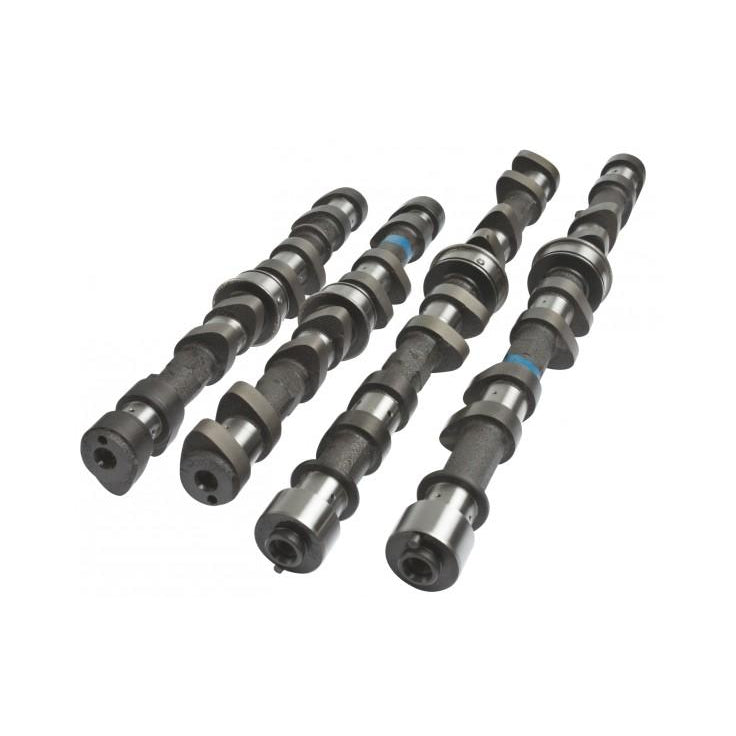

Kelford Cams 207-E Lexus 1UZ-FE Performance Cam
Buy now pay later,no extra cost!
Payments from $235.63 with

Note: Please check availability with us before ordering.
286/286 Degrees advertised duration. 9.65mm/9.65mm lift.
Additional Information:
Racing cams to suit engines with a good exhaust, raised compression, eight throttles etc.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | Lexus 1UZ-FE | 207-E | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.90mm | Exhaust: | 9.95mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.65mm | Exhaust: | 9.65mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 286 | Exhaust: | 286 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 246 | Exhaust: | 246 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 19 BTDC | EVO: | 47 BBDC | ||
| IVC: | 47 ABDC | EVC: | 19 ATDC | ||||
| Suggested Centre Lines: | Intake: | 104 | Exhaust: | 104 | |||
| VALVE | Lift @ TDC | Intake: | 3.00mm | Exhaust: | 3.00 | ||
