Mishimoto Baffled Oil Catch Can, Fits Dodge Ram 5.7l 2009-2018
Buy now pay later,no extra cost!
Payments from $51.58 with
The classic Hemi from Dodge has always been a great engine. But even Dodge couldn’t dodge the dangers of engine blow-by. Mishimoto has you covered with our direct-fit, baffled oil catch can kit for the 2009–2018 Dodge Ram 5.7L V8. This kit provides excellent protection for your engine, keeping the blow-by down to a minimum and lengthening your engine’s need for valve servicing.
During testing, we quickly discovered that our standard 2 oz can was not enough. The amount of blow-by exceeded the can’s capacity in under 1000 miles! We had to switch to a larger, 7.5 oz can so the intervals between draining would last longer and you’d be able to effectively protect your Hemi. Our patent pending billet aluminum 7.5 oz can has internal baffling, air diverters, and a 50-micron bronze filter to keep oil out of your intake and carbon deposits off your valves. The bracket included in each kit is made of very strong and thick steel, so vibration will not be something to worry about. With it bolting directly to your radiator support, you’ll have a clean OEM look. This kit installs in under 1 hour, is easily serviceable, and comes with our Mishimoto Lifetime Warranty.
Features:
- Direct fit for the 2009–2018 Dodge Ram 5.7L
- Single can mounting in line with the PCV system separates oil particles using 50-micron bronze filter
- Helps reduce carbon buildup on intake valves

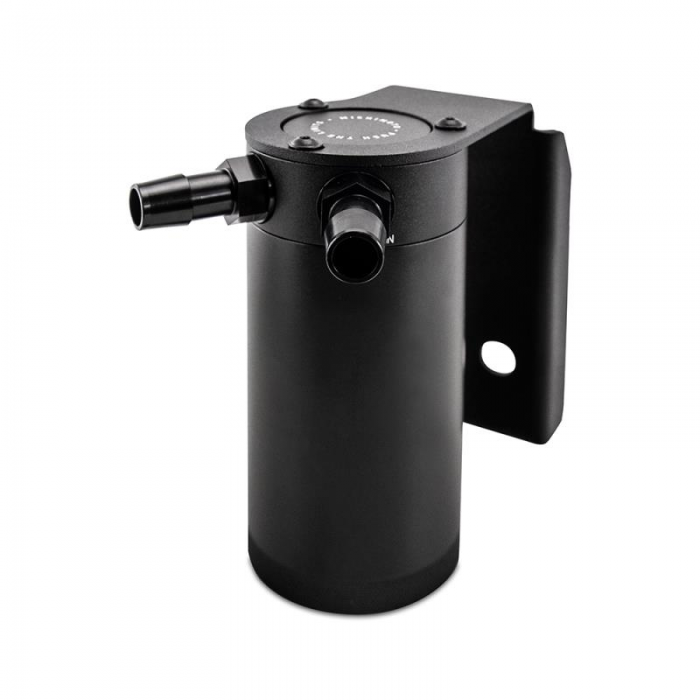

- Patent pending billet 6061 aluminum can sealed with Viton™ O-rings
- Installs in under 1 hour

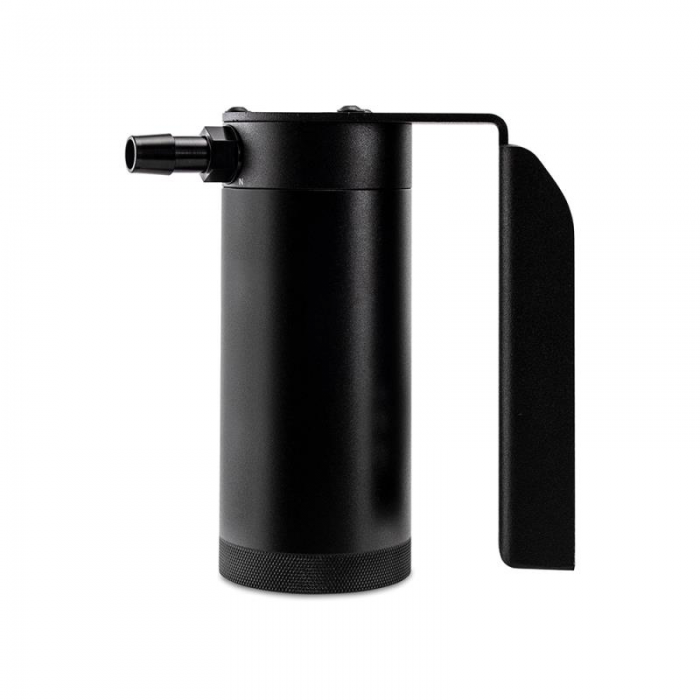

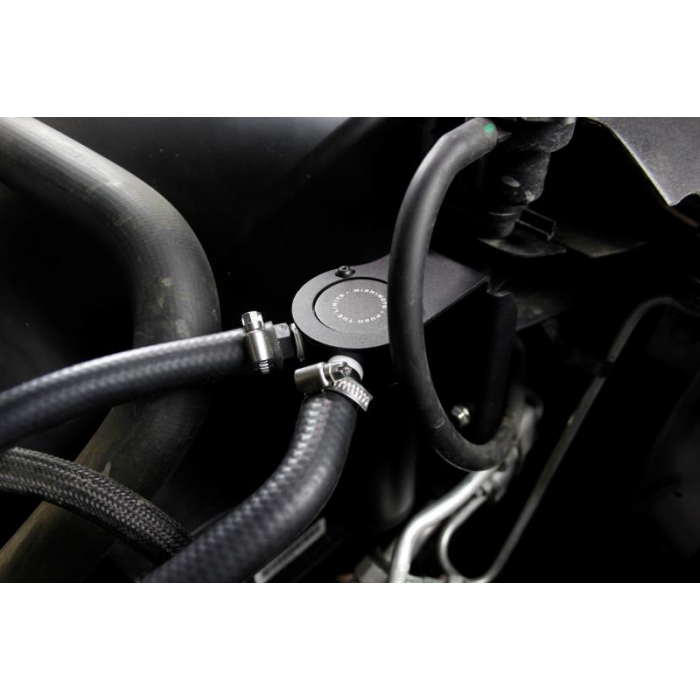

- Robust, application-specific bracket mounts the can in a serviceable location
- Includes pre-molded hoses for simplified installation
- Defends intake system and essential engine components from oil blow-by
- CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
- Catch can has a 7.5 oz capacity for longer servicing intervals

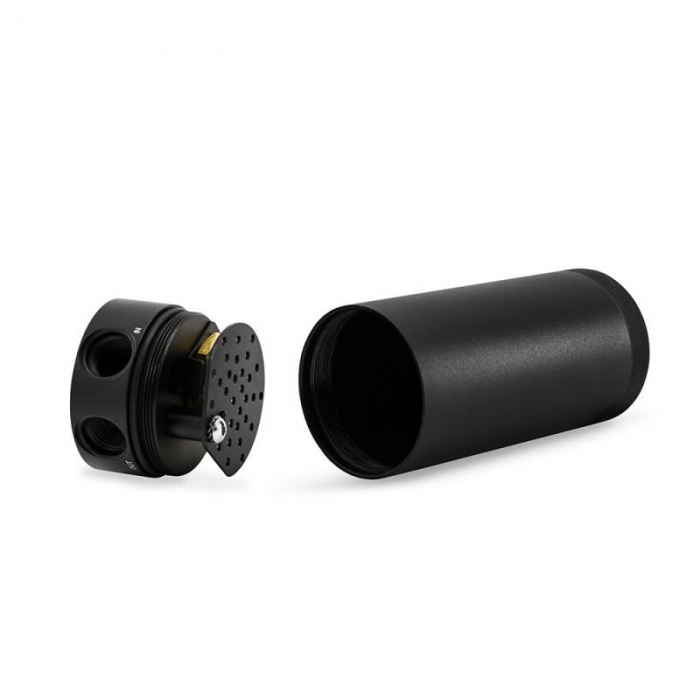

- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable
- Patent Pending
- Mishimoto Lifetime Warranty

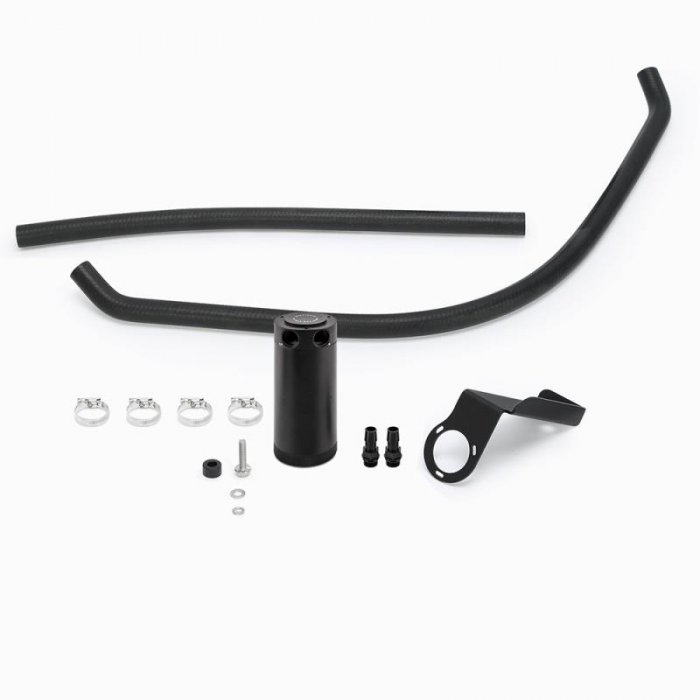

Includes:
- (1) Large Baffled Oil Catch Can
- (1) Application-Specific Mounting Bracket
- (2) Direct-Fit Hoses
- (2) 1/2" Aluminum Barbed Fittings
- (4) Worm Gear Clamps
- Mounting Hardware
- Mishimoto Lifetime Warranty
Notes:
After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
Vehicle:
| ENGINE CODES | 5.7L V8 Hemi |
| FITS | Dodge Ram 1500, 2009-2012 RAM 1500, 2013-2018 |
Specifications:
| INLET | 1/2" |
| OUTLET | 1/2" |
| DRAIN PLUG THREAD SIZE | 3/8" NPT |
| CAPACITY | 7.5 oz |
| MATERIAL | 6061 Aluminum |
| INSTALL TORQUE SPECS | 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |
| BAFFLED | True |
