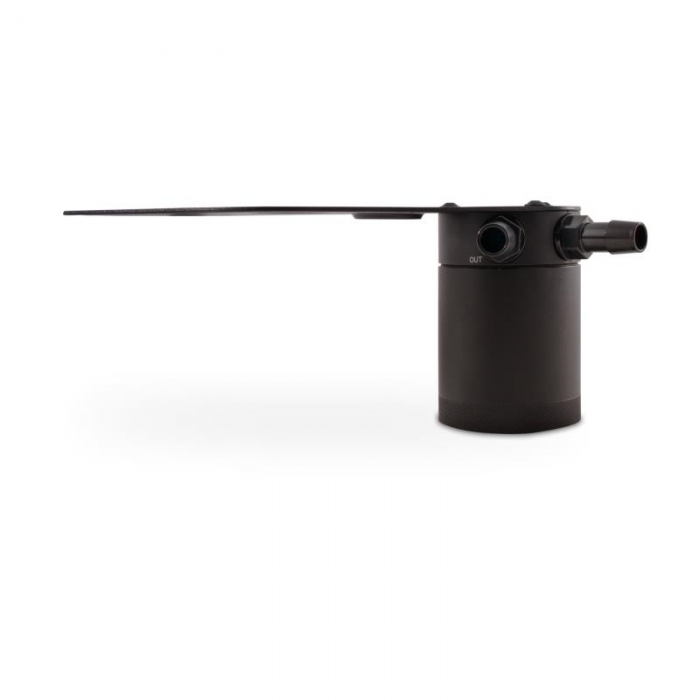

Mishimoto Baffled Oil Catch Can, Pcv Side, Fits Ford Mustang Gt 2015-2017
Buy now pay later,no extra cost!
Payments from $49.93 with

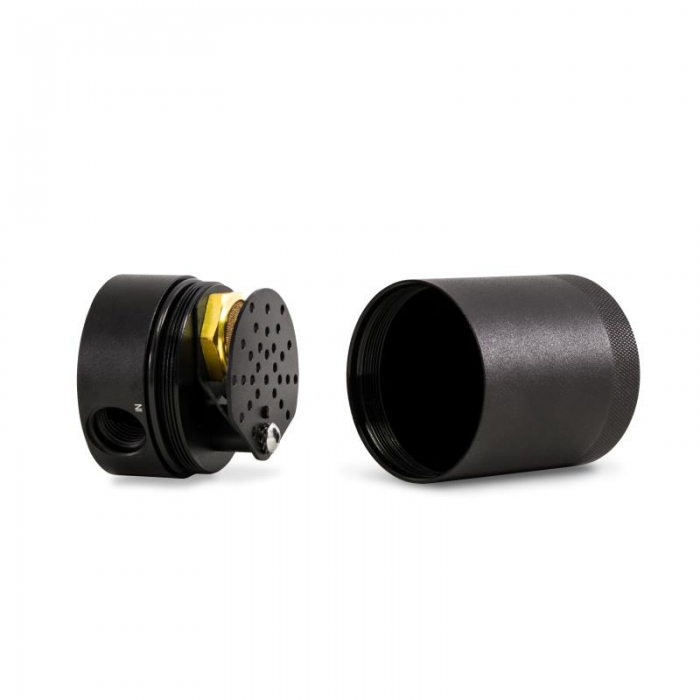

As powerful as the Ford Coyote engine is, it still needs some protection, and the Mishimoto engineers created a baffled catch can kit for that very reason. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels, potentially increasing chances of detonation. Mishimoto’s 2015 Mustang catch can kit features a patent pending 2-port Compact Baffled Oil Catch Can with a 50-micron bronze filter and an internal baffle to better separate oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation.
Reducing blow-by becomes even more important with the addition of forced induction, so this 2015 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you’re on the road with that 5.0L Coyote, you’ll have the peace of mind knowing that blow-by isn’t stripping away any of your treasured HP.
To back up Mishimoto’s superior craftsmanship, each 2015 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty!
Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.
Features:
- Direct fit for the 2015-2017 Ford Mustang GT
- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
- Helps reduce carbon buildup on intake valves
- Patented billet 6061 aluminum can sealed with Viton™ O-rings
- Installs in under 30 minutes

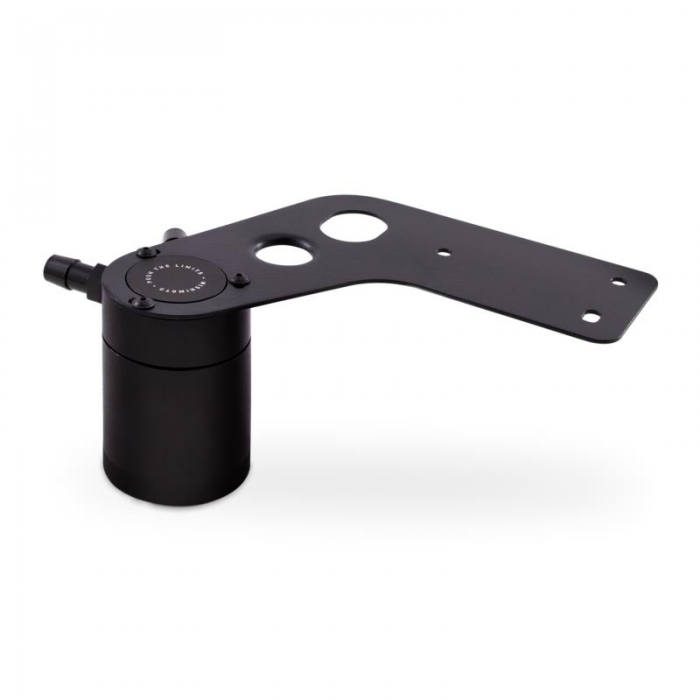

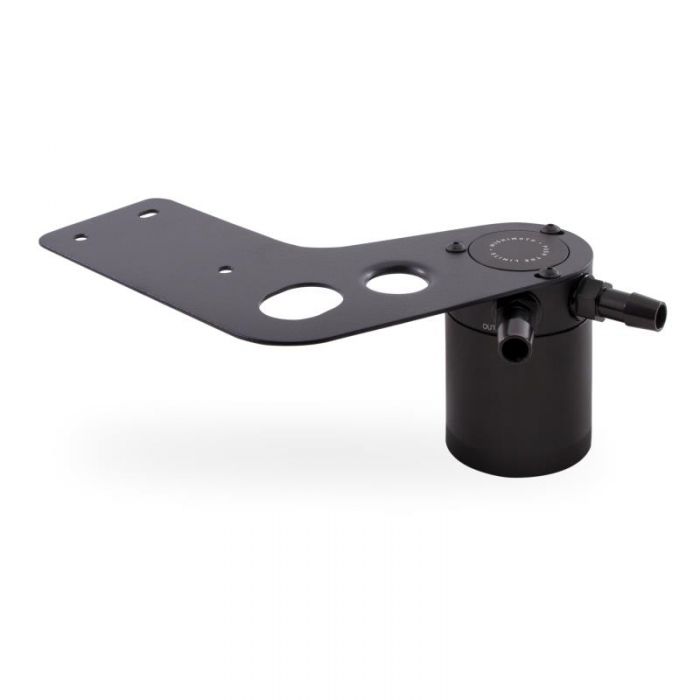

- Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits

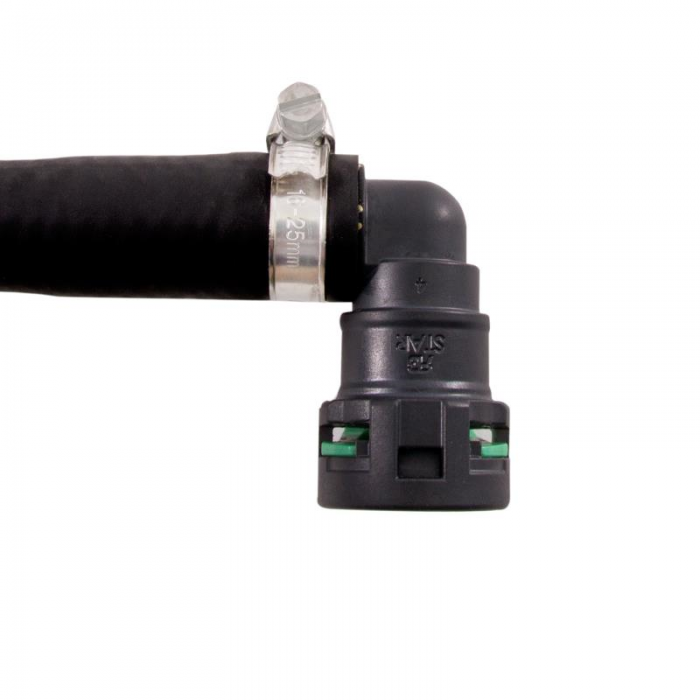

- Includes pre-molded hoses with factory quick-disconnect fittings for simplified installation
- Defends intake system and essential components from oil blow-by
- CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
- Catch can has a 3 oz. capacity for longer servicing intervals
- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable
- Mishimoto Lifetime Warranty
- Patent #US D884,760 S

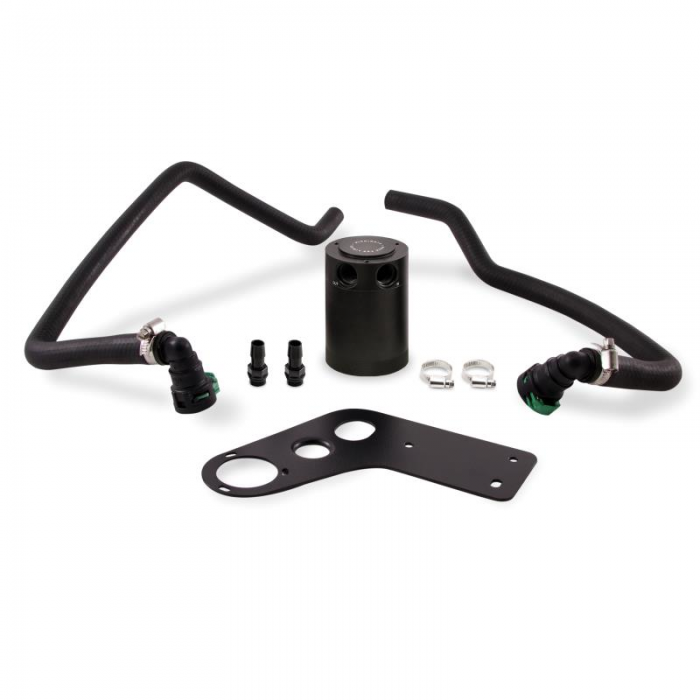

Includes:
- (1) Compact Baffled Oil Catch Can
- (1) Application-Specific Mounting Bracket
- (2) Direct-Fit Hoses with Pre-Installed Factory Quick-Disconnect Fittings
- (2) 1/2" Aluminum Barbed Fittings
- (2) Worm Gear Clamps
- Mounting Hardware
- Mishimoto Lifetime Warranty
Notes:
After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.May not be direct fit with some S/C applications.
Vehicle Specifications:
| ENGINE CODES | 5.0 Coyote |
| CHASSIS CODES | S550 |
| FITS | 2015-2017 Ford Mustang GT |
Product Specifications:
| OVERALL HEIGHT | 3.8" |
| INLET | 1/2" |
| OUTLET | 1/2" |
| DRAIN PLUG THREAD SIZE | 3/8" NPT |
| CAPACITY | 3 fl oz. |
| MATERIAL | 6061 Aluminum |
| INSTALL TORQUE SPECS | 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |
| BAFFLED | True |
