Mishimoto Front-Mount Intercooler Kit, Fits Subaru WRX 2015+
Buy now pay later,no extra cost!
Payments from $327.51 with
Here at Mishimoto, we've decided to expand our line of 2015 WRX parts. Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto 2015 WRX Front-Mount Intercooler Kit provides your 2015 WRX with the ability to make the most horsepower and torque possible. This 2015 WRX intercooler was designed with a large 28 intercooler core that provides the maximum cooling capability without excessive pressure drops that wear out any turbocharger over time. The Mishimoto 2015 WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter-mile.
The Mishimoto Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25" in diameter to keep airflow velocities high, giving your car an instant response without the excessive throttle lag that plagues many front-mount intercooler designs. The hot-side pipe also features a CNC-machined flange for a leak-free connection to the turbo. The cold side of the system features 2.5" to 2.75" mandrel-bent aluminum tubing for maximum airflow and to match the diameter of your throttle body.
This 2015 WRX front-mount intercooler kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets, including a new bracket for the air intake. Our 2015 WRX front-mount intercooler kit also includes every coupler and clamp you need for a clean install, and complements the Mishimoto Subaru WRX Performance Air Intake for added cooling power.
Mishimoto tested this WRX intercooler on our Stage 2 265 whp 2015 WRX to find significant drops in AITs (air intake temperatures), and it has also been flow tested to over 600 whp! The 2015 WRX front-mount intercooler kit is available with either a Sleek Silver or Stealth Black cooler and, like all our 2015 WRX parts, includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Worried that paint reduces performance? Check out our Painted Intercooler Engineering Report to learn how we debunked that myth!
Features:
- Direct fit for the 2015+ Subaru WRX
- 3.5" thick intercooler design optimized for maximum flow
- Designed to work with Mishimoto Performance Air Intake and stock intake
- Includes black powder-coated steel tubular crash bar
- Smooth cast end tanks allow the best possible airflow in and out of the intercooler
- Optimal core design for maximum cooling efficiency with minimal pressure drop
- Includes all necessary couplers, brackets, and accessories

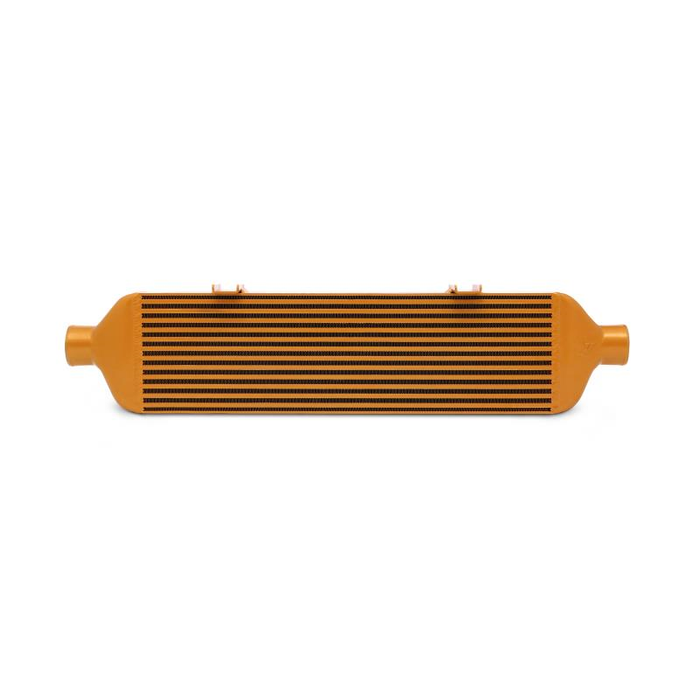

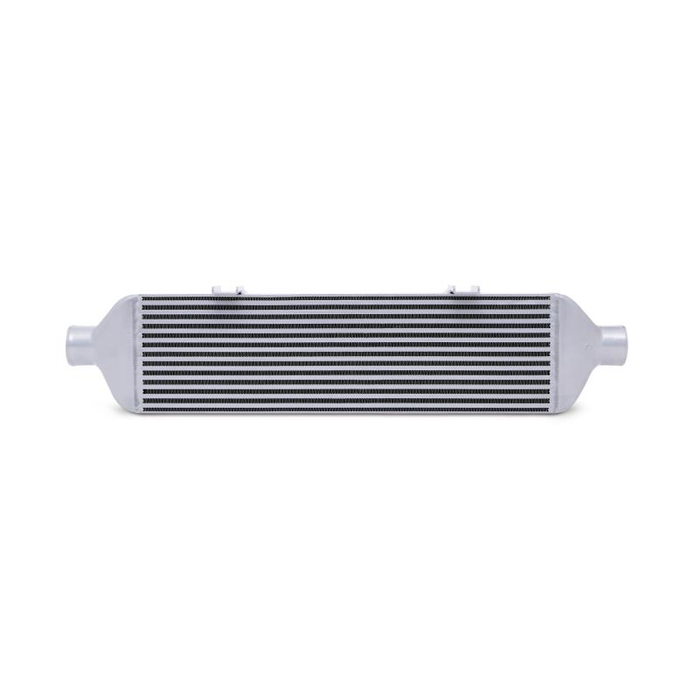

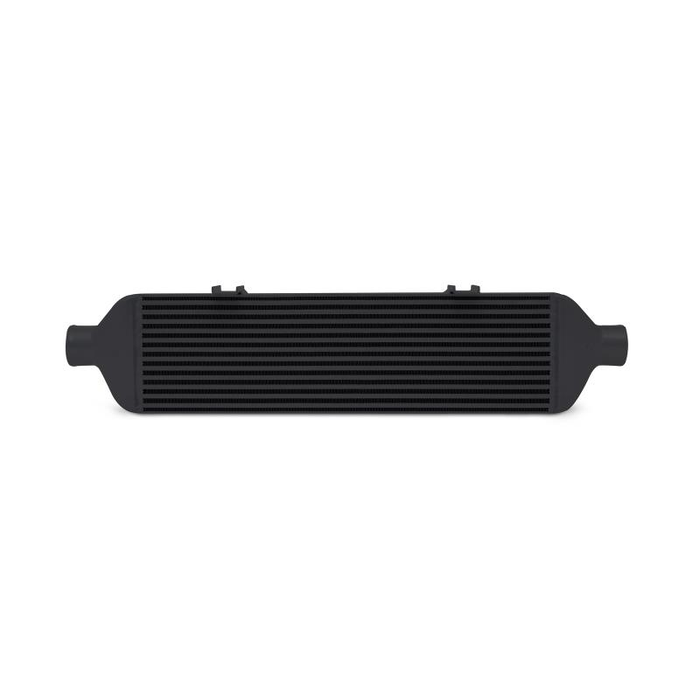

- Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
- CARB EO #: D-759
- Mishimoto Lifetime Warranty

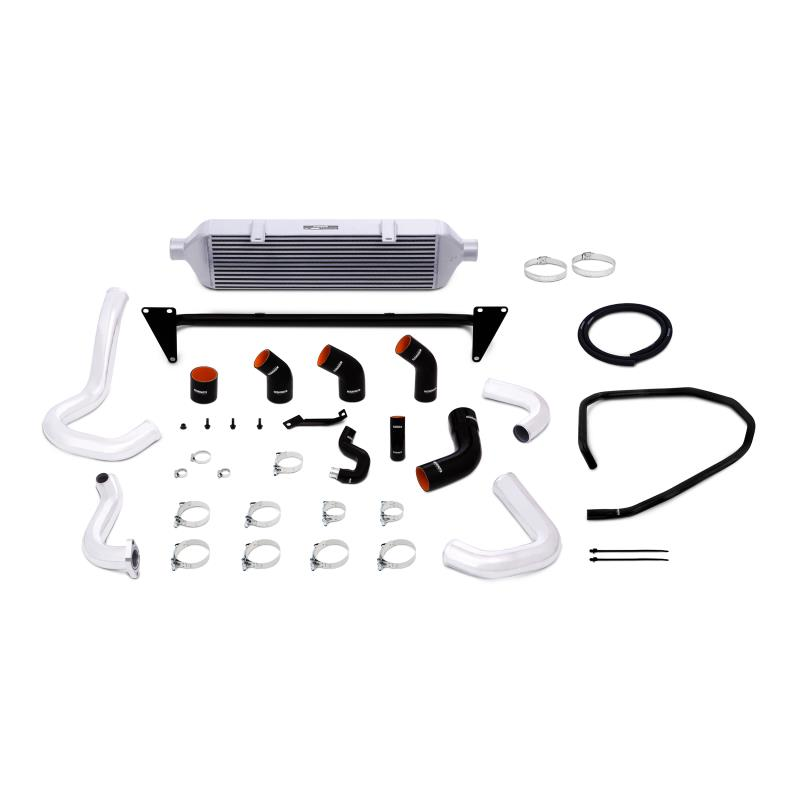

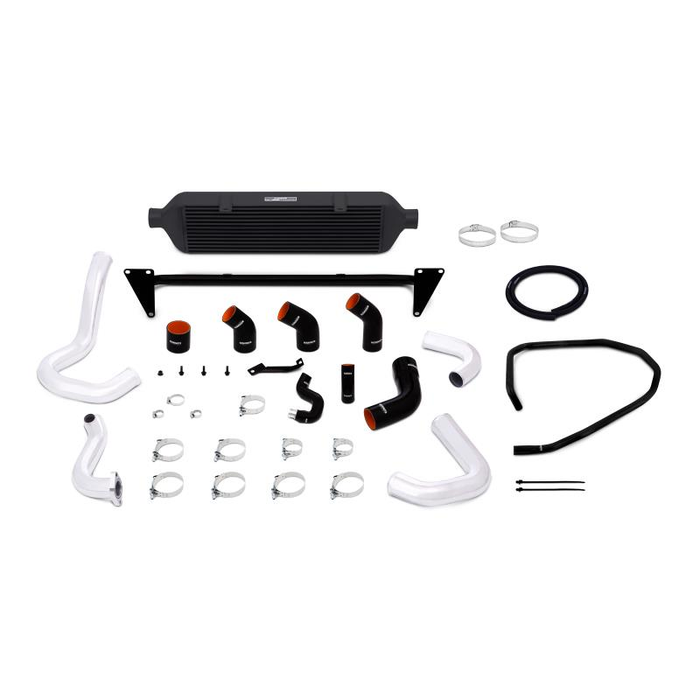

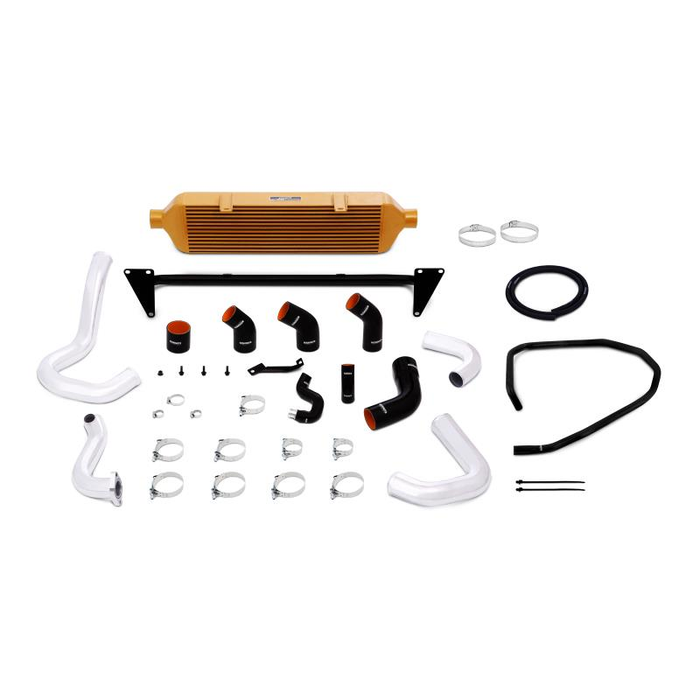

Purchase Includes:
- (1) Bar-and-Plate Intercooler
- (1) Steel Crash Bar w/Mounting Hardware
- (2) Hot-Side Intercooler Pipes
- (2) Cold-Side Intercooler Pipes
- (1) Air Intake Bracket
- (1) 2.25" 45° Coupler
- (1) 2.25" to 2.75" 45° Transition Coupler
- (1) 2.5" to 2.75" 55° Transition Coupler
- (1) 2.5" to 2.75" 65° Transition Coupler
- (1) 3.00" Straight Coupler
- (1) BPV Recirculation Hose
- (1) BPV Vacuum Hose
- (1) 30-45mm Worm Gear Clamp
- (2) 1.75" T-Bolt Clamps
- (3) 2.5" T-Bolt Clamps
- (2) 2.75" T-Bolt Clamps
- (5) 3" T-Bolt Clamps
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Make | Subaru |
| Engine Codes | FA20DIT |
| Chassis Codes | VA |
| Fits | 2015+ Subaru WRX |
Product Specifications:
| Installation Torque Specs | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |
| Silicone Couplers | (1) 2.25" 45° Coupler (1) 2.25" to 2.75" 45° Transition Coupler (1) 2.5" to 2.75" 55° Transition Coupler (1) 2.5" to 2.75" 65° Transition Coupler (1) 2.75" Straight Coupler |
| Pipe Diameter | Hot-Side: 2.25" Cold-Side: 2.5"& 2.75" |
| Constant Tension T-Bolt Clamps Specs | (2) 1.75" T-Bolt Clamps (3) 2.5" T-Bolt Clamps (2) 2.75" T-Bolt Clamps (5) 3" T-Bolt Clamps |
| Core Thickness | 3.5" |
| Cold-Side Intercooler Pipe Specs | –Made from Polished Mandrel-Bent Aluminum –2.5" & 2.75" I.D. Pipes –Includes Upper and Lower Intercooler Pipes |
| Hot-Side Intercooler Pipe Specs | –Made from Polished Mandrel-Bent Aluminum –2.25" I.D. –Hot-Side has CNC-Machined Flange for a Leak Free Connection to Turbo –Includes Two Lower Intercooler Pipes |
| Coating | Powder Coated |
| Tank Wall Thickness | 3.5mm |
| Max Rec. PSI | 30 psi |
| Outlet | 2.75" |
| Core Length | 28" |
| Core Height | 8.05" |
| Core Width | 3.5" |
| Inlet | 2.45" |
| Core Size | 28" x 8.05" x 3.5" |
| Overall Width | 5.4" |
| Overall Height | 8.6" |
| Overall Length | 37.7" |
| Construction | Bar-and-Plate |
| Max Rec HP | 600 whp |
| Pipe Material | Aluminum |
