Radium Distribution Block, 3 Into 1
Buy now pay later,no extra cost!
Payments from $10.03 with

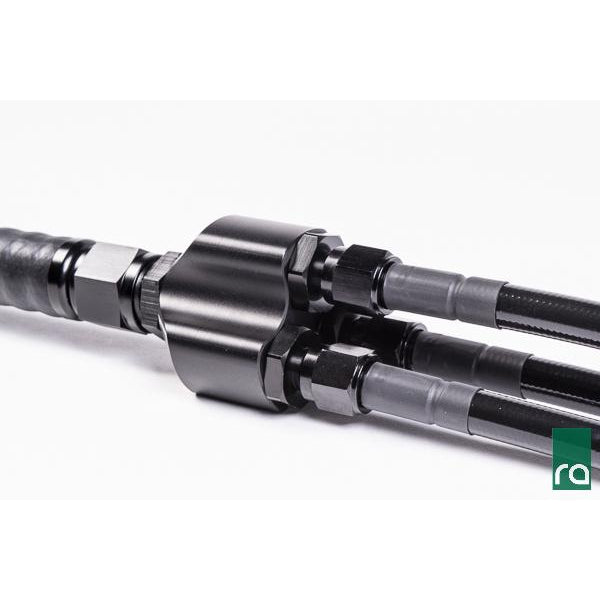

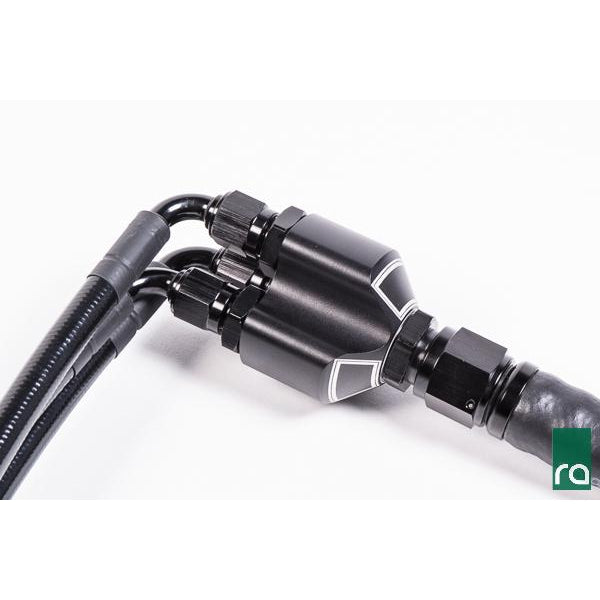

This CNC machined 6061 aluminum fuel distribution block insures the most direct path for unrestricted flow. The distribution block features three 8AN ORB female ports and one opposing 10AN ORB female port. Laser engraved with a bright-dipped black anodized surface finish for corrosion resistance, it can be used for multiple fluids including: alcohol (ethanol/methanol), gasoline, coolant, water, air, oil, etc.
Individual adapter fittings for the -10AN ORB female port can be found here: -10AN ORB Adapter Fittings
Individual adapter fittings for the -8AN ORB female ports can be found here: -8AN ORB Adapter Fittings

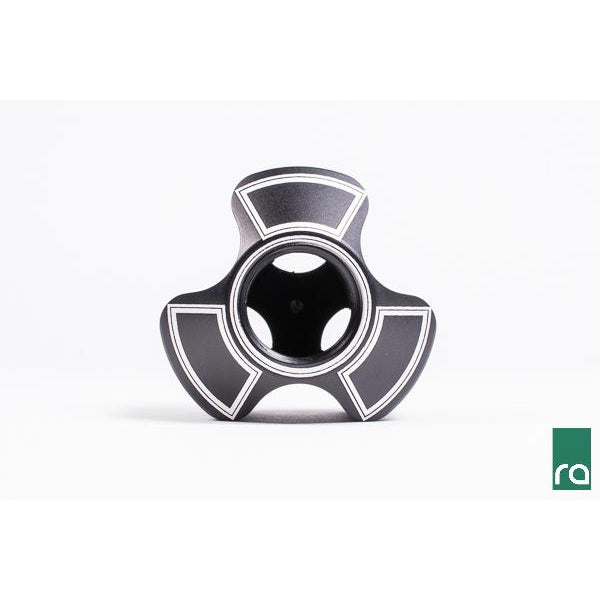

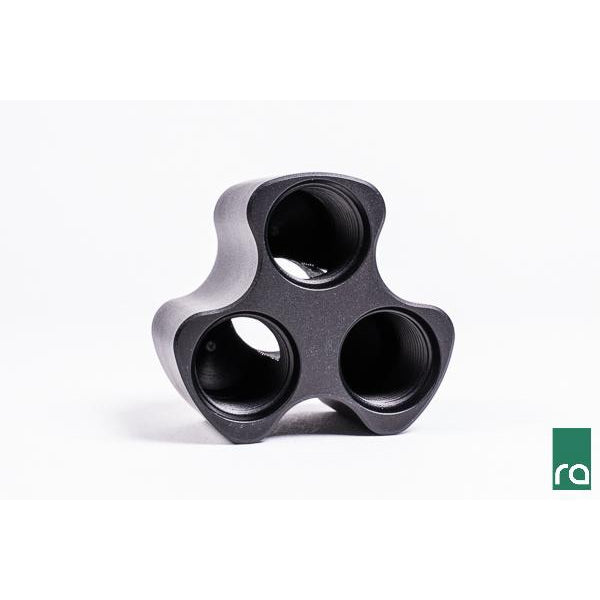

14-0289 Distribution Block
This part number is for the distribution block only as shown in picture below. Adapter fittings must be purchased separately.
20-0237 Distribution Block With Fittings
This kit includes the distribution block and enough adapter fittings for any 6AN-8AN-10AN combination, described below.
- 8AN ORB to 6AN Male Fitting (x3)
- 8AN ORB to 8AN Male Fitting (x3)
- 10AN ORB to 8AN Male Fitting (x1)
- 10AN ORB to 10AN Male Fitting (x1)
