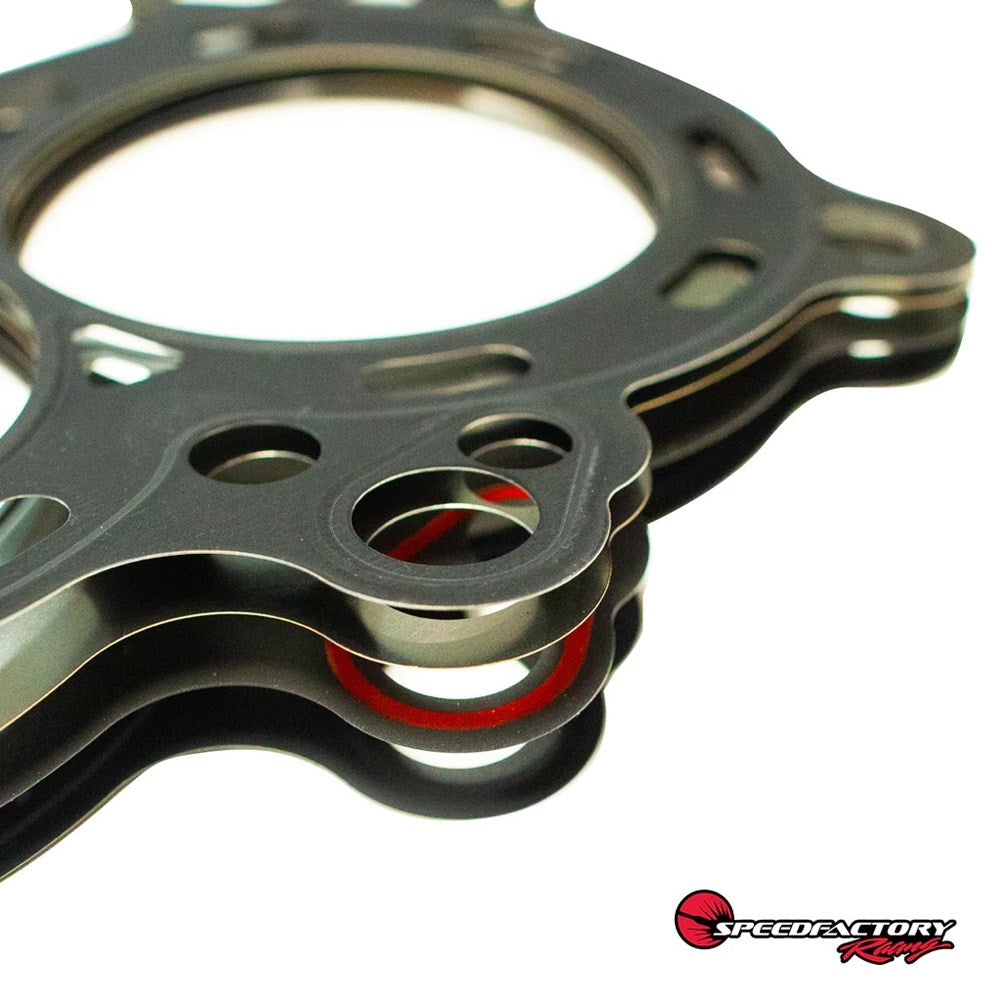

SpeedFactory Racing High Performance MLSS-HP Head Gaskets for Honda/Acura K-Series Engines
Buy now pay later,no extra cost!
Payments from $22.11 with
Fits: Honda/Acura K20/K24 engines with PPA/PRB/PNC or RBC/RBB/RAA Head
This is a 0.040 thickness head gasket
SpeedFactory Racing is proud to release our line of high-performance Honda/Acura K-Series MLS head gaskets!
These MLS gaskets have been purpose built to provide an excellent seal on high compression/nitrous/turbocharged engines and when used in combination with our Extreme Duty L19 Head Stud Kit have been real world tested to 1000hp with excellent results (and to 1400hp+ with stainless wire O-ringed sleeved blocks). Note that this is not a stopper ring type design.
We have found over years of trying many different MLS gasket designs that once you reach an output level that eclipses what a non-stopper ring MLS gasket will reliably hold, adding a stopper ring only provides limited improvement and O-ringing the cylinder head or block becomes a necessity for a reliable combustion seal. The stopper ring becomes more of a hindrance to O-ring placement and function at that point and we have had much better success running O-rings with a non-stopper design.
The 0.040” thickness makes up for cylinder head and block surfacing vs the OEM 0.028” thickness and utilizes a 4-layer design with specialized embossments that increase active combustion sealing height, ideal for high output engines that experience high levels of head lift/movement. Our design also utilizes a unique internal silicone bead on the oiling passages for improved sealing.
Another unique feature is enlarged head stud holes for compatibility with 1/2” head studs (the 2 locating dowel holes remain OEM sized and are the only holes that need to be modified if running 1/2" head studs, greatly reducing the time & effort required during engine assembly).We have been reliably running these gaskets on wet deck Bullet Billet blocks which utilize 1/2" head studs at 1400+whp.
FITMENT:
• Honda/Acura K20/K24 engines with PPA/PRB/PNC or RBC/RBB/RAA Head
• Available Sizes:
• 86.50mm (Used for 86.00-86.75mm/3.415” maximum bore)
• 87.50mm (Used for 87.00-87.75mm/3.454” maximum bore)
• 88.50mm (Used for 88.00-88.75mm/3.494” maximum bore)
• 0.040”/1.016mm thickness
FEATURES:
• MLSS-HP (Multiple Layer Stainless Steel + Silicone Bead) Head Gasket optimized for high performance use
• 4-layer MLS design with specialized embossment increases active combustion sealing height, ideal for forced induction engines that experience high levels of head lift/movement.
• Unique internal silicone elastomeric sealing bead around oiling passages for improved fluid sealing.
• High performance elastomeric coating to ensure the best possible seal by compensating for surface irregularities.
• 1/2" head stud compatible.
• OE quality, OE certified manufacturer (ISO 9001, ISO/TS16949, ISO 14001 certified).
