STM Tuned Sealed Engine Oil Catch Can for Evo X Plastic Valve Cover
Buy now pay later,no extra cost!
Payments from $116.27 with
"Allow 7-14 Days For Parts Manufacture/Order Processing Before Shipping"

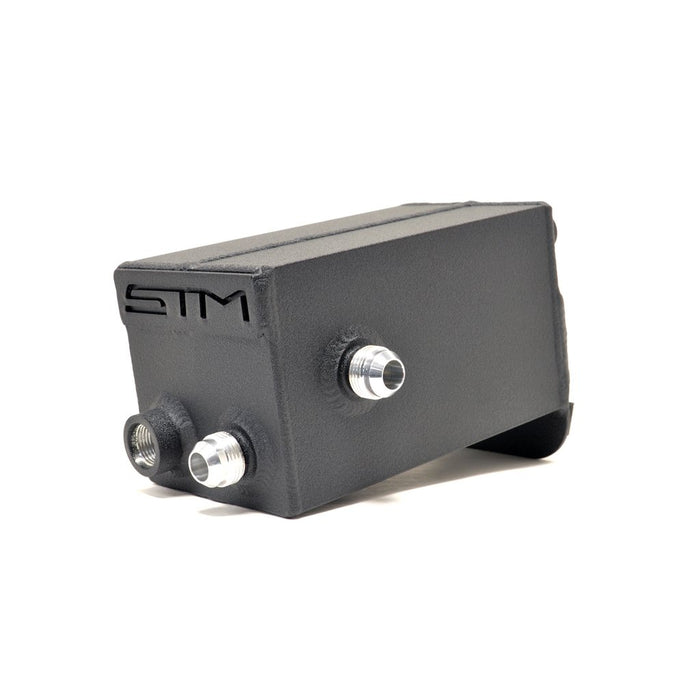

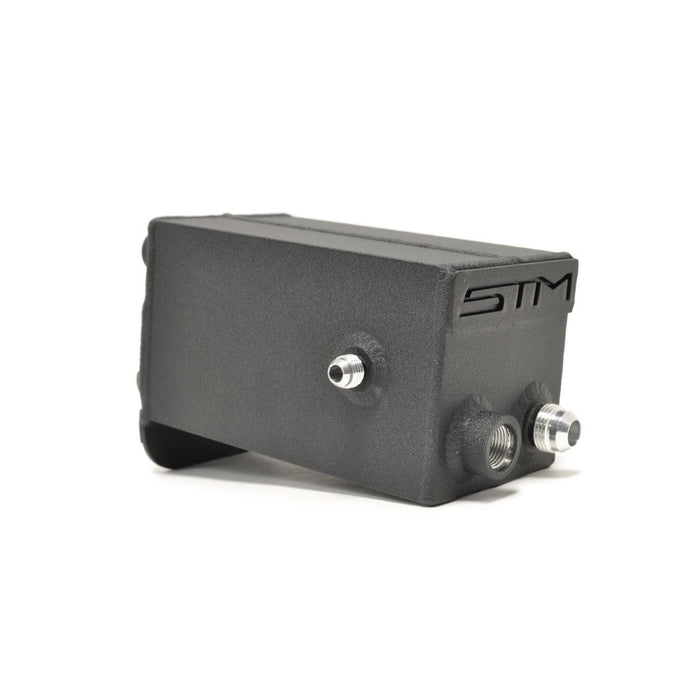

The STM Sealed Engine Oil Catch Can for the Evo X plastic valve cover allows you to retain your stock PCV system and is designed with two chambers to keep the air separately contained. Includes everything you will need for a direct install. A sealed system will also help keep oil out of your intercooler piping. No cutting or drilling is necessary. The can mounts cleanly on the frame rail using an existing bolt hole.
Features:
- Tig Welded Aluminum Body
- Wrinkle Black Powdercoat
- Attaches to the Frame Rail
- Black Aluminum Fittings
- Braided Nylon Hose
- Rubber Line
- Brass Drain Fittings
- Mounting Hardware
- Cushion for Frame Rail Mounting
- Clean and Easy Install
Vehicle Fitment:
- 2008-2015 Mitsubishi Lancer Evolution X
- Fits with Plastic Valve Cover
More Info:

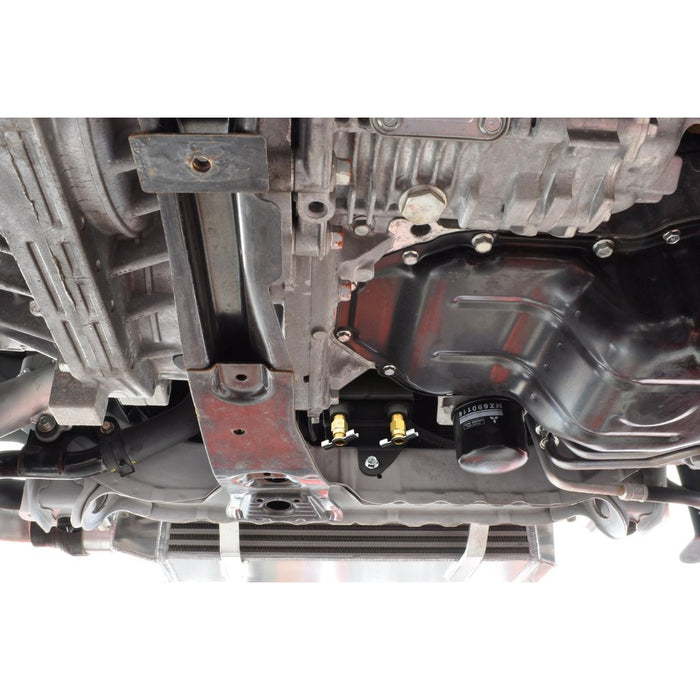

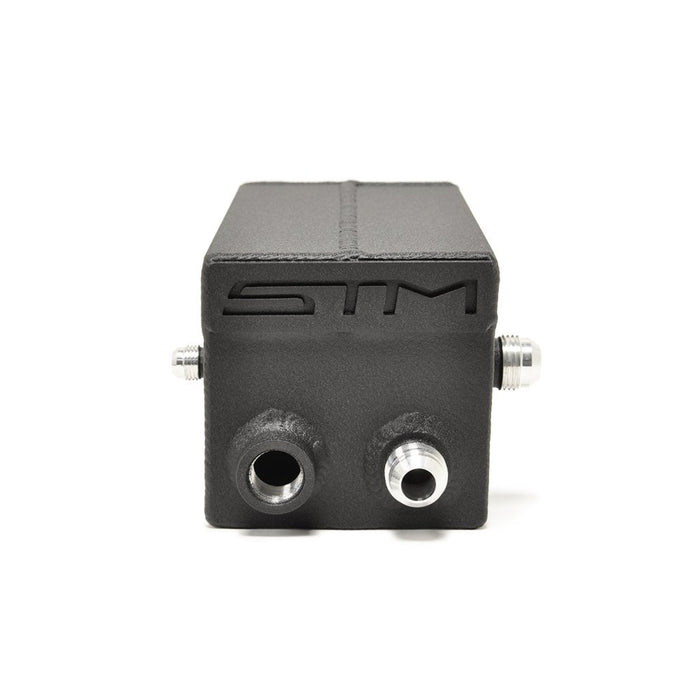

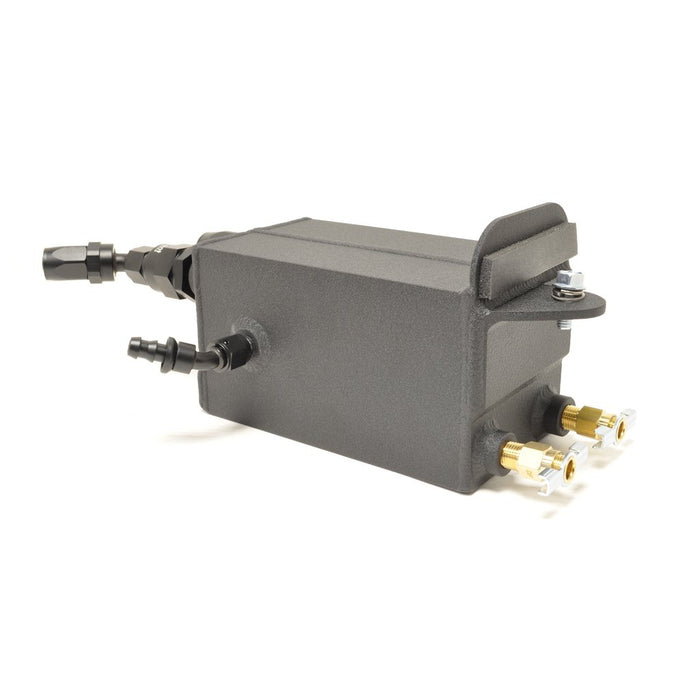

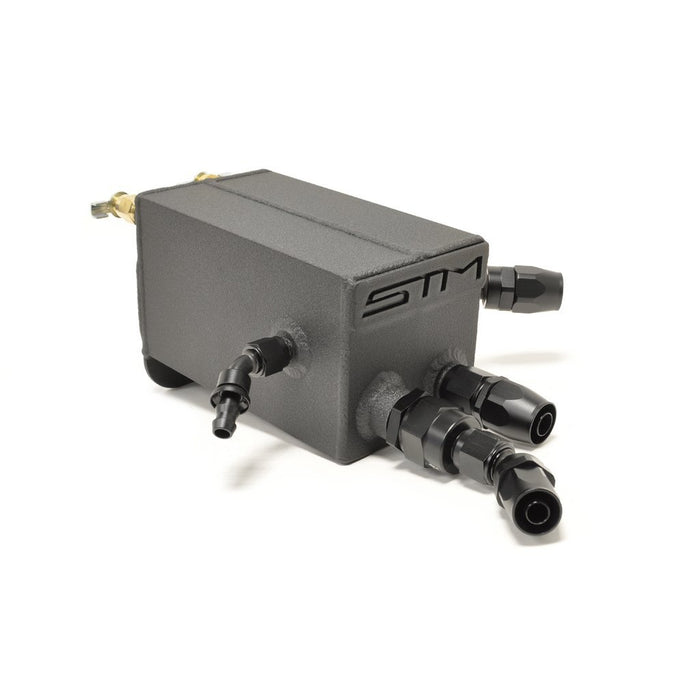

The STM kit places the catchcan neatly out of the way on the lower radiator support, also allowing easy drain access from under the car. Each chamber on the catchcan has its own drain port. The aluminum body is fully fabricated in-house at STM then finished with a durable, wrinkle black powdercoat.

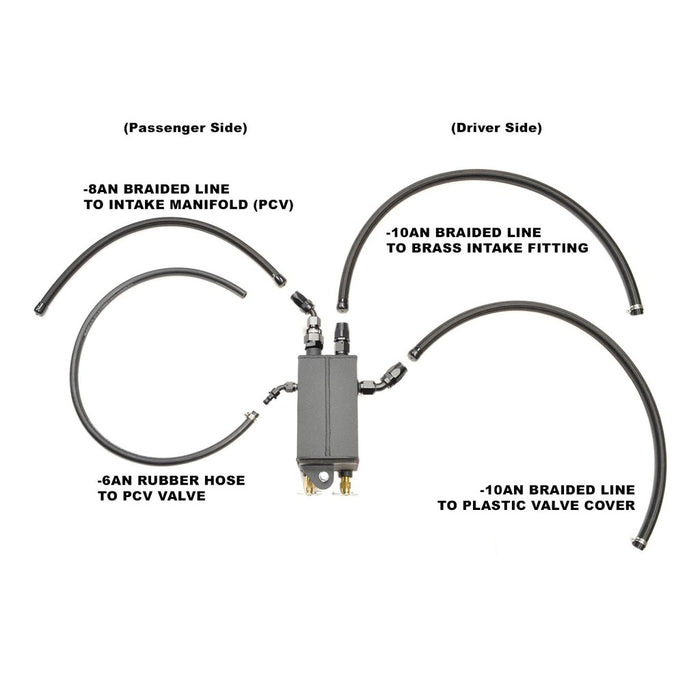

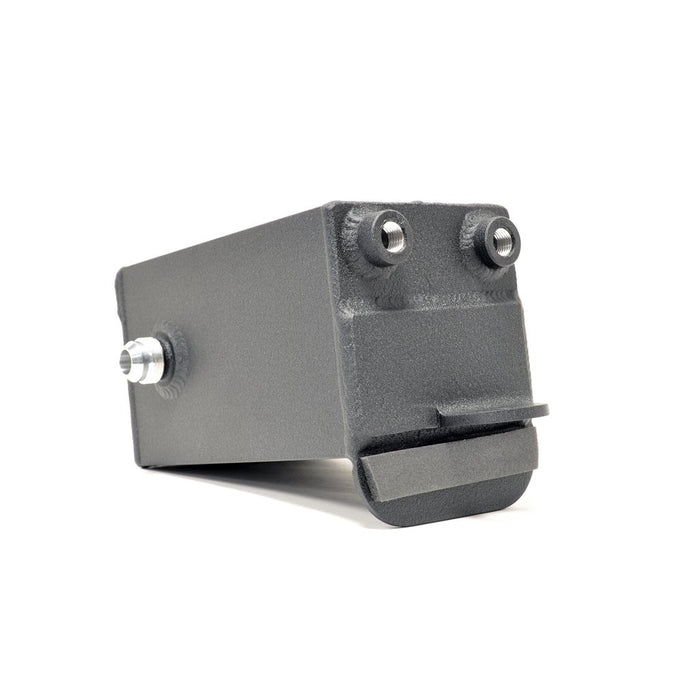

Includes high quality, black fittings and durable, black nylon hose that will not scratch your paint like the stainless braided line. A soft buffer is included for the bottom of the catchcan to for stability on the frame rail and to prevent scratching. The line going to the intake manifold includes a check valve.
Recommended to be installed with the STM Evo X Bellmouth Intake.
STM Products are made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

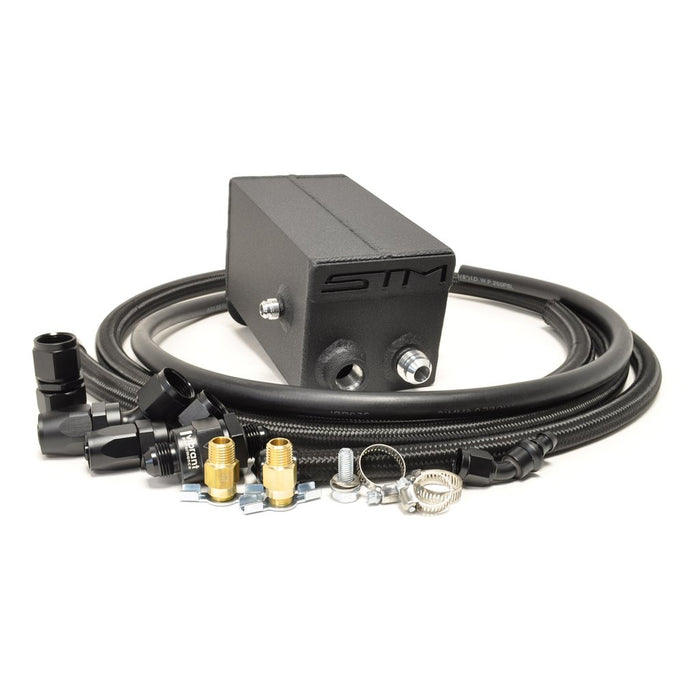

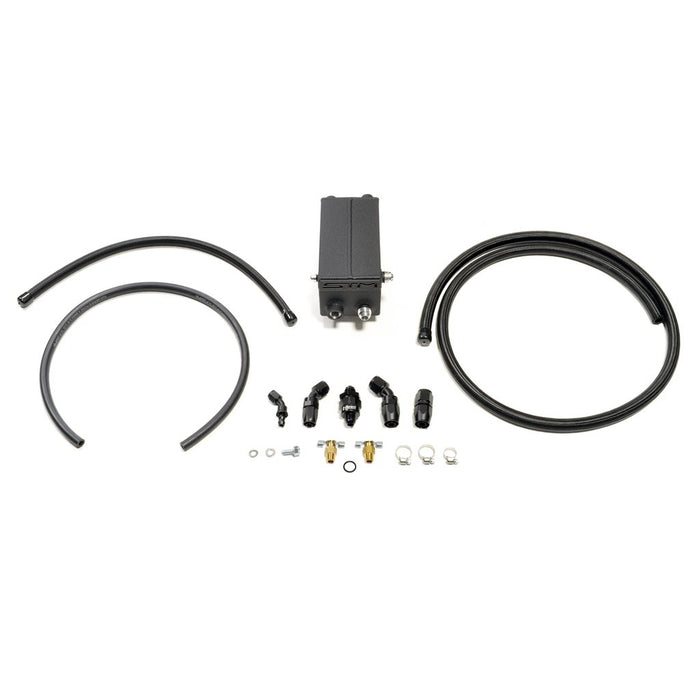

Includes: (For Plastic Valve Cover)
- STM Catchcan with Adhesive Buffer
- Hose Braided -10AN 6 Foot
- Hose Braided -8AN 2 Foot (11958)
- Hose Rubber Pushlock -6AN 3 Foot
- Fitting Pushlock 45° -6AN (22406)
- itting Swivel 45° -8AN (21408)

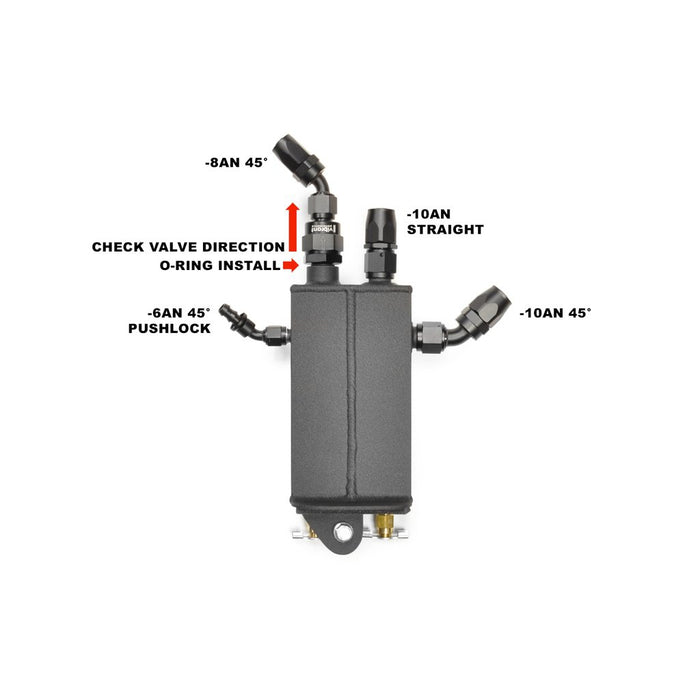

- Check Valve -8AN (11190)
- Fitting Swivel 45° -10AN (21410)
- Fitting Straight -10AN (21010)
- O-Ring -8AN (15622)
- Brass Drain Fittings 1/4"
- Hose Clamp (Big) (62003)
- Hose Clamp (Smal) (62002)
- M8 x 20 Bolt
- M8 Flat Washer
- M8 Lock Washer
