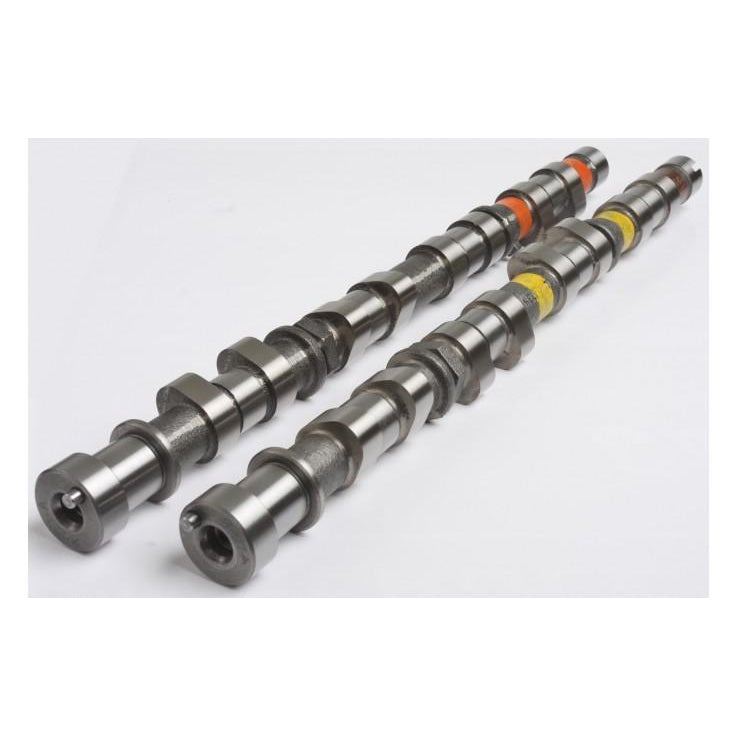

Kelford Cams 1-TX272 Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set
by Kelford Cams
$1,079.85 NZD
SKU KC1-TX272
Buy now pay later,no extra cost!
Payments from $107.98 with
Enjoy now. Pay Later. Interest free. Learn More
Note: Please check availability with us before ordering.
272 Degree advertised duration, 11.00mm lift cams
Additional Information:
Cams for the best all round performance. These suit 400-600HP racing engines.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 VR4 EVO1-3 | 1-TX272 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.36mm | Exhaust: | 6.36mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 226 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 46 BBDC | ||
| IVC: | 40 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 1.52mm | Exhaust: | 1.00 | ||
