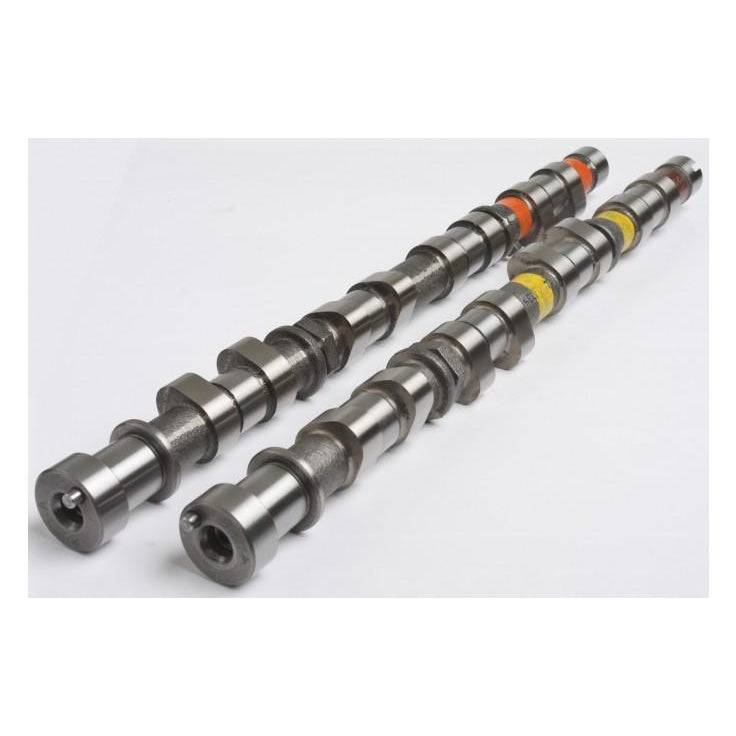

Kelford Cams 1-TX272-L Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
272 Degree advertised duration, 10.00mm lift cams.
Additional Information:
272 Degree advertised duration, 10.00mm lift cams. These 272 degree high performance camshafts are designed with lower lift for use with the stock valve springs.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-TX272-L | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 5.78mm | Exhaust: | 5.78mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 10.00mm | Exhaust: | 10.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 226 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 48 BBDC | ||
IVC: | 40 ABDC | EVC: | 2 BTDC | ||||
Suggested Centre Lines: | Intake: | 107 | Exhaust: | 115 | |||
VALVE | Lift @ TDC | Intake: | 1.83mm | Exhaust: | 1.12 |
