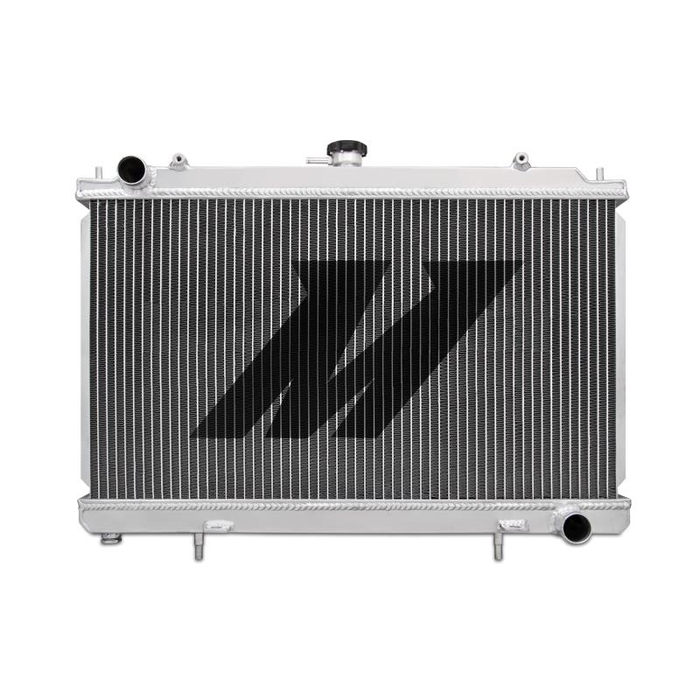

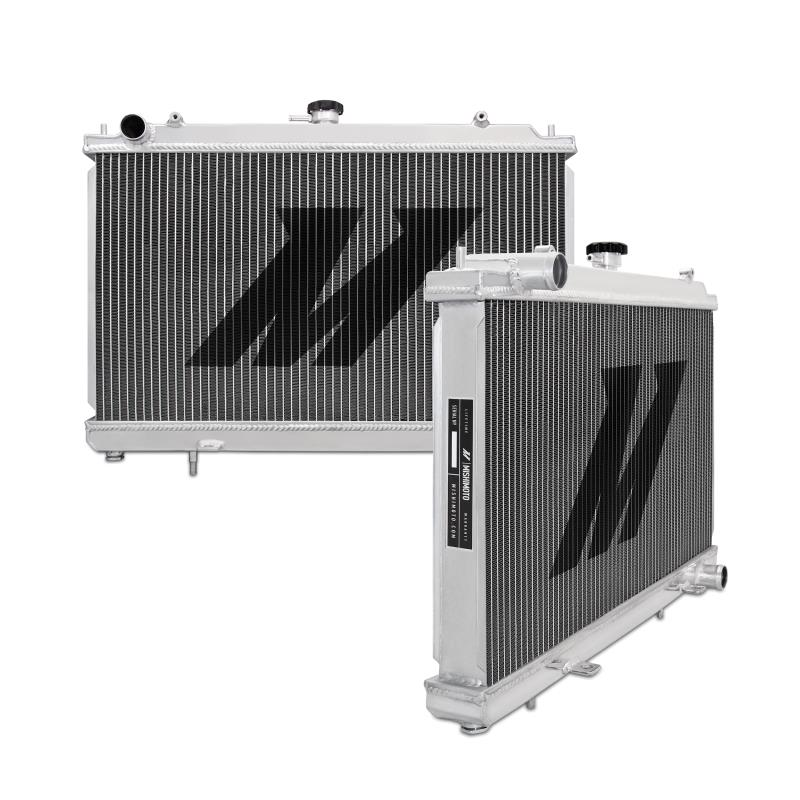

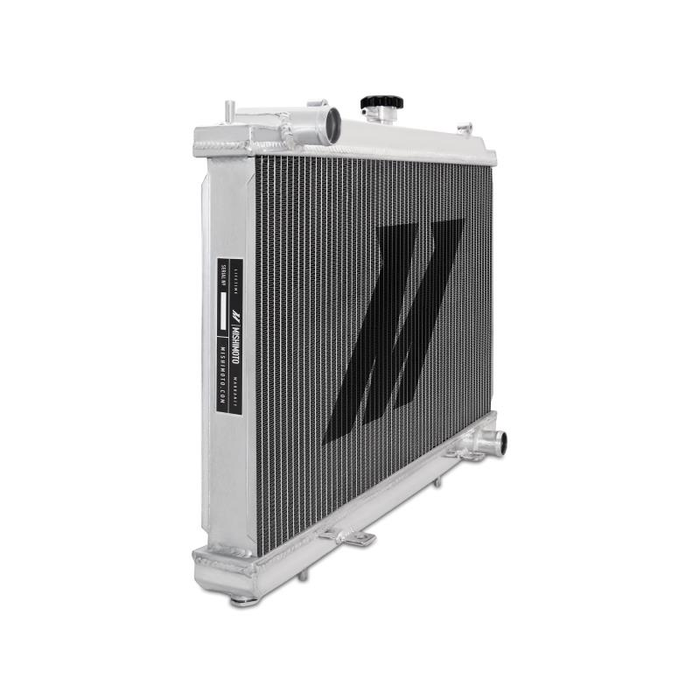

Mishimoto Performance X-Line Aluminum Radiator Nissan 240SX 1995-1998 SR20 Engine
Buy now pay later,no extra cost!
Payments from $99.79 with
The Mishimoto X-Line Aluminum Radiator for the Nissan 240SX is designed and engineered with three rows to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating. The Mishimoto Nissan 240SX aluminum radiator features a lightweight triple core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Nissan 240SX radiator.This radiator comes with a high pressure 1.3 bar Mishimoto radiator cap and, as with every Mishimoto aluminum radiator, this radiator includes the Mishimoto Lifetime Warranty. The radiator works perfectly with the Mishimoto Nissan 240SX Lightweight Aluminum Fan Shroud.*Also fits the Nissan S15
Features:
- Premium radiator has 3-row core for improved strength and reliability.
- 16% thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency.
- Greater density of rows for higher cooling capacity
- More contact points for additional heat transfer.
- 3-row design creates more air turbulence, maximizing cooling efficiency.
- Includes magnetic drain plug

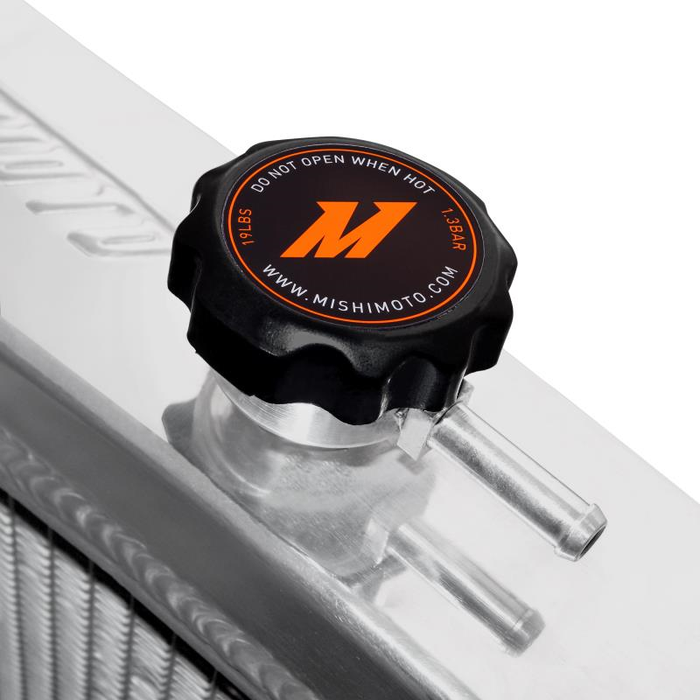

- Includes a 1.3 Bar High-Pressure Radiator Cap
- Lifetime warranty
Purchase Includes:
- Mishimoto Radiator
- Mishimoto Radiator Cap
- Magnetic Drain Plug
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Engine Codes | SR20DESR20DET |
| Chassis Codes | S14 |
| Fits | 1997 Nissan 240sx LE 1995-1997 Nissan 240sx SE |
Product Specifications:
| Material | Aluminum |
| Overall Height | 26.4" |
| Drain Plug Thread Size | M10 x 1.25 |
| Overall Length | 20" |
| Fill Neck Thickness | 0.12" |
| Tank Wall Thickness | 0.08" |
| Outlet | 1.48" |
| Rows | 3 |
| Inlet | 1.48" |
| Dual Pass | False |
| Overall Width | 2.5" |
| Core Length | 14.17" |
| Core Height | 25.29" |
| Core Thickness | 2" |
| Fill Neck | 1.22" |
| Overall Length (in) | 20.00 |
| Overall Height (in) | 26.40 |
| Overall Width (in) | 2.50 |
| Rows | 3 |
