Aeromotive 40-m Stainless Element ORB-10 Filter Housings
by Aeromotive
$116.11 NZD
SKU AER12635
Buy now pay later,no extra cost!
Payments from $11.61 with
Enjoy now. Pay Later. Interest free. Learn More

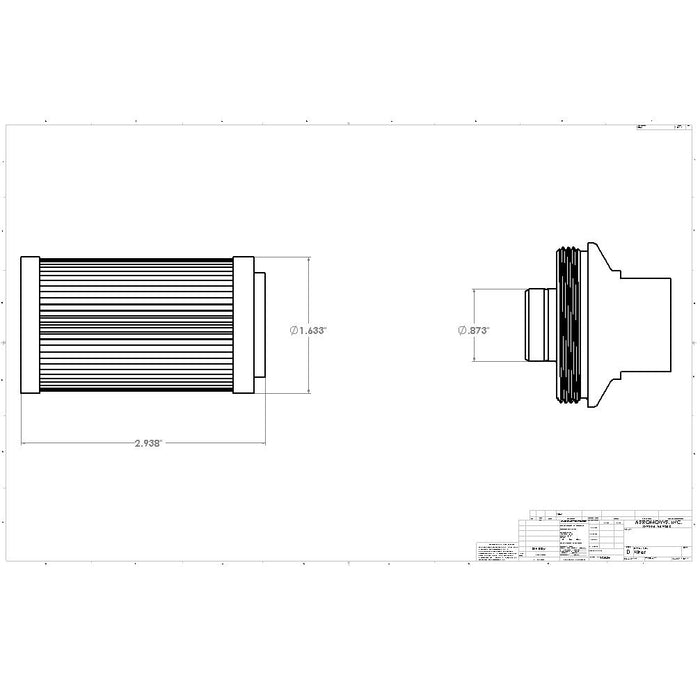

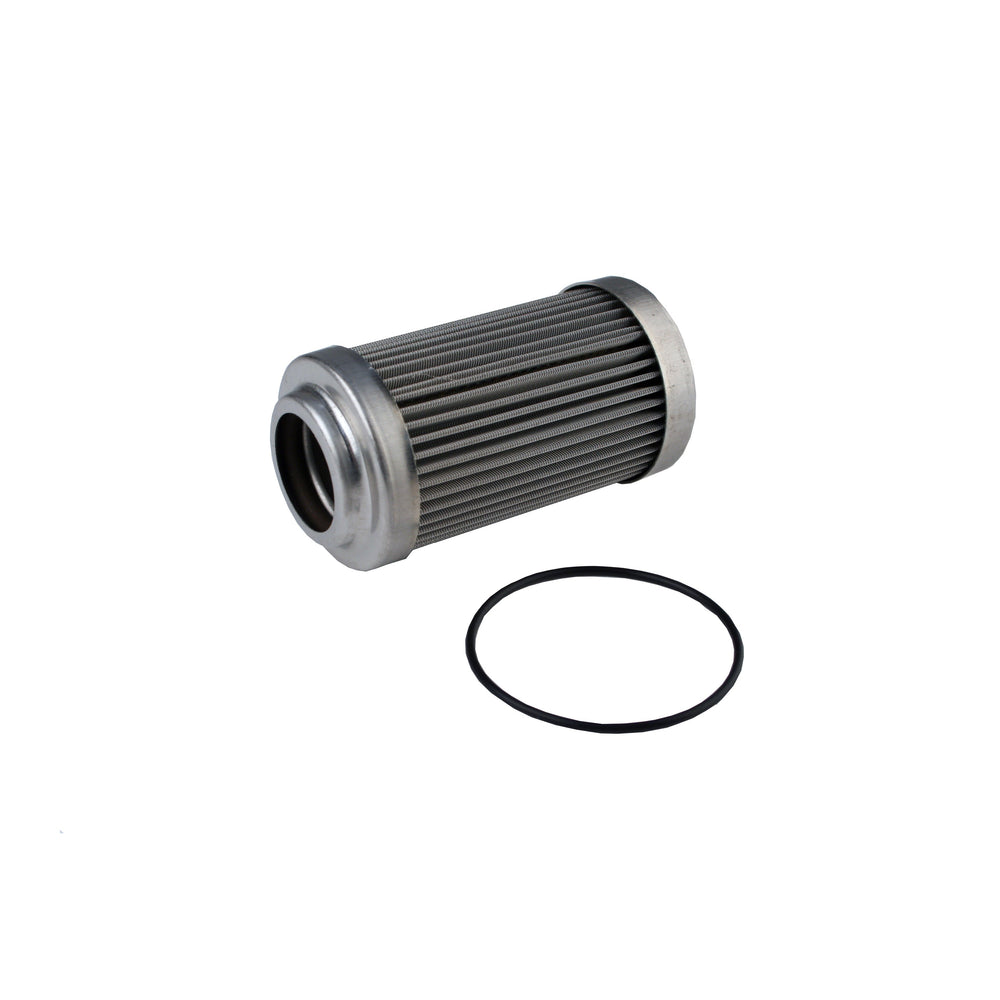

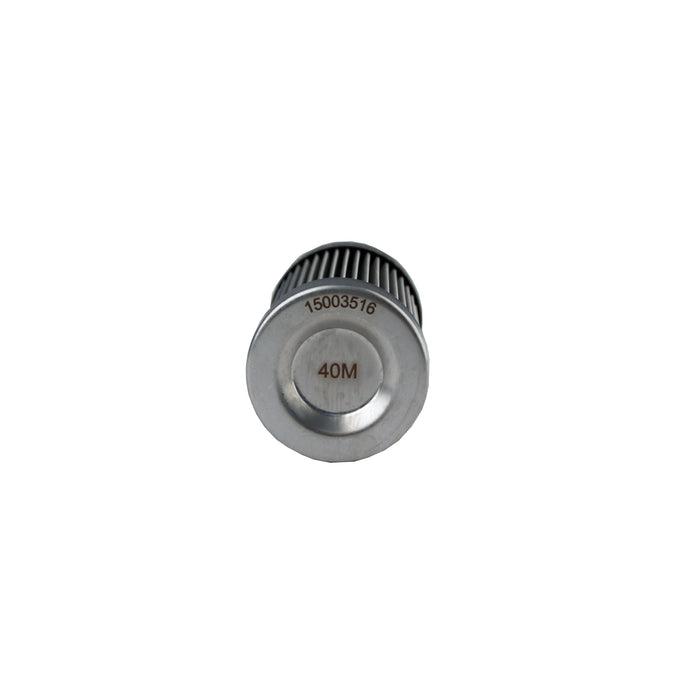

P/N 12635 40-M Stainless Replacement Element

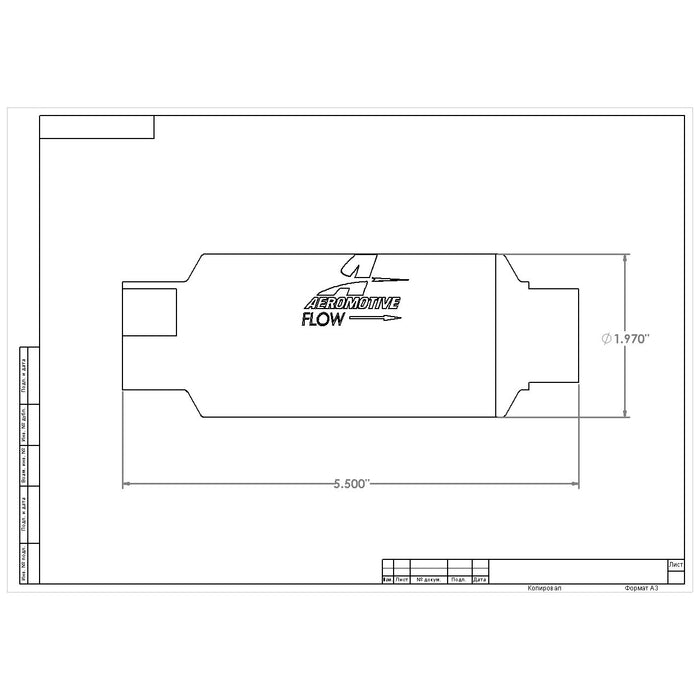

Service element for Aeromotive Billet, in-line filters Fits all 2″ OD x 5-1/2″ long ORB-10 filter housings. Includes new housing o-ring to reseal the filter assembly.
Suitable as a post-filter for electric and mechanical fuel pumps up to 16 GPM with gasoline, diesel, ethanol and methanol fuels.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
- Approved for use in alcohol fuels including ethanol and methanol.
- Over 60-sq. inches of element surface area supports high flow while providing good service life.
- Flow capacity of up to 900 GPH (15.0 GPM) with less than 1-PSI pressure drop.
- Supports up to 8,300 Flywheel HP, Forced Induction, on gasoline.
- Supports up to 6,000 Flywheel HP, Forced Induction on Ethanol.
- Supports up to 2,800 Flywheel HP, Forced Induction on Methanol.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Ideal as a post pump filter with gasoline, ethanol and methanol burning engines using medium to large electric pumps and 6 and 12 Series (belt and hex driven) mechanical fuel pumps.

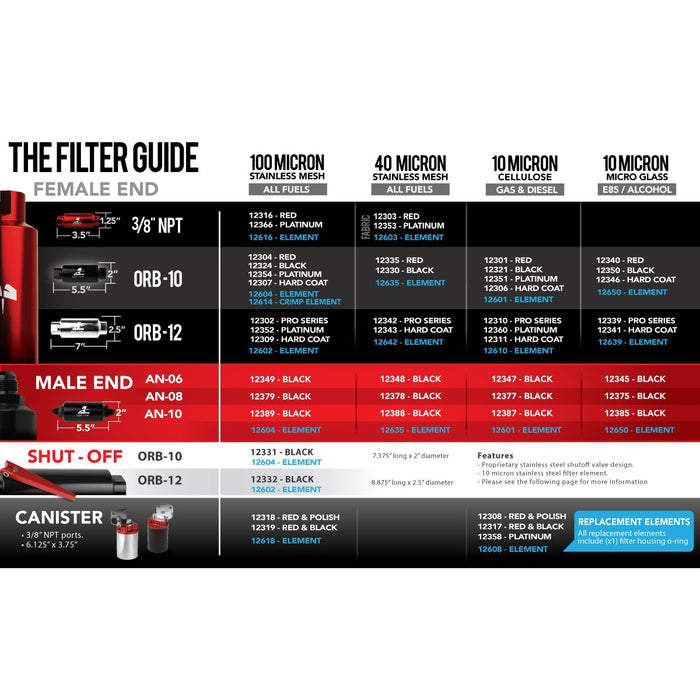

If you wish to change the filter in your housing from a P/N 12635 40-micron stainless to an element with a different micron rating, you may choose one of the following options:
