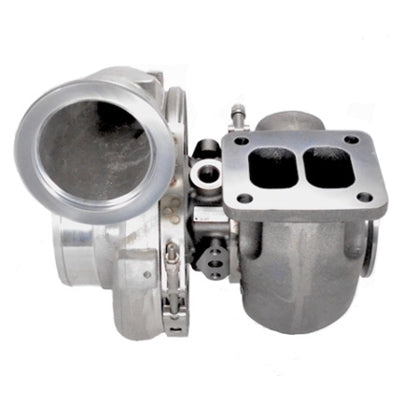

ATP Turbo Ball Bearing Turbo - Garrett GT4294R/GT4202R (aka GT42R / GT42RS) w/ Turbo Unit and Housing Options
by ATP Turbo
$5,247.96 NZD
SKU GRT-TBO-021-GT4-AR
Buy now pay later,no extra cost!
Payments from $524.79 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett dual ball bearing GT4294R (aka GT42R) and GT4202R (aka GT42RS) turbochargers. The GT4294R (GT42R) is capable of 850hp and the GT4202R (GT42RS) is capable of 1,000hp.
Available in T4 (divided or undivided), T6 divided, or V-band Inlet turbine housings.
This unit is usually in stock and ships withing 1-2 days.
PRODUCT SPECIFICATIONS:
- Compressor Wheel: GT4294R: 94mm w/ 56 trim (70.3mm inducer) GT4202R: 102mm w/ 53 trim (74.7mm inducer)
- Compressor Housing: .60 A/R
- Turbine Wheel: 82mm w/84 trim (75.1mm exducer)
TURBINE HOUSING OPTIONS:
- T4 Divided Inlet and 4" V-Band Outlet: 1.01, 1.15, 1.28, or 1.44 A/R
- T6 Divided Inlet and 5" V-Band Outlet: 1.01 or 1.15 A/R
- T4 Undivided Inlet and 4" V-Band Outlet: 1.15, 1.28, or 1.44 A/R
- V-Band Inlet and 4" V-Band Outlet: 1.15, 1.28, or 1.44 A/R
- TiAL V-Band Inlet and Outlet (+$400 additional): 1.02, 1.16, or 1.30 A/R
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant (water) banjo kit: Product Code: ATP-FTG-006
- Oil feed flange: (ATP-FLA-008) or Flange with built-in -4AN restrictor: (ATP-FLA-020)
- Oil feed flange gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-009
- Oil drain gasket: Product Code: GRT-GSK-007
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- Compressor Housing Outlet Clamp & Flange Set: Product Code: ATP-FLS-05
NOTE: Alternate coolant and oil fittings and flanges are available.
TURBINE HOUSING INSTALLATION COMPONENTS:
GT4294R (GT42R) COMPRESSOR AND TURBINE MAPS:
GT4202R (GT42RS) COMPRESSOR AND TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- 451888-5011S (GT4202R)
- 451888-5009S (GT4294R)
