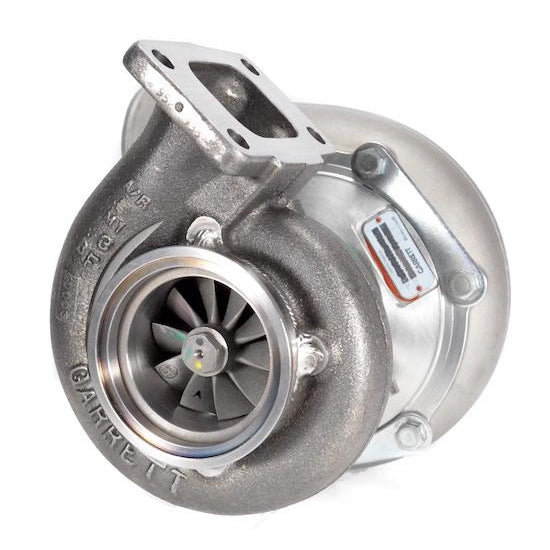

ATP Turbo Garrett GTW3684JB (aka GTW6262JB) - 62mm JB Turbo, .82 A/R, T3 Inlet, Welded GT 3" V-Band Outlet
by ATP Turbo
$2,688.14 NZD
SKU GRT-TBO-911
Buy now pay later,no extra cost!
Payments from $268.81 with
Enjoy now. Pay Later. Interest free. Learn More
GTW3684JB (aka GTW6262JB) 62mm journal bearing turbo. 750HP potential flow. Includes .82 A/R, T3 Undivided Inlet, Welded GT 3" V-Band Outlet Turbine Housing.
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 62.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 54
* Turbine Wheel Inducer: 71.0mm
* Turbine Wheel Exducer: 61.9mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
OIL FITTINGS, FLANGES, AND COMPONENTS:
* Oil feed flange: Product Code: ATP-FLA-041
* Oil feed gasket: Product Code: ATP-GSK-026
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034
TURBINE HOUSING COMPONENTS:
T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
T3 Inlet Gasket: Product Code:GRT-GSK-005
GT 3" V-Band Flange (for Downpipe): Product Code:ATP-FLS-246
3" V-Band Clamp: Product Code:CLC-CLA-048
APPLICABLE GARRETT PART NUMBERS:
715582-5007
841297-5002S
