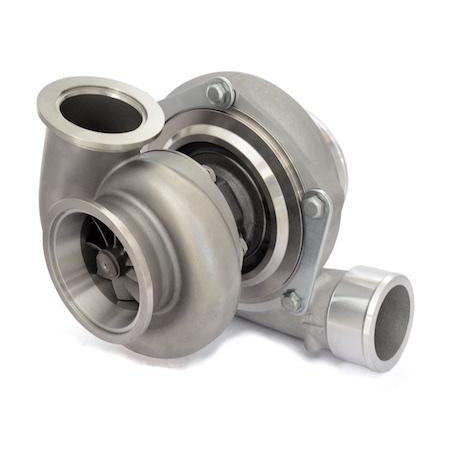

ATP Turbo Garrett GTW3884JB (aka GTW6765JB) - 67mm JB Turbo + SS V-Band Turbine Hsg .82AR (TiAL Compatible)
by ATP Turbo
$3,179.27 NZD
SKU GRT-TBO-617
Buy now pay later,no extra cost!
Payments from $317.92 with
Enjoy now. Pay Later. Interest free. Learn More
GTW3884JB (aka GTW6765JB) 67mm journal bearing turbo. 950HP potential flow. Includes Stainless Steel V-Band Inlet and V-Band Outlet .82 A/R turbine housing. Turbine housing is compatible and mounts to existing TiAL flanged turbo manifolds and down-pipes.
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 67.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 64
* Turbine Wheel Inducer: 74.2mm
* Turbine Wheel Exducer: 64.6mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
OIL FITTINGS, FLANGES, AND COMPONENTS:
* Oil feed flange: Product Code: ATP-FLA-041
* Oil feed gasket: Product Code: ATP-GSK-026
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034
TURBINE HOUSING COMPONENTS:
V-Band Inlet Flange (manifold side) (Product Code: ATP-FLS-093)
V-Band Inlet Clamp (Product Code: CLC-CLA-025)
V-Band Outlet Flange (down-pipe side) (Product Code: ATP-FLS-094)
V-Band Outlet Clamp (Product Code: CLC-CLA-026)
APPLICABLE GARRETT PART NUMBERS:
715582-5010S
841297-5005S
GTW Series - Garrett's Performance solution to the popular 6766 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 67.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 64
* Turbine Wheel Inducer: 74.2mm
* Turbine Wheel Exducer: 64.6mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
OIL FITTINGS, FLANGES, AND COMPONENTS:
* Oil feed flange: Product Code: ATP-FLA-041
* Oil feed gasket: Product Code: ATP-GSK-026
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Bolts: Product Code: MIA-FST-034
TURBINE HOUSING COMPONENTS:
APPLICABLE GARRETT PART NUMBERS:
