ATP Turbo Turbocharger, Garrett GT3071R 2.75" in / 2" out with .63 A/R Audi K24/K26 flanged turbine housing

$2,903.38 NZD
SKU GRT-TBO-J29
Buy now pay later,no extra cost!

Payments from $290.33 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
Stock Status:  Available To Special Order - Check Shipping Details Below

This product is available for special order. You can still purchase this item - read below for more information on our special order freight options.

Special orders are shipped in two steps from our international suppliers to Speed Science HQ , then to you.
(2)(1)
(1) Shipping options:

!! TRANSIT TIMES ONLY !!

DOES NOT INCLUDE ORDER PROCESSING TIME.

STOCK AVAILABILITY WITH SUPPLIER IS NOT GUARANTEED AT TIME OF ORDERING.
.


Air Freight Express.

7-12 Days

Air Freight Consolidated.

15-25 Days

Ocean Freight.

3 to 4 months

Ocean freight orders are shipped in bulk to enable us to provide the best price
possible.

Therefore,
your order may not leave the country of origin for up to 3 months.


(2) Shipping options:

Auckland.
Overnight

North Island.
1-2 days

South Island.
2-3 days

Rural Delivery.
Extra 1-3 days (incl track packs)

Australia - Standard
7-9 days

Australia - Express
4-7 days

Rest of World
10-20 days

Time frames are estimates only and subject to product availability and order processing with supplier.

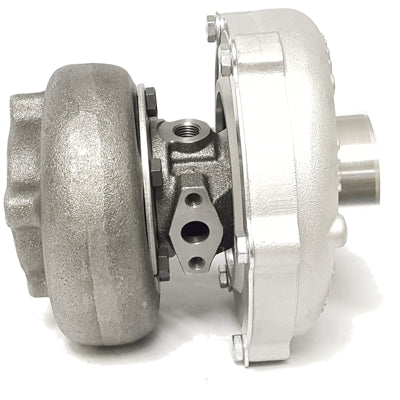

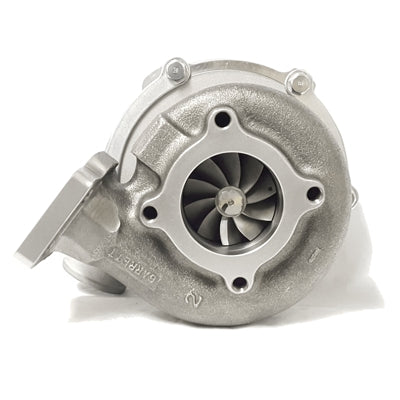

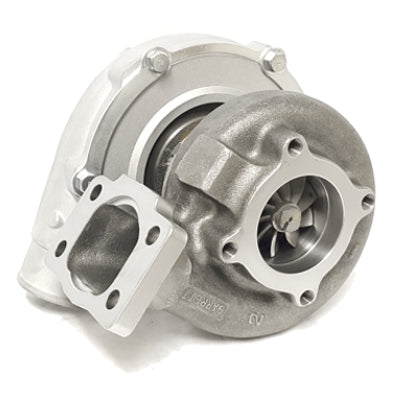

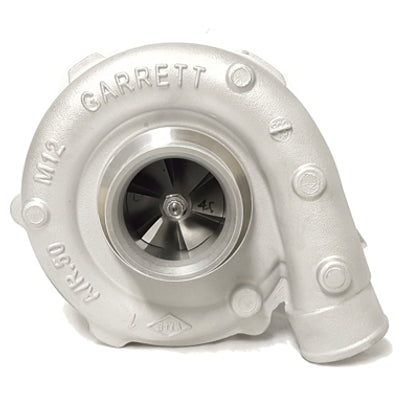

  • Garrett GT3071R 2.75" in / 2" out with .63 A/R Audi K24/K26 flanged turbine housing. Drop-in turbo for the Audi 5 cylinder 2.3L with the K24/K26 flange. 480+HP potential flow.
Product Features:
  • Genuine Garrett GT Aero compressor wheel
  • Genuine Garrett GT Inconel turbine wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 53mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing A/R: 0.50
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings Solutions:

  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
  • Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
  • Oil drain flange: Product Code: ATP-FLA-010
  • Oil drain gasket: Product Code: GRT-GSK-008

Compressor & Turbine Maps:

Applicable Garrett Part Numbers:
  • 836028-5005S
