Hasport EKK 96-00 Civic K-Series Swap Mounts Using The EG/DC2 Subframe
Buy now pay later,no extra cost!
Payments from $133.82 with
Allow 4 weeks for order processing/manufacturing for all special order Hasport products
Performance mount kit for K-series engine swaps into the 96-00 Civic (EK) using an EG/DC2 subframe. This kit uses Hasport’s dual height mount system and patented flip mount. This means whether you are using a K20 or K24 engine the head remains in the same location. Headers, intakes and turbo kits will fit the same no matter which engine you choose. This mount kit makes swapping the K-series engine into the EK Civic a bolt in procedure. Since this kit requires the EG/DC2 subframe, the engine is moved further back in the engine bay for more radiator and AC compressor clearance.
NOTE: This kit will only work with an EG Civic/DC2 Integra subframe!
This EKK kit comes in three variations depending on the transmission being used:

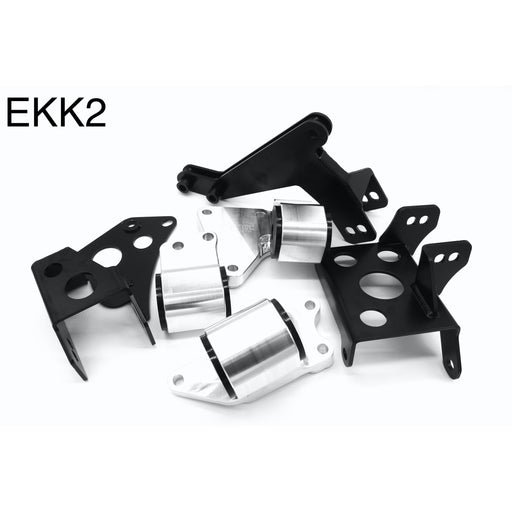

- The EKK2 mount kit works with the RSX and 02-11 Civic Si manual transmissions.
- The EKK4 mount kit works with the 03-07 Accord and 04-08 TSX manual transmissions.
- The EKK5 mount kit works with the 08-13 Accord, 09-14 TSX and 12-15 Civic Si manual transmissions.
- The EKKAWD mount kit works with the K-series CRV and Element AWD or FWD manual transmissions.
Like All Hasport Mount Kits, it’s designed using sophisticated CAD/CAM software. This kit features:
- Optimized engine placement for best axle alignment, ground, and hood clearance.
- Designed blending strength and style with a lifetime warranty for worry free use.
- Four different bushing durometers for applications ranging from daily driver to 8 second drag car.
- Hasport’s superior customer service.
Hasport also has these products available for this swap.
- Wiring conversions
- ECU modifications
- Axles
Requires the use of the EG or DC2 subframe, steering rack, and lower control arms.
Additional Information:
| Weight | 25 lbs |
| Dimensions | 12 × 10 × 8 in |
| Choose Bushing Stiffness | U62A (Street), U70A (Race), U88A (Extreme Race), U94A (Most Extreme Race) |
| Choose Transmission Compatibility | EKK2 – RSX/02-11 Civic Si manual, EKK4 – 03-07 Accord/04-08 TSX, EKK5 – AWD/12-15 Civic Si |
