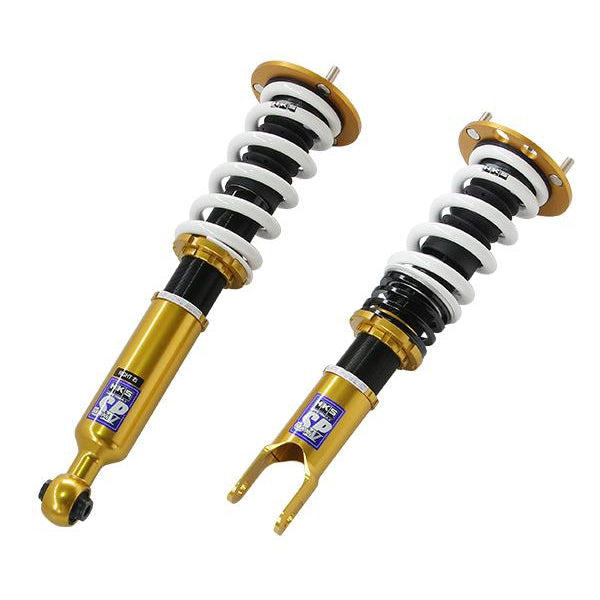

HKS Max 4 SP FD3S Full Kit
by HKS
Save 10%
Original Price
$4,146.91 NZD
Current Price
$3,732.22 NZD
SKU 80250-AZ001
Buy now pay later,no extra cost!
Payments from $373.22 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*
The sport model to have a comfortable drive even in the winding road.
Features:
- Height from road surface to fender arch.
- Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
- Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) - Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Kit information:
Spring of Full Kit
| F | R | |
| Spring rate N/mm(kgf/mm) | 157 ( 16 ) | 157 ( 16 ) |
| Free height (mm) | 200 | 170 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | -20 ( 2 ) | -20 ( 2 ) |
Specification of damper
| F | R | |
| Damping force (Rebound/Damping)N* | 3109 / 598 | 1893 / 392 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping)mm | 28 / 57 | 50 / 50 |
