HKS Piston + Conrod Kit L15A/LEA 73
HKS Piston + Conrod Kit L15A/LEA 73

HKS Piston + Conrod Kit L15A/LEA 73

by HKS
$4,031.70 NZD
SKU 21004-AH001
Buy now pay later,no extra cost!

Payments from $403.17 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
Stock Status:  AVAILABLE TO SPECIAL ORDER - CHECK SHIPPING DETAILS BELOW

This product is available for special order. You can still purchase this item - read below for more information on our special order freight options.

Special orders are shipped in two steps from our international suppliers to Speed Science HQ , then to you.
(2)(1)
(1) Shipping options:

!! TRANSIT TIMES ONLY !!

DOES NOT INCLUDE ORDER PROCESSING TIME.

STOCK AVAILABILITY WITH SUPPLIER IS NOT GUARANTEED AT TIME OF ORDERING..


Air Freight Express.

7- 12 Days

Air Freight Consolidated.

15 to 21 Days

Ocean Freight.

3 to 4 months

Ocean freight orders are shipped in bulk to enable us to provide the best price
possible.

Therefore,
your order may not leave the country of origin for up to 3 months.


(2) Shipping options:

Auckland.
Overnight

North Island.
1-2 days

South Island.
2-3 days

Rural Delivery.
Extra 1-3 days (incl track packs)

Australia - Standard
7-9 days

Australia - Express
4-7 days

Rest of World
10-20 days

Time frames are estimates only and subject to product availability and order processing with supplier.

*sold individually*

To improve the performance of the CR-Z using the factory connecting rods, the durability of the factory parts restricts the improvement. Using this Piston Kit and Connecting Rod Set with the HKS GTS7040 Set-up Kit can increase the maximum engine output to 300ps and the maximum torque to 36 kgf･m; the CR-Z can be high performance hybrid sports car.

Feature:

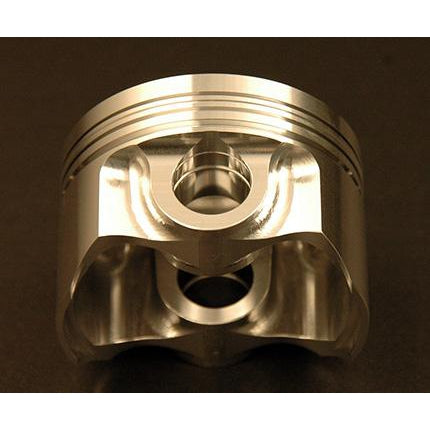

【PISTON KIT】

  • Factory replacement & standard bore size piston kit.
  • Billet pistons are made from the 80mm-L60mm Aluminum rod material.
  • Honda factory piston pins (18mm Semifloating pins) are required.
  • Honda factory piston rings are required.
    The compression ratio when using the pistons with HKS Head Gasket is as follows:
    HKS Head Gasket t=0.8mm Gasket Bore: 75.0mm 8.7
    HKS Head Gasket t=1.2mm Gasket Bore: 75.0mm 8.4

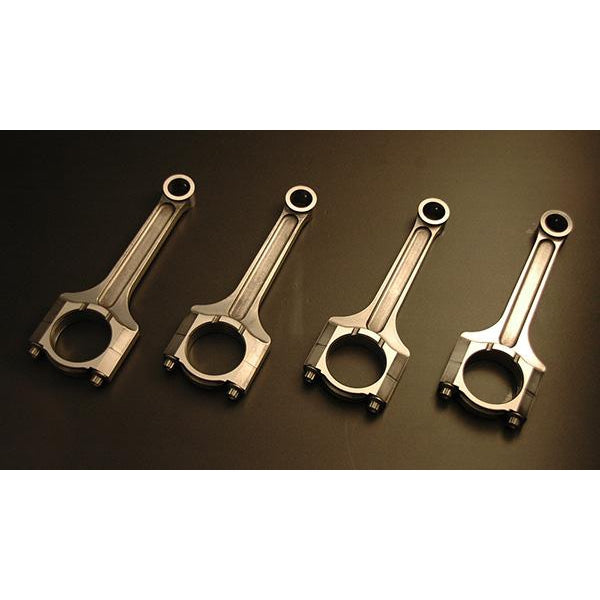

【CONNECTING ROD SET】

  • Semifloating pins on the connecting rod small end.
  • The durability is improved by 186% comparing to the factory's durability with the 158.8(mm2) minimum cross-sectional area of the rod.
  • The M8x1.0 sized connecting rod bolts are used for better rigidity.

 In-house test at 336PS/43.78kgf･m confirmed the durability and safety (including the Supercharger drive loss).

Specifications:

HKS Stock
Bore x Stroke φ73×89.4mm φ73×89.4mm
Comp. Ratio   ε8.7/8.4 ε10.4
Gasket thickness HKS t 0.8/1.2 t 0.80
Displacement (cc) 1496 ←
Piston Bore dia. φ73 ←
Compression height 26.0mm ←
Concave portion capacity 17.5cc 8.7cc
Material φ80-L60 AL Casting
Ref. weight 178.5g 198.9g
Pin Size φ18 φ18
Ring Top size φ73×1.0×2.3 ←
2nd size φ73×1.0×2.3 ←
Oil size φ73×2.0×1.9 ←
Connecting rods Material SCM440H -
Ref. weight 380g 314.5g
Bolt M8×1.0 M6×1.0
Ref. capable torque 43.8kgf-m 30.47kgf-m
