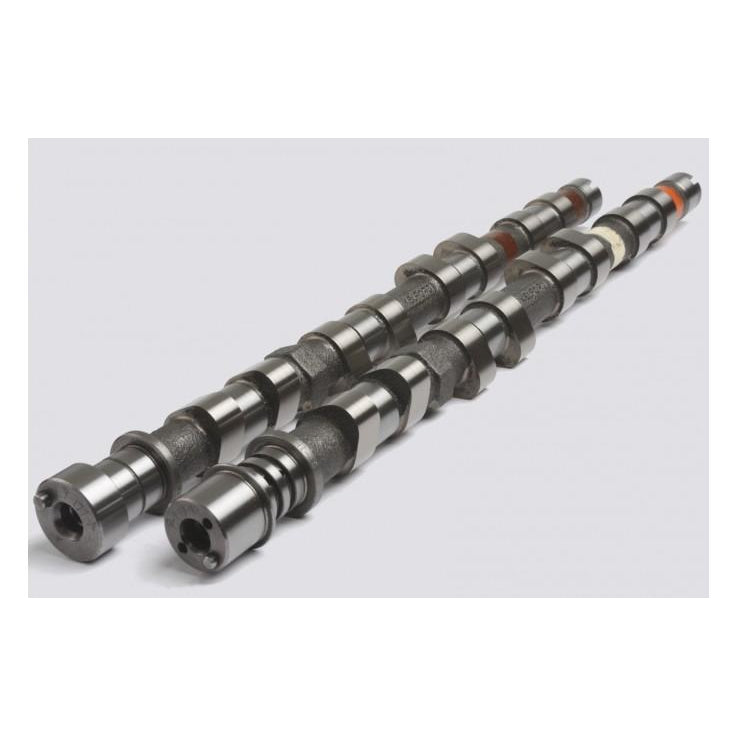

Kelford Cams 9-SLX260 Mitsubishi EVO9 Cam Set For Solid Lifters
by Kelford Cams
$1,079.85 NZD
SKU KC9-SLX260
Buy now pay later,no extra cost!
Payments from $107.98 with
Enjoy now. Pay Later. Interest free. Learn More
Note: Please check availability with us before ordering.
260/264 Degree advertised duration, 10.50mm/10.50mm lift.
Additional Information:
Cams for Mitsubishi 4G63 Evolution 9 MIVEC engines with solid lifter conversion. To suit 32-40mm restrictor plate and GPA rally engines.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | ||||
| MITSUBISHI | 4G63 EVO 9 MIVEC | 9-SLX260 | ||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM |
| Exhaust: | 0.20mm | Set | COLD | at the | CAM | |
| Cam Lift: | Intake: | 6.27mm | Exhaust: | 6.27mm | ||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | ||
| Nett Valve Lift: | Intake: | 10.50mm | Exhaust: | 10.50mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 264 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 212 | Exhaust: | 220 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 24 ATDC | EVO: | 43 BBDC | |
| IVC: | 56 ABDC | EVC: | 3 BTDC | |||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | ||
| VALVE | Lift @ TDC | Intake: | 0.13mm | Exhaust: | 0.76 |
