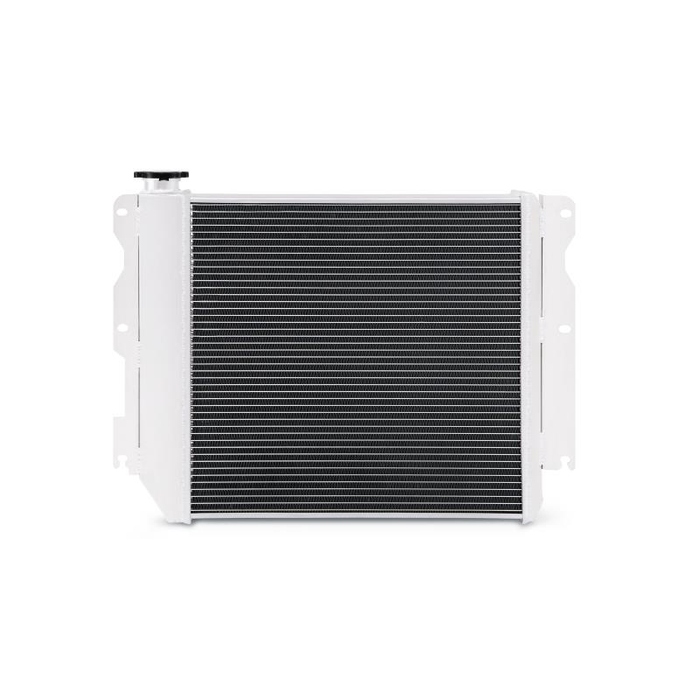

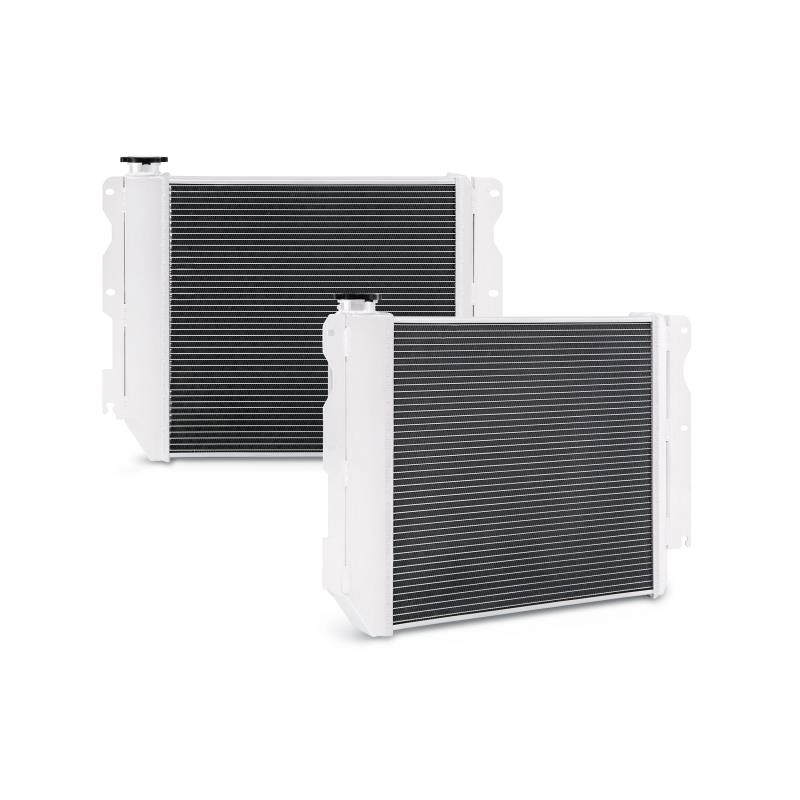

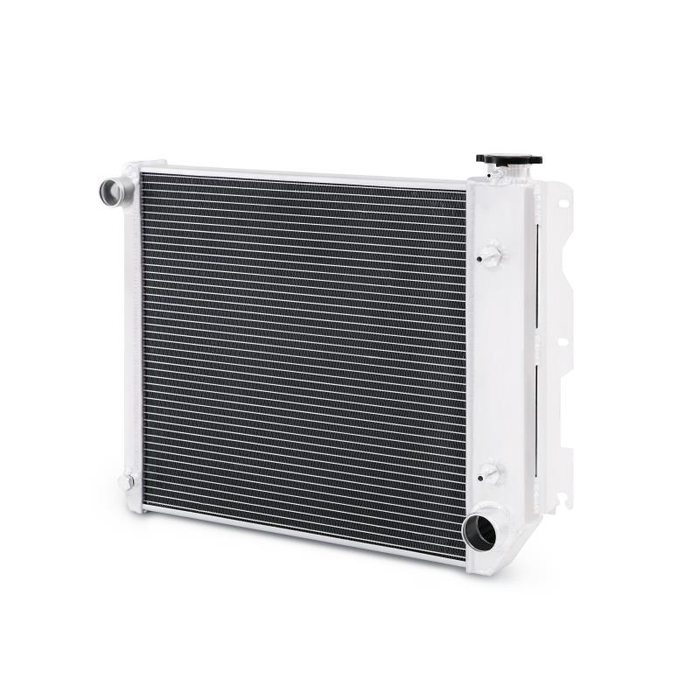

Mishimoto Aluminum Performance Radiator, Fits Jeep Wrangler YJ & TJ with Chevrolet V8 LS Engine Swap 1987 2004
Buy now pay later,no extra cost!
Payments from $105.46 with
Performance Jeeps deserve Jeep performance parts. An ideal upgrade for your modified Jeep LS swap, this 1987–2004 Jeep Wrangler Performance Aluminum Radiator is designed to handle the additional cooling needs of your Jeep Wrangler V8 swap. Whether you use your Jeep LS swap for daily driving or hit the trail on the weekends, many people overlook the importance of installing an upgraded radiator in their engine.The Mishimoto Jeep Wrangler with a Chevy V8 Engine Swap X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This performance aluminum radiator also includes a Magnetic Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, this Jeep LS swap radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Features:
- All-aluminum construction with durable, TIG-welded end tanks
- Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- 3-row core
- Increased coolant capacity and superior heat dissipation
- Billet aluminum fill neck
- Brazed aluminum core
- Includes magnetic drain plug to capture metallic debris and fragments in cooling system
- Mishimoto Lifetime Warranty
Purchase Includes:
- Mishimoto Radiator

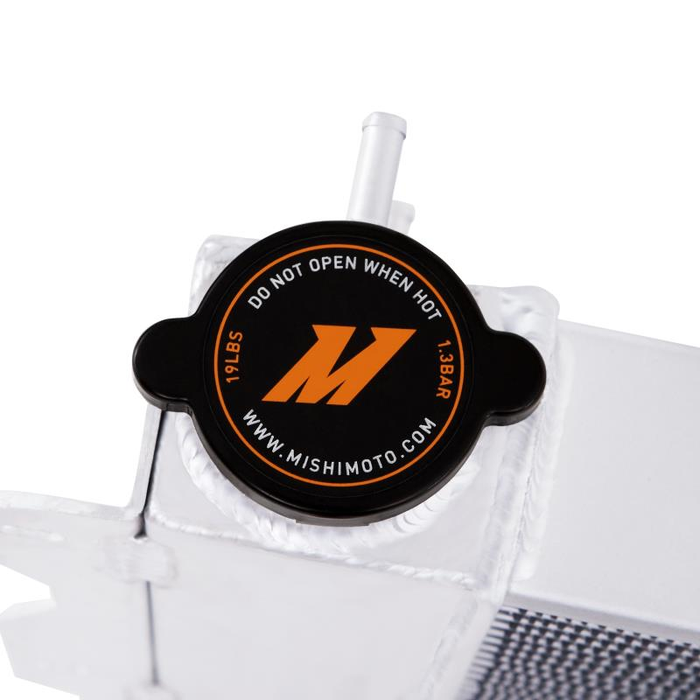

- Mishimoto Radiator Cap
- Magnetic Drain Plug
- Mishimoto Lifetime Warranty
Notes:
This radiator may not fit some vehicles equipped with power steering from the factory.Transmission Cooler Thread Info: On Radiator: Female M16 x 1.5 Sealing Face: 70° Hose Fitting: 22mm Hex, 8mm OD
Vehicle Specifications:
| Engine Codes | 350ci (5.7L) V8 |
| Fits | 1987-2004 Jeep Wrangler with Chevrolet V8 Engine Swap |
Product Specifications:
| Material | Aluminum |
| Overall Height | 25.5" |
| Drain Plug Thread Size | (M12) x 1.5 |
| Overall Length | 17.2" |
| Tank Wall Thickness | 0.08" |
| Outlet | 1.8" |
| Rows | 3 |
| Inlet | 1.5" |
| Dual Pass | False |
| Overall Width | 3.9" |
| Core Length | 18.2" |
| Core Height | 17.5" |
| Core Thickness | 2" |
| Overall Length (in) | 17.20 |
| Overall Height (in) | 25.50 |
| Overall Width (in) | 3.90 |
| Rows | 3 |
