Mishimoto Cold-Side Boot Kit, Fits Ford 6.0l Powerstroke Factory-Fit 2003���2004
Buy now pay later,no extra cost!
Payments from $40.07 with
Mishimoto is proud to release a direct-fit silicone boot kit with DuraCore™ technology designed specifically for the 6.0L Ford Powerstroke. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil, which effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability, this kit includes Mishimoto's Constant Tension T-bolt Clamps for accurate and consistent holding power. This Powerstroke performance boot kit is precision engineered for a flawless fit on your Powerstroke and will provide years of service. Like all Mishimoto Powerstroke performance parts, this Powerstroke performance boot kit comes with the Mishimoto Lifetime Warranty.
Features:
- Direct fit for the 2003–2004 Ford 6.0L Powerstroke
- Manufactured from five layers of silicone with heat-resistant embedded fibers
- DuraCore™ synthetic inner layer provides superior resistance to heat, pressure, fuel, and oil
- Includes high-quality constant tension T-bolt clamps for accurate and consistent holding power
- Mishimoto Lifetime Warranty
Includes:

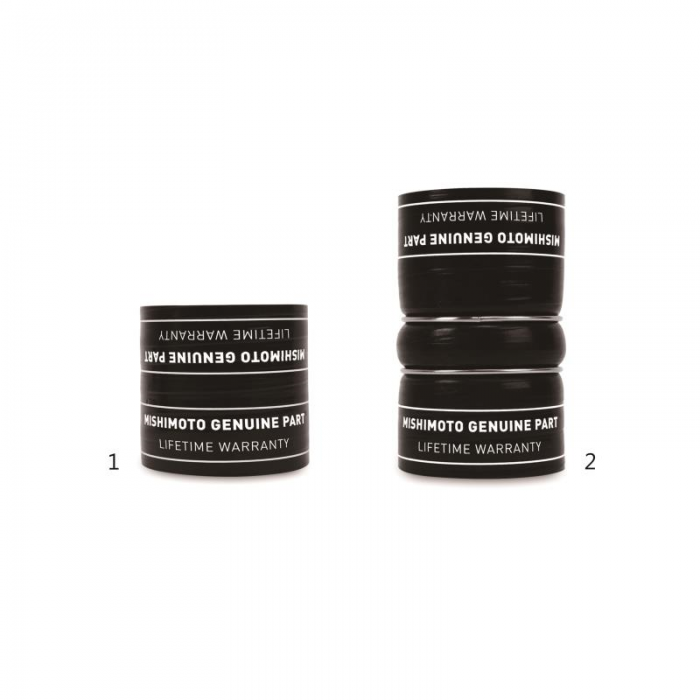

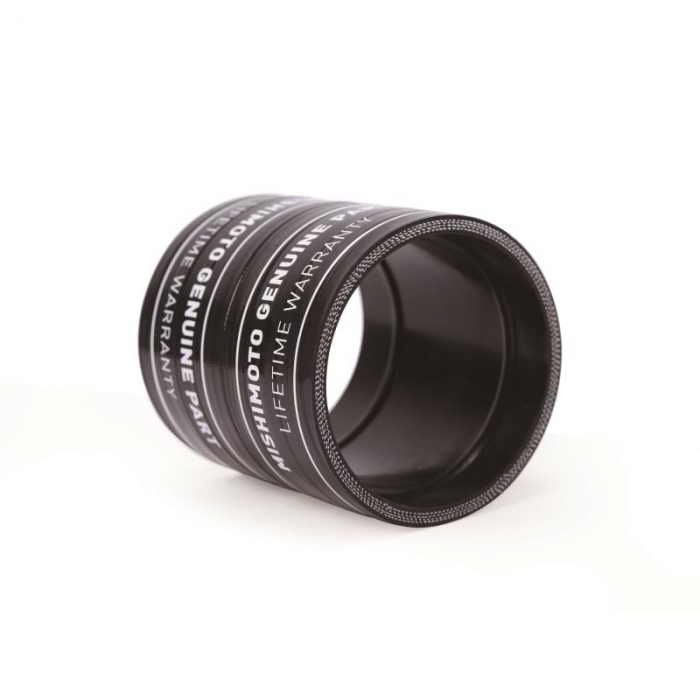

- (2) Silicone Boots with DuraCore™ Technology
- (4) Constant Tension T-Bolt Clamps
- Mishimoto Lifetime Warranty
Notes:
Will fit 2005-2007 trucks which have converted the drivers-side metal pipe P/N 6C3Z-6C640-AA.Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Specifications:
| MATERIAL | Silicone DuraCore™ |
| EXTERIOR MATERIAL | Silicone |
| EXT. MATERIAL TEMP. RATING | 428°F |
| INT. LAYER TEMP. RATING | 572°F |
| FACTORY PART NUMBER | Pipe (withBoots): 6C3Z-6C640-AA Boot 1: 3C34-6C640-CA Boot 2: 3C34-6C640-DA |
| INTERIOR LAYER | DuraCore™ |
| INTERIOR MATERIAL | Heat-Resistant Embedded Fibers |
| ALSO FITS | 2003-2004 Ford F-250 w/ 6.0L Powerstroke 2003-2004 Ford F-350 w/ 6.0L Powerstroke 2003-2004 Ford F-450 w/ 6.0L Powerstroke 2003-2004 Ford F-550 w/ 6.0L Powerstroke |
| OUTER DIAMETER | Boot 1: 3.40", 3.40" Boot 2: 3.40", 3.40" |
| MAX TEMP | 428°F |
| INNER DIAMETER | Boot 1: 3.00", 3.00" Boot 2: 3.00", 3.00" |
