Mishimoto Coolant Filter Kit, fits Nissan Titan XD 5.0L Cummins 2016-2019
Buy now pay later,no extra cost!
Payments from $48.45 with
Mishimoto has released a direct-fit coolant filter kit for the 2016-2019 Nissan Titan XD to help prevent your truck from being a victim of factory cooler clogs and failure. The application-specific mounting bracket mounts a precision CNC-machined 6061 aluminum filter mount and Wix coolant filter to the passenger side battery mount, an ideal location for easily removing the filter. This Titan XD coolant filtration system is routed in parallel with the flow path of your coolant system and allows a small amount of coolant to be filtered with each pass. The Mishimoto engineers also included two brass ball valves with this kit to help make changing the filters a clean process. The two silicone coolant hoses have been designed as once piece hoses to reduce any possibility of leaks and are offered in black, blue, or red to complement any engine bay. This coolant filter kit installs in under 45 minutes with no modification necessary. Protect your truck from harmful particles and help to extend the life of your trucks oil cooler, water pump, EGR cooler, coolant, and other critical engine components with the Mishimoto Titan XD coolant filter kit. Like all Mishimoto Titan performance parts, this Titan XD Coolant Filter kit comes with the Mishimoto Lifetime Warranty.
Features:
- Direct fit for 2016-2019 Nissan Titan XD Cummins

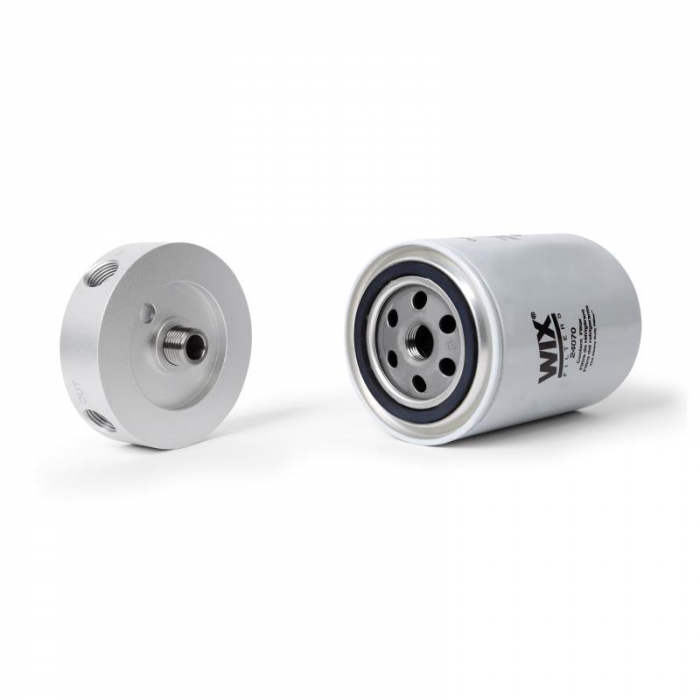

- 6061 anodized aluminum filter mount
- One-piece, application-specific silicone hoses available in black, blue, or red

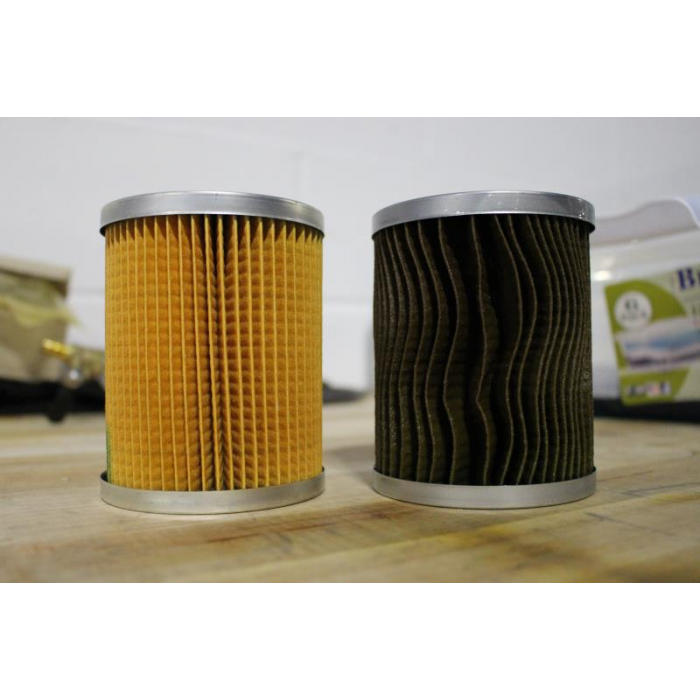

- Filters solid particles from your truck's coolant
- Extends the life of your oil cooler, water pump, EGR cooler, coolant, and other critical components
- No modification of factory hoses
- Includes Wix coolant filter

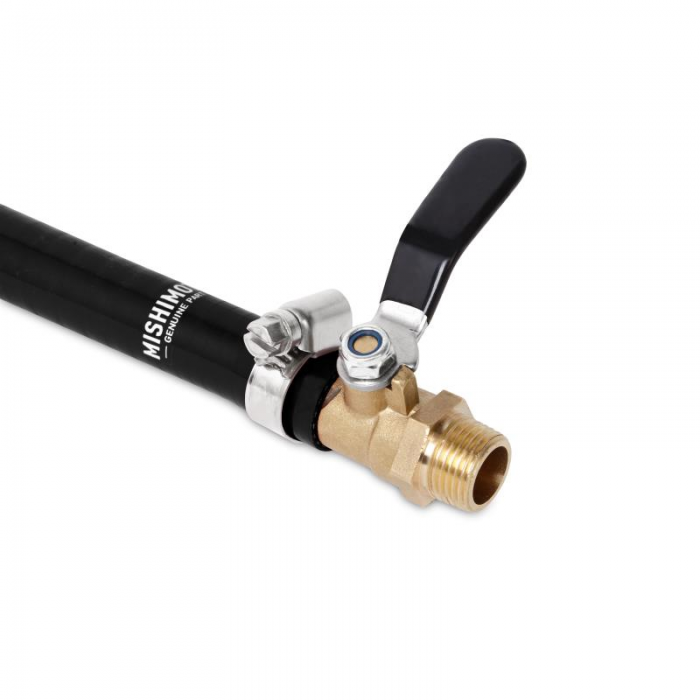

- Ball valve shut-offs included
- Installs in under 45 minutes
- Mishimoto Lifetime Warranty

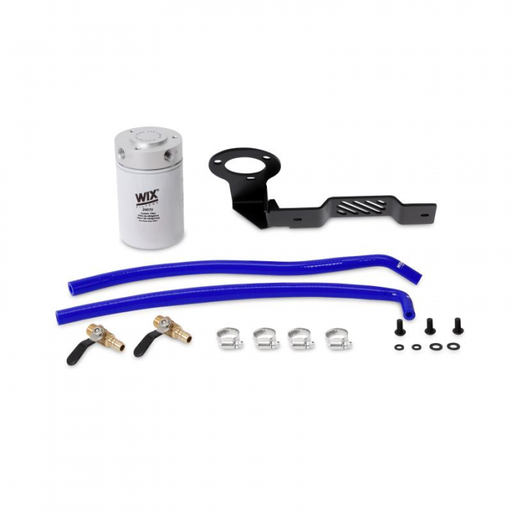

Includes:
- (1) Application-Specific Mounting Bracket
- (1) Silver, Anodized 6061 Aluminum Filter Mount
- (1) Coolant Filter
- (2) Direct-Fit Silicone Hoses
- (2) Brass Ball Valves
- (4) Worm Gear Clamps
- (1) Plastic Straight Barbed Fitting
- Mounting Hardware
- Mishimoto Lifetime Warranty
Notes:
Mishimoto recommends changing the coolant filter after the first month, again after 3 months, and then every year after that, depending on driving conditions. Because each engine was cast differently, there will be a different amount of debris collected.
Vehicle Specifications:
| Engine Codes | IS-V |
Specifications:
| Install Torque Specs | 22 in-lbs (2.5N*M) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |
| Also Fits | 2016-2019 Nissan Titan XD 5.0 Cummins |
