Mishimoto Front-Mount Intercooler Kit, Fits Subaru WRX/STI 2001–2007
Buy now pay later,no extra cost!
Payments from $307.50 with
Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto WRX and STI Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. This WRX and STI intercooler was designed with a large, 28 intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat exchange properties for those time attack laps, or a 10-second blast down the quarter mile.
The Mishimoto Subaru STI and WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25 in diameter to keep airflow velocities high, giving your car instant response without excessive throttle lag that plagues many front-mount intercooler designs. The cold side of the system features 3 mandrel-bent aluminum tubing designed for maximum airflow and to match the diameter of your throttle body. The kit is compatible with both stock and aftermarket bypass or blow-off valves.
The kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting or drilling is required to install the crash bar and intercooler. The kit also includes all necessary mounting brackets, including a resistor block relocation bracket to move the resistor block out of the way of the intercooler piping. All mounting brackets will come with applicable hardware, zip ties, and thermal wrap. The kit also includes every coupler and clamp needed for a clean install. For larger-than-stock turbos, Mishimoto has included a larger turbo hot-side pipe that will fit turbochargers with an outlet of 2–2.13. As an added bonus, we've engineered the Mishimoto Subaru WRX/STI Performance Air Intake as an additional option to work perfectly with this intercooler kit and provide a rich and aggressive intake tone.
Mishimoto tested this intercooler on our 320 whp STI to find significant drops in AITs (air intake temperatures), and the intercooler has also been flow tested to over 600 whp! This kit, like all our STI and WRX front-mount intercooler kits, is available with either a Sleek Silver or Stealth Black cooler and includes the Mishimoto Lifetime WarrantyWorried that paint reduces performance? Check out our Painted Intercooler Engineering Report to learn how we debunked that myth!
Features:
- Fits the 2001–2007 Subaru WRX/STI
- Intercooler design optimized for maximum flow, and smooth cast end tanks allow the best possible airflow in and out of the intercooler
- Optimal core design for maximum cooling efficiency with minimal pressure drop
- Flow rated to approximately 600 whp/30 psi of turbo boost (See Tech Specs below)
- Includes all necessary hardware, brackets, and accessories
- Also fits right-hand drive models
- Available in Sleek Silver or Stealth Black
- Works with stock bypass valve or aftermarket blow-off valve

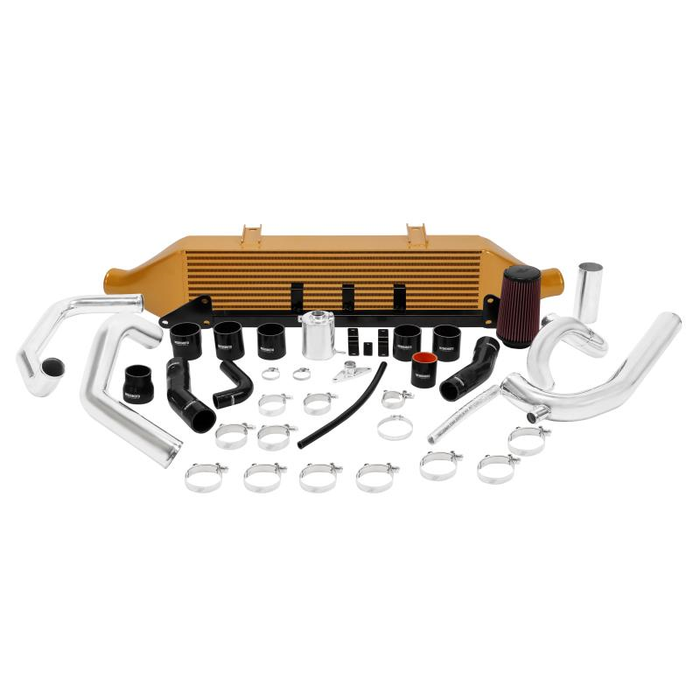

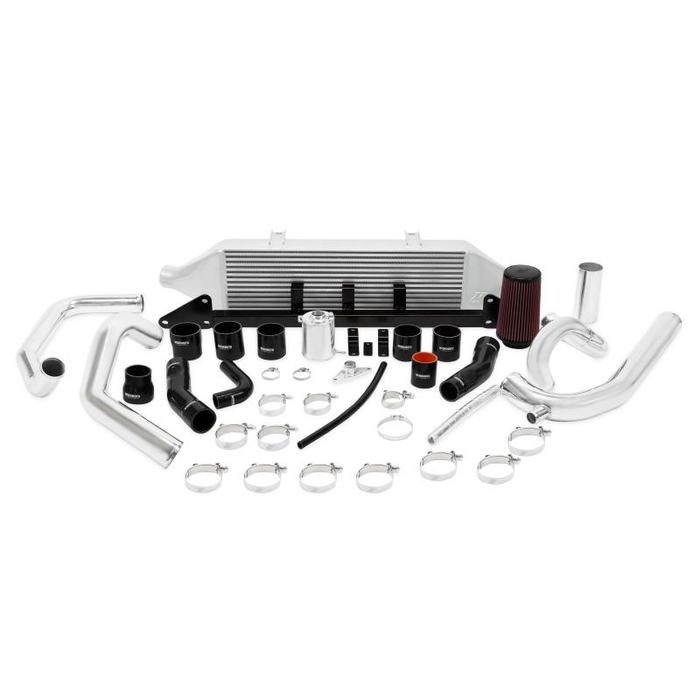

- Optional Subaru WRX/STI Performance Air Intake works perfectly with intercooler kit and provides a rich and aggressive intake tone
- Mishimoto Lifetime Warranty

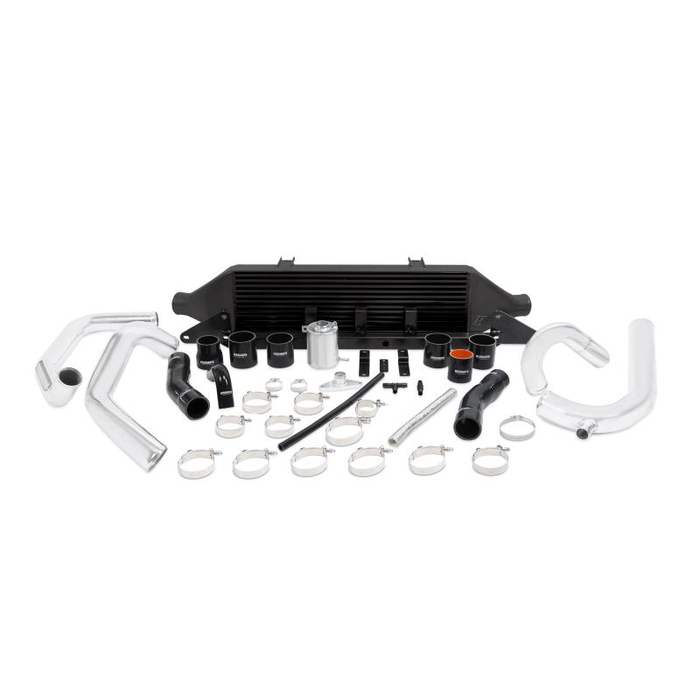

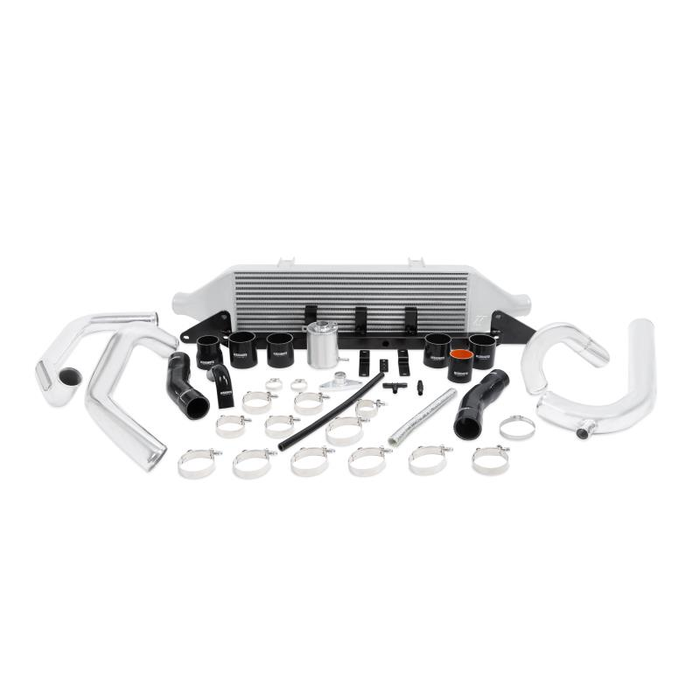

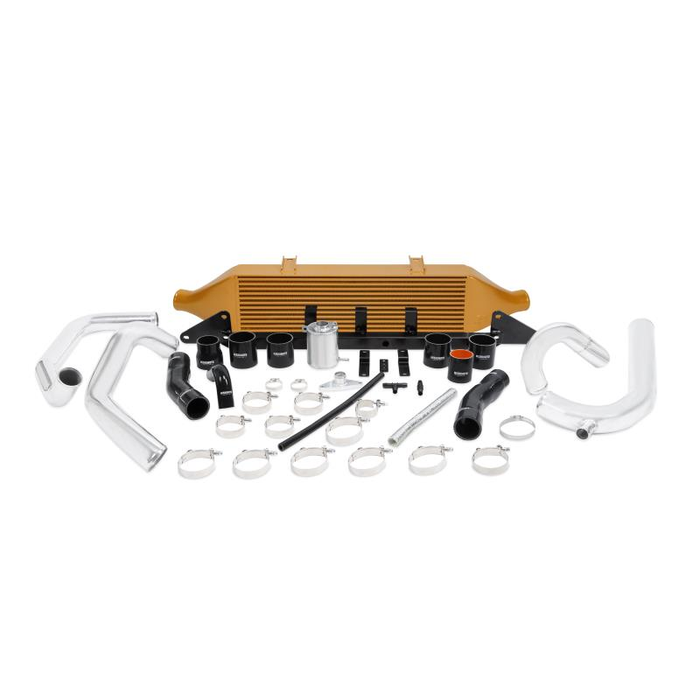

Purchase Includes:
- (1) Bar-and-Plate Intercooler
- (1) Steel Crash Bar w/ Mounting Hardware
- (2) Hot-Side Intercooler Pipes
- (2) Cold-Side Intercooler Pipes
- (1) BPV Flange Adapter
- (1) Resistor Block Relocation Bracket w/ Mounting Hardware
- (2) Lower Intercooler Brackets w/ Mounting Hardware
- (1) Aluminum Overflow Can w/ Mounting Hardware
- (1) Turbo to Hot Pipe Coupler (for stock turbo)
- (1) Turbo to Hot Pipe Coupler (for aftermarket turbo)
- (1) 2.25" Straight Coupler
- (2) 2.75" Straight Couplers
- (1) 2.75" x 3.25" Long Straight Coupler
- (1) 2.00"-2.75" Transition Coupler
- (1) BPV Recirculation Hose
- (1) PCV hose
- (1) 2.00" T-bolt Clamp
- (4) 2.5" T-bolt Clamps
- (7) 3" T-bolt Clamps
- (1) 1.5" Worm Gear Clamp
- (1) Bypass Valve Gasket
- (1) Black Nylon Hose Fitting, 3/4" I.D.
- (1) Black Nylon Tee Hose Fitting, 3/4" I.D.
- (1) 12" of Thermal Wrap
Vehicle Specifications:
| Make | Subaru |
| Engine Codes | EJ205 EJ255 EJ257 |
| Chassis Codes | GD GG |
| Fits | 2002-2007 Subaru WRX 2004-2007 Subaru STI 2005-2006 Saab 9-2x Aero |
Product Specifications:
| Installation Torque Specs | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |
| Silicone Couplers | (1) Turbo to Hot Pipe Coupler (for stock turbo) (1) Turbo to Hot Pipe Coupler (for aftermarket turbo) (1) 2.25" Straight Coupler (2) 2.75" Straight Couplers (1) 2.75" x 3.25" Long Straight Coupler (1) 2.00"-2.75" Transition Coupler |
| Pipe Diameter | Hot-Side: 2.25" Cold-Side: 2.75" |
| Constant Tension T-Bolt Clamps Specs | (1) 2.00" T-bolt Clamp (4) 2.5" T-bolt Clamps (7) 3" T-bolt Clamps |
| Core Thickness | 3.5" |
| Cold-Side Intercooler Pipe Specs | – Made from polished mandrel-bent aluminum – 2.75" I.D. – Includes upper and lower intercooler pipes |
| Hot-Side Intercooler Pipe Specs | – Made from polished mandrel-bent aluminum – 2.25" I.D. – Includes upper and lower intercooler pipes |
| PCV Hose Specs | – 17.5" length – 0.45" I.D. – 0.75" O.D. – 4mm thick |
| Intercooler/Throttle Body Coupler Specs | – 3.25" Length – 2.75" I.D. – 3.00" O.D. – 4mm thick |
| WRX BPV Hose Specs | – Application-specific bend for this kit – 1.25" I.D. – 1.50" O.D. – 4mm thick |
| Weight | 25.5 lbs |
| Coating | Powder Coated |
| Tank Wall Thickness | 3.5mm |
| Max Rec. PSI | 30 psi |
| Outlet | 3" |
| Core Length | 28" |
| Core Height | 8.25" |
| Core Width | 3.5" |
| Inlet | 2.75" |
| Core Size | 28" x 8.25" x 3.5" |
| Overall Width | 5.5" |
| Overall Height | 9" |
| Overall Length | 44" |
| Construction | Bar-and-Plate |
| Max Rec HP | 600 whp |
