Mishimoto Performance Aluminum Radiator, Fits Honda Civic EG W/K-Swap 1992-1995
Buy now pay later,no extra cost!
Payments from $90.72 with

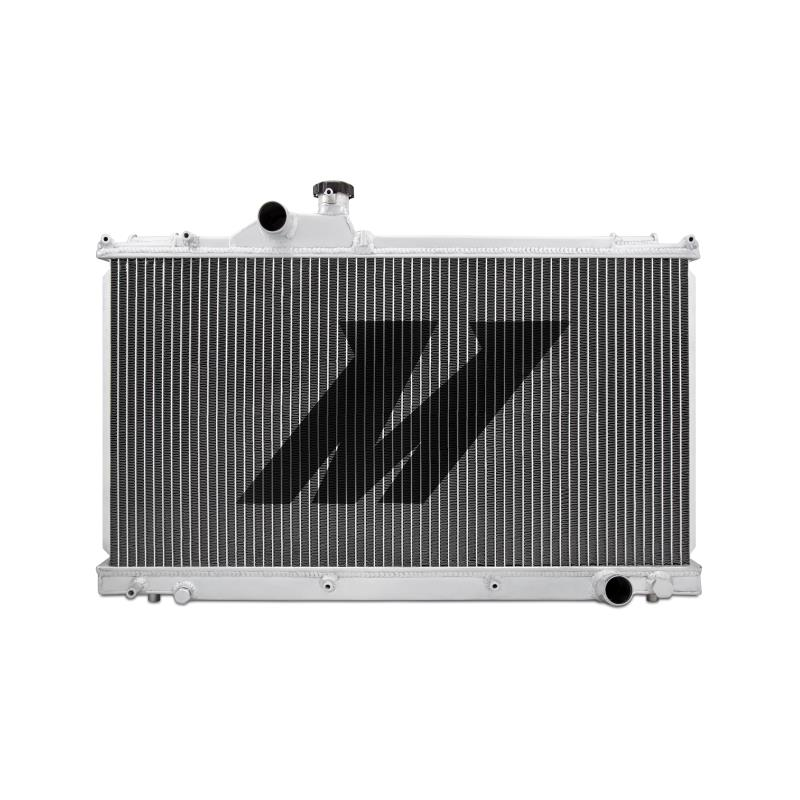

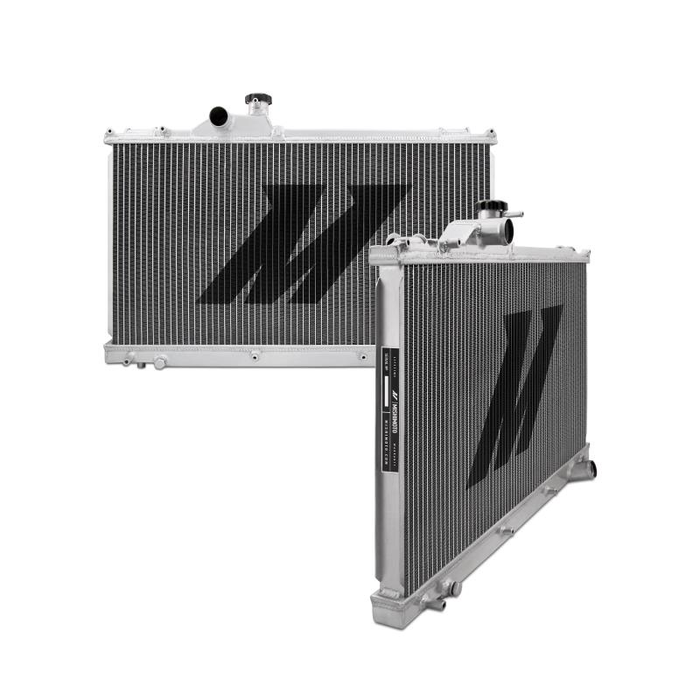

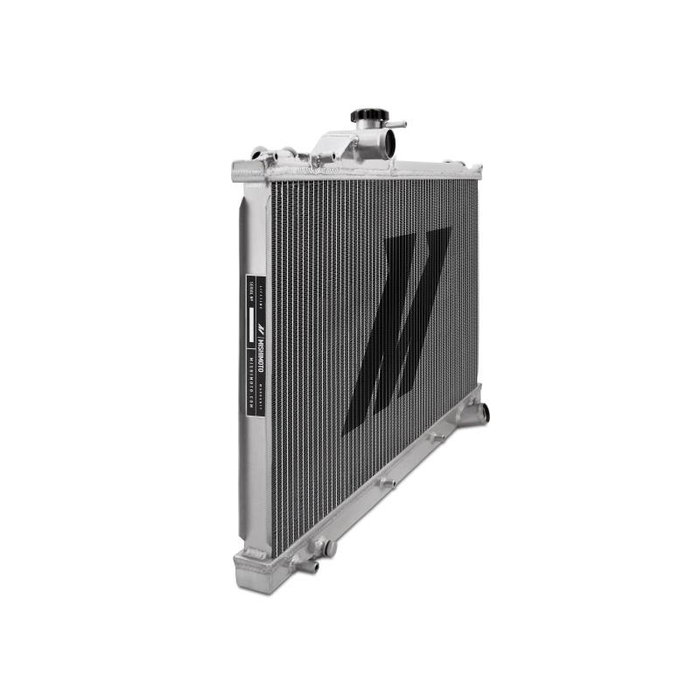

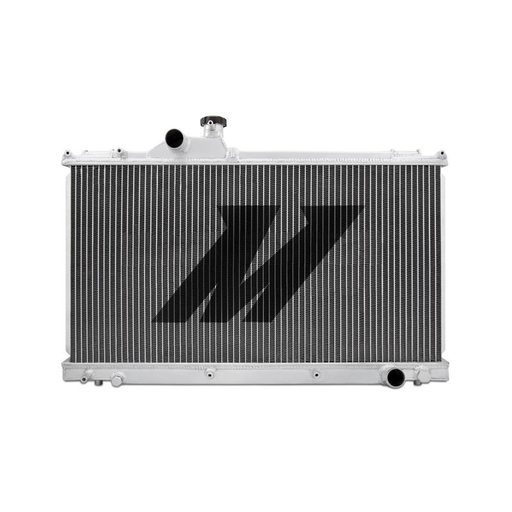

Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps. Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind. This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations.The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. This radiator, paired with our K-Series Swap Silicone Radiator Hose Kit, is the perfect cooling solution for your boosted or N/A K-Swap.This aluminum radiator, like all Mishimoto radiators, comes with a 1.3 bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.
Features:
- Designed specifically for the 1992–1995 Honda Civic EG chassis with K-series engine swap
- Provides a bolt-in cooling solution, simplifying the engine swap process
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.57" thick, efficient brazed aluminum core
- Substantial fluid capacity and optimal heat dissipation
- Provides efficient heat exchange for naturally aspirated and forced induction vehicles
- Includes threaded fan switch port to function with stock sensor

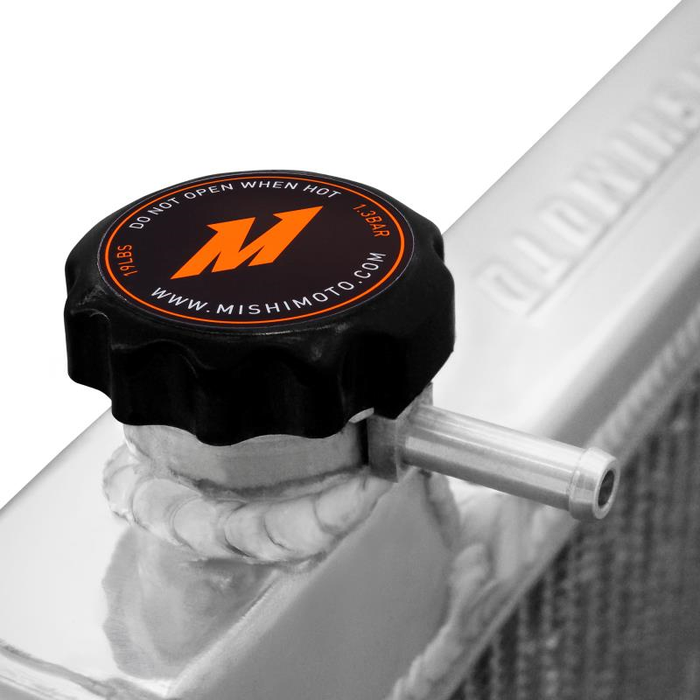

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

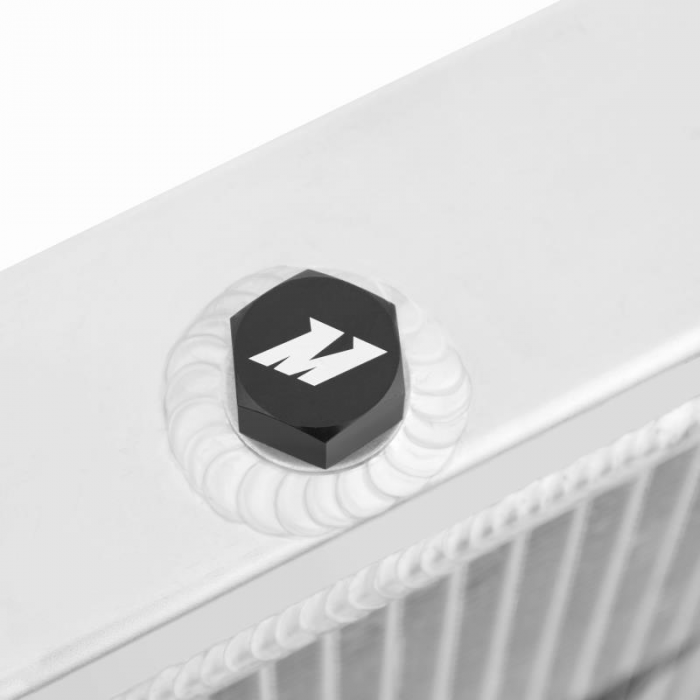

- Includes Magnetic Drain
- Plug to capture any metallic debris/fragments in your cooling system

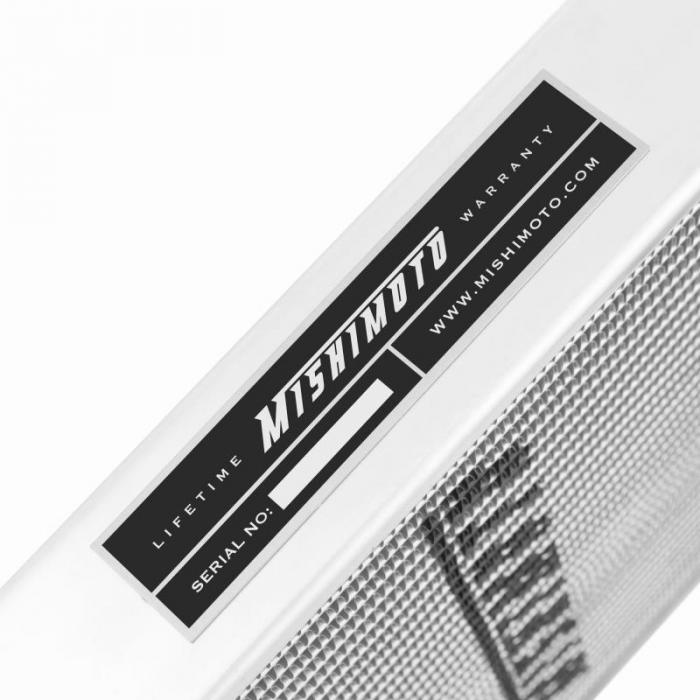

- Mishimoto Lifetime Warranty
- Mishimoto Radiator
- Mishimoto Radiator Cap
- Magnetic Drain Plug w/ Dowty Oil Seal
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Engine Codes | K20 |
| Fits | 1992-1995 Honda Civic EG 1993-1997 Honda Del Sol |
Product Specifications:
| Lower Tank Thread Size | M18 x 1.5 |
| Material | Aluminum |
| Overall Height | 15.04" |
| Upper Tank Thread Size | 1/8" NPT |
| Drain Plug Thread Size | (M12) x 1.5 |
| Overall Length | 16.73" |
| Tank Wall Thickness | 0.08" |
| Outlet | 1.25" |
| Rows | 2 |
| Inlet | 1.25" |
| Dual Pass | False |
| Overall Width | 4.02" |
| Core Length | 14.88" |
| Core Height | 11.61" |
| Core Thickness | 1.57" |
| Overall Length (in) | 16.73 |
| Overall Height (in) | 15.04 |
| Overall Width (in) | 4.03 |
| Rows | 2 |
