Mishimoto Performance Aluminum Radiator - S2000 2000-2009
Buy now pay later,no extra cost!
Payments from $89.58 with

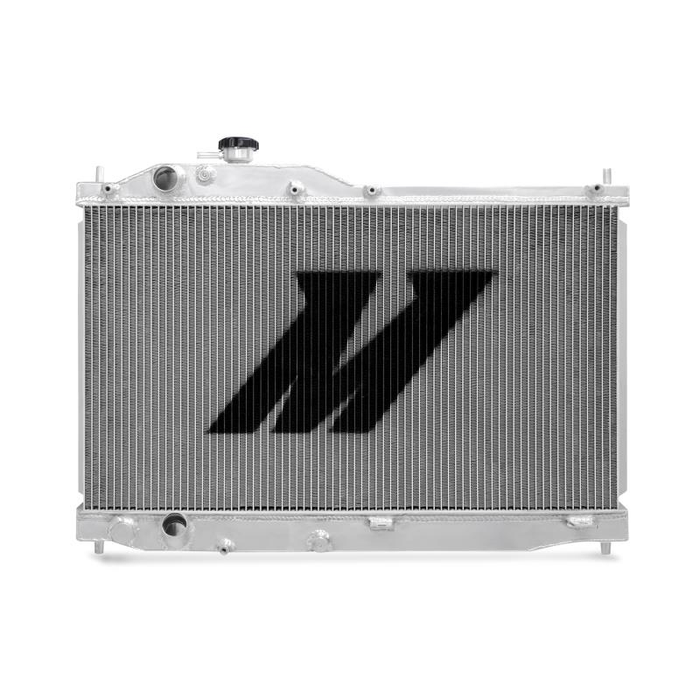

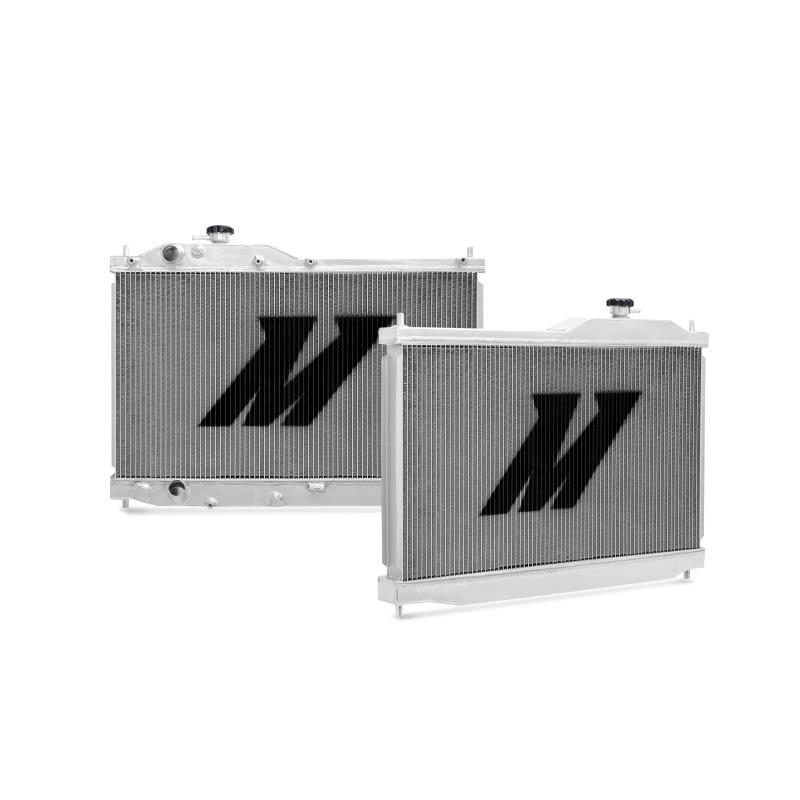

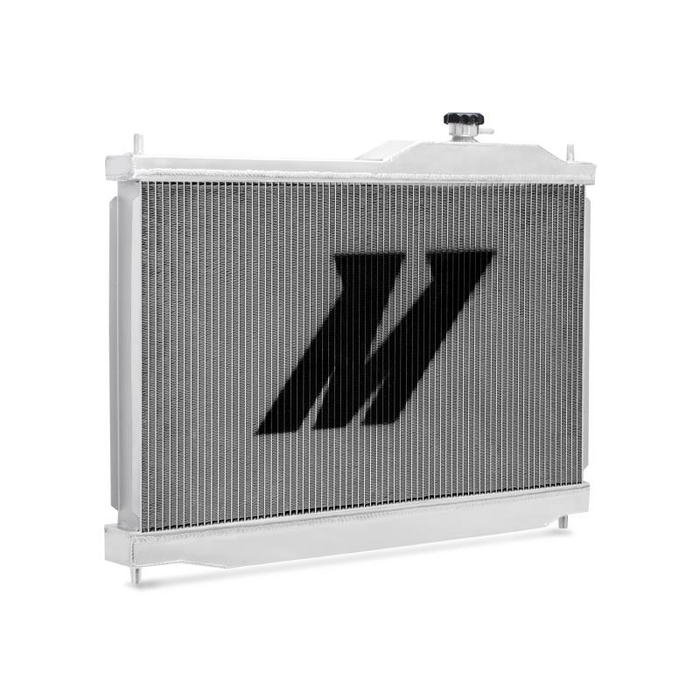

Upgrade your stock S2000 radiator with a Mishimoto performance aluminum radiator to maximize cooling efficiency, boost engine functions and protect your car from overheating. Whether you use your Honda as a daily driver or take it to the track a Mishimoto aluminum radiator will most importantly lower engine temperatures while enhancing the overall performance and lifetime of your vehicles engine. The Mishimoto Honda S2000 radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks. Every Mishimoto performance aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required. This Mishimoto radiator comes with a High Pressure 1.3 Bar Radiator Cap and, as with every aluminum radiator, includes the Mishimoto Lifetime Warranty. Also be sure to check out our S2000 silicone hose kit, for even greater cooling efficiency.
Features:
- Direct fit for the 2000–2009 Honda S2000

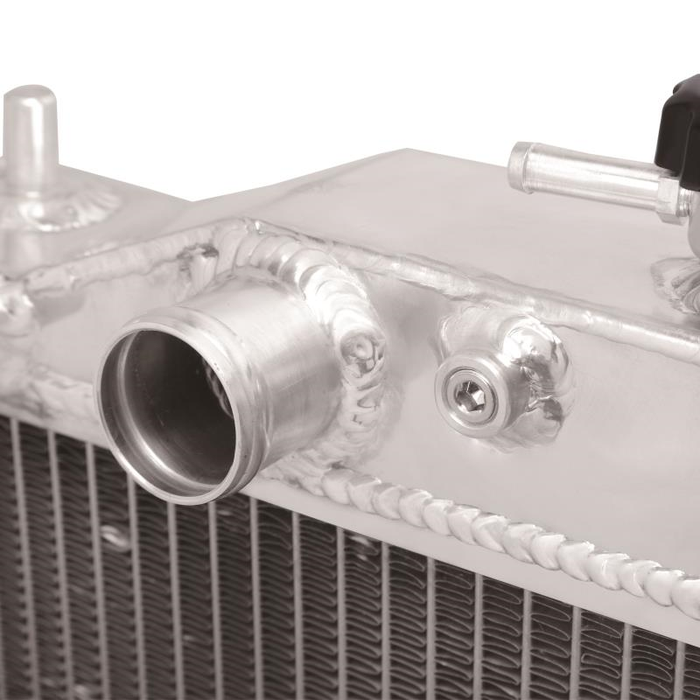

- TIG-welded to perfection
- Includes magnetic drain plug
- Includes a high-pressure 1.3 bar Mishimoto radiator cap
- Includes 1/8" NPT port for use with additional temperature sensors
- Lifetime Warranty
Purchase Includes:
- Mishimoto Radiator
- Mishimoto Radiator Cap
- Magnetic Drain Plug
- AP2 Adapter
- 1/8" NPT Plug
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Engine Codes | F20c1F22c1 |
| Chassis Codes | AP1AP2 |
| Fits | 2008-2009 Honda S2000 CR Edition |
Product Specifications:
| Material | Aluminum |
| Overall Height | 26.8" |
| DPI | 2344 |
| Drain Plug Length | 0.047" |
| Drain Plug Thread Size | M10 x 1.25 |
| Overall Length | 20.1" |
| Tank Wall Thickness | 0.08" |
| Outlet | 1.25" |
| Rows | 2 |
| Inlet | 1.25" |
| Coolant Capacity | 2.27 |
| Dual Pass | False |
| Overall Width | 3.26" |
| Core Length | 25.67" |
| Core Height | 14.76" |
| Core Thickness | 1.95" |
| Fill Neck | 1.25" |
| Overall Length (in) | 20.10 |
| Overall Height (in) | 26.80 |
| Overall Width (in) | 3.26 |
| Rows | 2 |
