Radium Adjustable Pressure Switch
Save 10%
Original Price
$207.18 NZD
Current Price
$186.46 NZD
SKU rad20-0236
Buy now pay later,no extra cost!
Payments from $18.64 with
Enjoy now. Pay Later. Interest free. Learn More

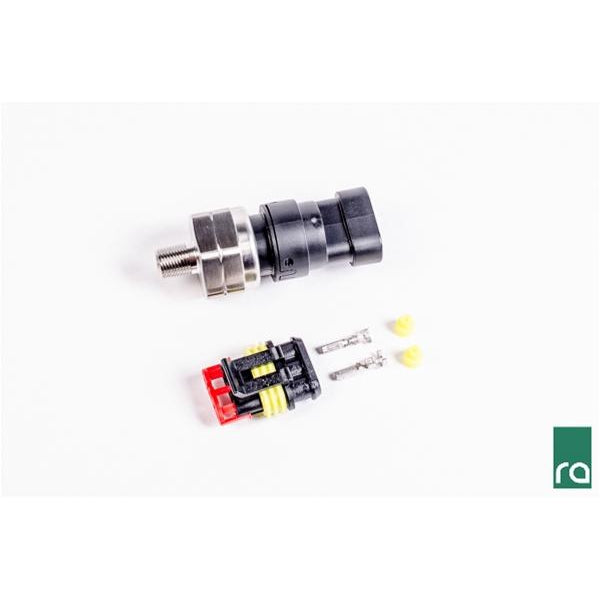

This Adjustable Pressure Switch offers a solution for triggering staged fuel pump(s) based on positive boost pressure. This normally open (N.O.) switch features a 3-15psi adjustable set point to match any application. The stainless steel body features a 1/8" NPT male port. Connector and pins are included (assembly required). This switch ONLY activates with positive pressure.
Installation Notes:
- DO NOT route the main power for a fuel pump through this switch. Use the switch to trigger a relay.
- This switch may be used to trigger any device, not just a fuel pump, as long as the current demand is less than 0.5 Amp.
- Review the installation instructions in the above link prior to purchasing.
- The switch DOES NOT come pre-set to any particular pressure, it MUST be calibrated using the method outlined in the installation instructions.
- This switch may also be used in other fluid applications (oil, fuel, coolant, etc). DO NOT use with brake fluid.
Notes: the relay "trigger" signal that goes through the adjustable pressure switch can a ground or 12V signal as long as the other end of the low current relay coil wire is connected to an opposing source.
