Skunk2 Ultra Race Centre Feed Intake Manifold - B Series
Buy now pay later,no extra cost!
Payments from $193.40 with

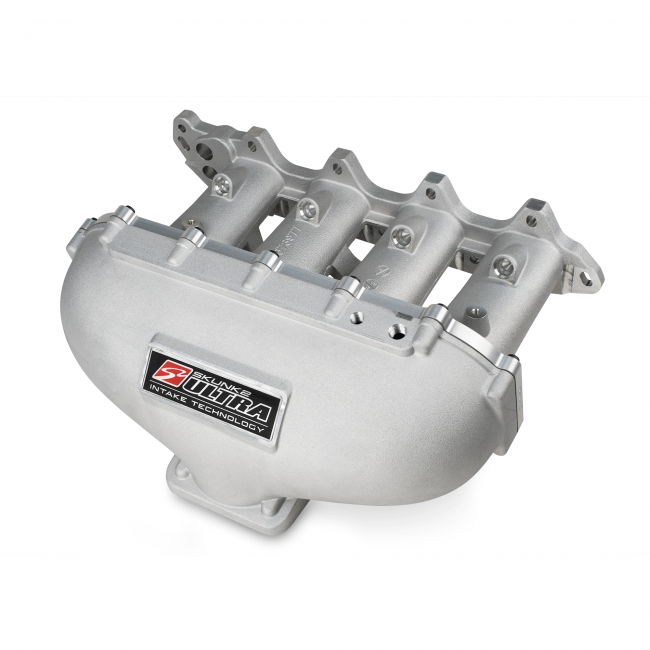

Skunk2 Racing is proud to announce the next generation of high-performance intake manifolds!
The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:

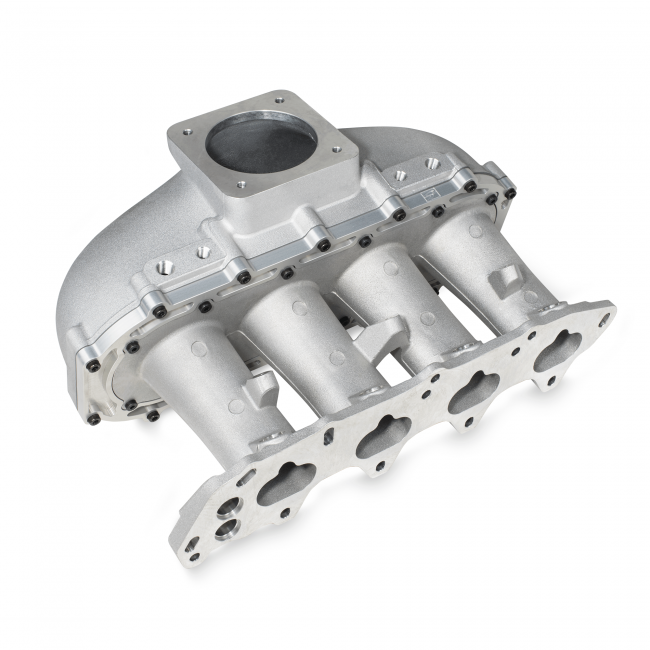

- Modular 3pc. Design w/ Removable Plenum
- 5.0L Plenum Volume**

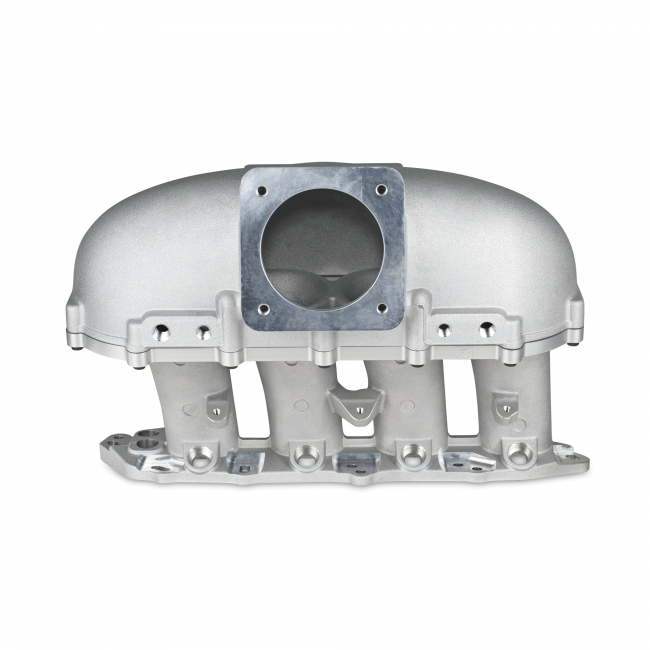

- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- 6.0” Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- Universal Mounting Flange Fits All B VTEC Cylinder Heads
- 3 x 1/8” NPT and 3 x 1/4” NPT Accessory Ports
- Hi-Grade Mounting Hardware

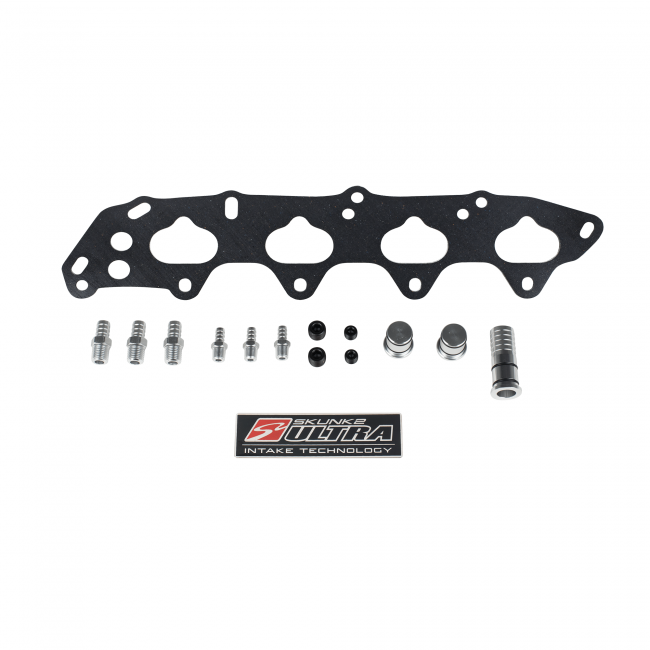

- Thermal Gasket Included
- Fits MOST Popular Chassis Configurations - Not Just Race Cars
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
5.0 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
6.0 Liter > 600-1000HP
7.0 Liter > 1,000HP Up
