STM Tuned 7-Bolt DSM Race Engine Oil Cooler Kit
Buy now pay later,no extra cost!
Payments from $81.02 with

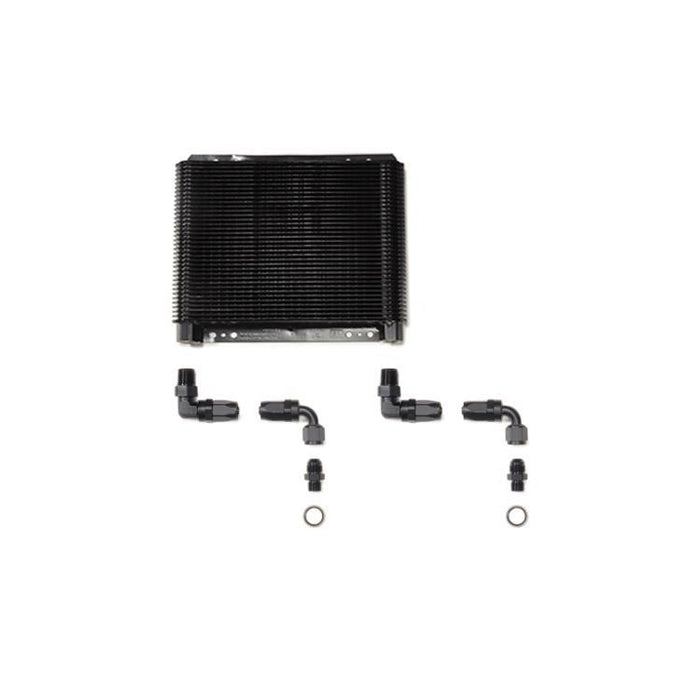

The STM Engine Oil Cooler Kit for 7-bolt DSM is designed around your needs as you can cut the length of line to your specific liking for a perfectly custom set-up. Utilizing the well known and trusted B&M Coolers, combined with high quality Vibrant braided nylon line and black aluminum fittings, this kit has everything you'll need to get this done the way you want.
Designed to bolt up to the factory 1990 DSM oil filter housing. If you have an air cooled housing in your DSM, it will work for you. It will take a little bit of DSM DIY work, but this setup works perfectly and we have sold a ton of them with great results!
Features:
- B&M Oil Cooler
- Nylon-Covered Stainless Braided Hose Won't Scratch Finishes
- Black Anodized Aluminum Fittings
- Low-Profile 90° Fittings for the Oil Cooler
- Genuine Mitsubishi Gaskets
B&M Oil Cooler Dimensions (Large):
- 11" Wide
- 10" Tall
- 1.5" Thick
- Part Number 70266

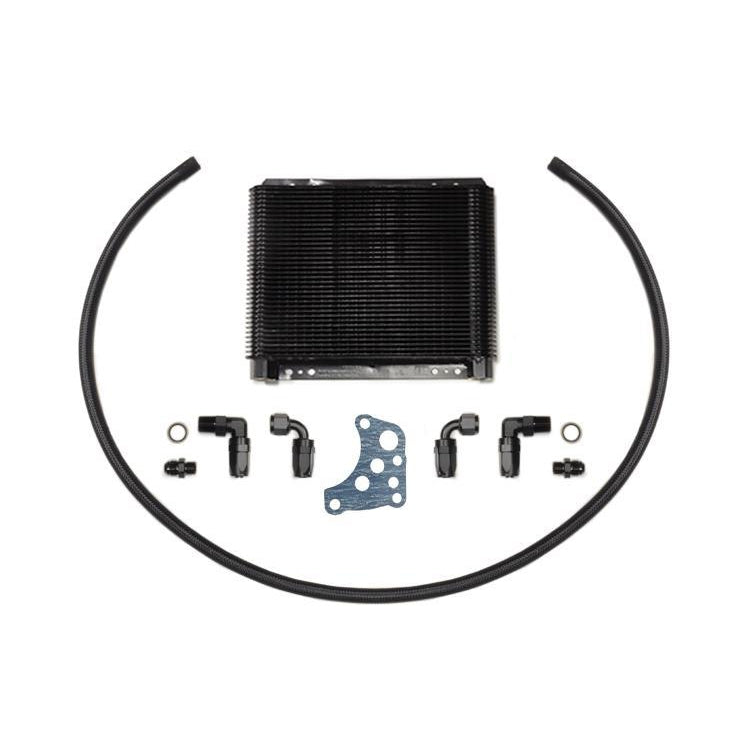

Includes:
- (1) 5-Feet -8AN Hose
- (1) B&M Oil Cooler

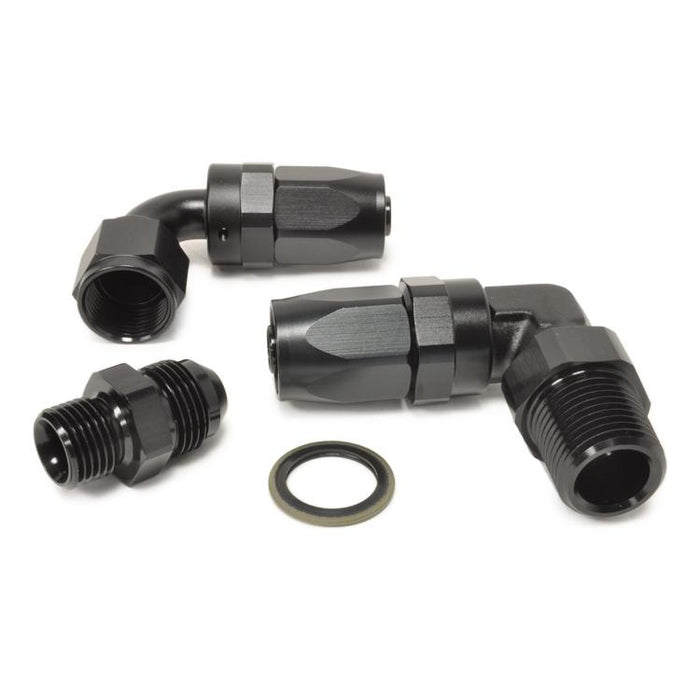

- (2) Vibrant -8AN 90° Swivel Fittings
- (2) Vibrant -8AN to 1/2" NPT 90° Fittings
- (2) Vibrant -8AN to M16 Fittings
- (2) OEM Mitsubishi Washers
- (1) OEM Mitsubishi 7-Bolt Oil filter Housing Gasket (MD185528)
Vehicle Fitment:
- 7-Bolt 4G63 1G/2G DSM
- 1992.5-1999 Eclipse GST/GSX
- 1992.5-1998 Talon TSi
- 1992.5-1994 Laser RS
- Requires custom mounting bracket
- Requires air-cooled oil filter housing
Important Notes:
The fittings threading into the oil cooler are pipe thread. Over tightening pipe thread will cause things to break. If you are not familiar with it, please seek professional installation.
