STM Tuned Evo 7/8/9 Forward Facing T3 Turbo Exhaust Manifold
Buy now pay later,no extra cost!
Payments from $406.39 with
"Allow 7-14 Days For Parts Manufacture/Order Processing Before Shipping"

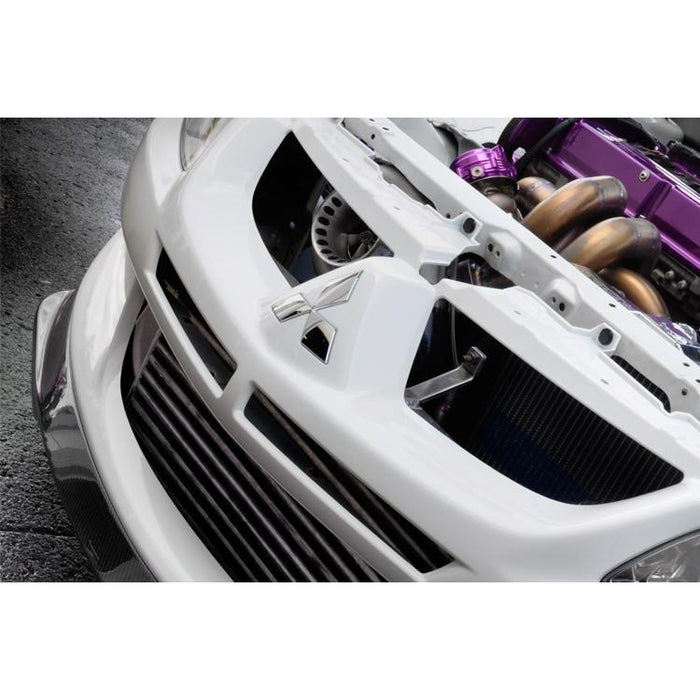

STM's notorious Forward-Facing Turbo Manifold places the turbo right in the wide open front bumper. If you have records to break, or shows to attend, this set-up will blow your competition away!

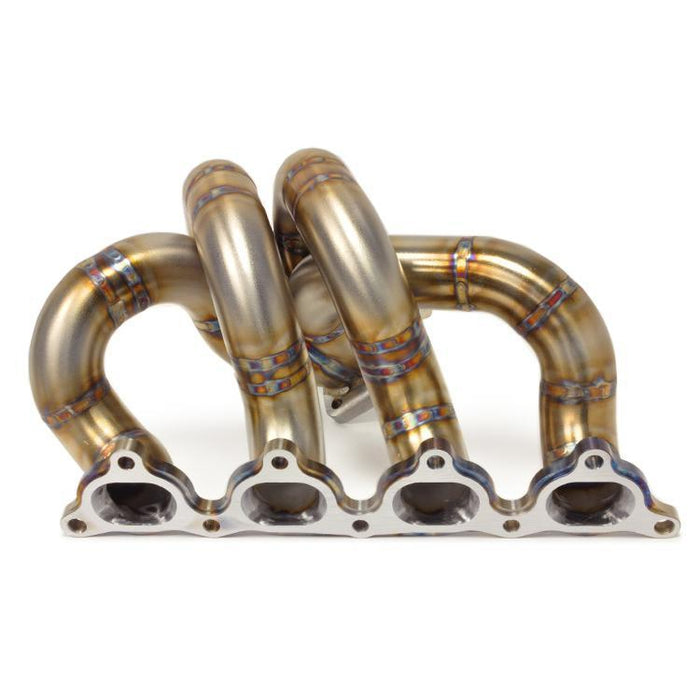

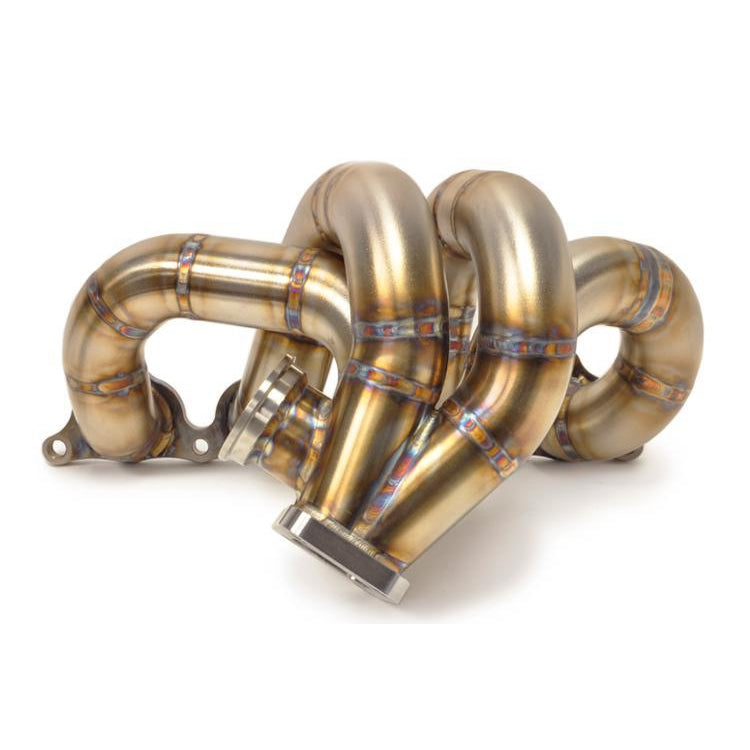

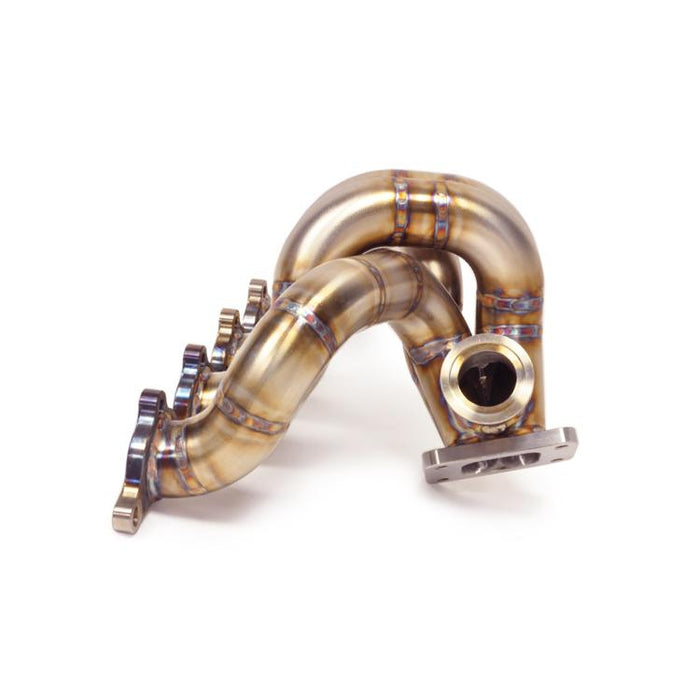

Features:
- Flanged for T3 Turbo
- Flanged for TiAL 44mm MVR Wastegate
- Tig-Welded
- Back-Purged
- No cutting of the vehicle involved for install
- Mild steel head flange to prevent pulling out studs
- Schedule 10 1.5" Stainless Steel Runners
- T3 flange is threaded for and requires M10 x 1.5 bolts

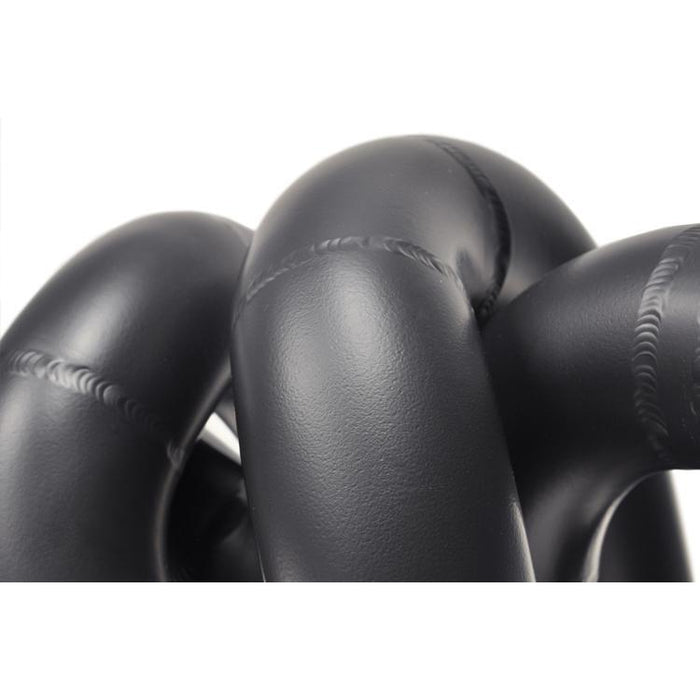

- High temp ceramic coating is available (2000°F) (+$200)
Vehicle Fitment:
- 2001-2006 Mitsubishi Lancer Evolution VII VIII IX
- For T3 Turbo with Garrett V-Band Outlet
- For T3 Turbo with PTE V-Band Outlet
- Flanged for TiAL 44mm MVR Wastegate
- Must Remove AC
- Requires custom downpipe/o2 housing or purchase our full Hot Parts Kit
- Requires Small Radiator Kit
- Uses this Lower Intercooler Pipe
More Info:

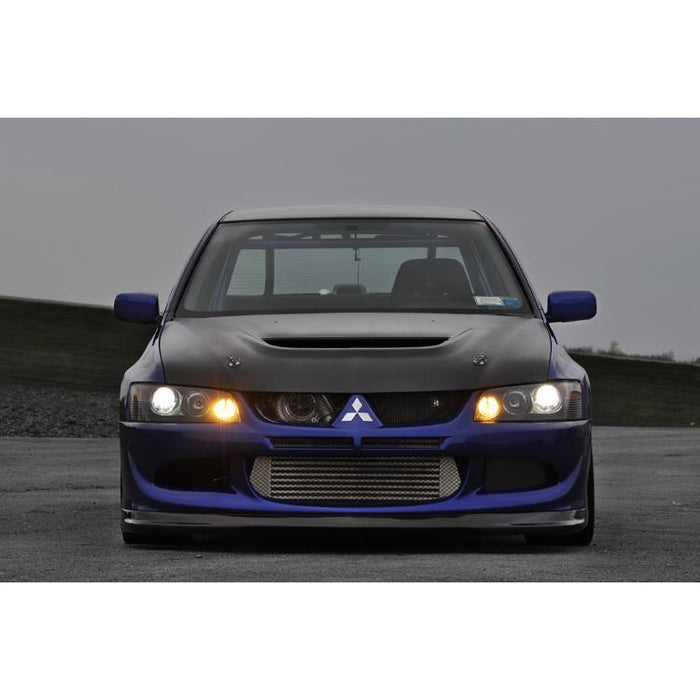

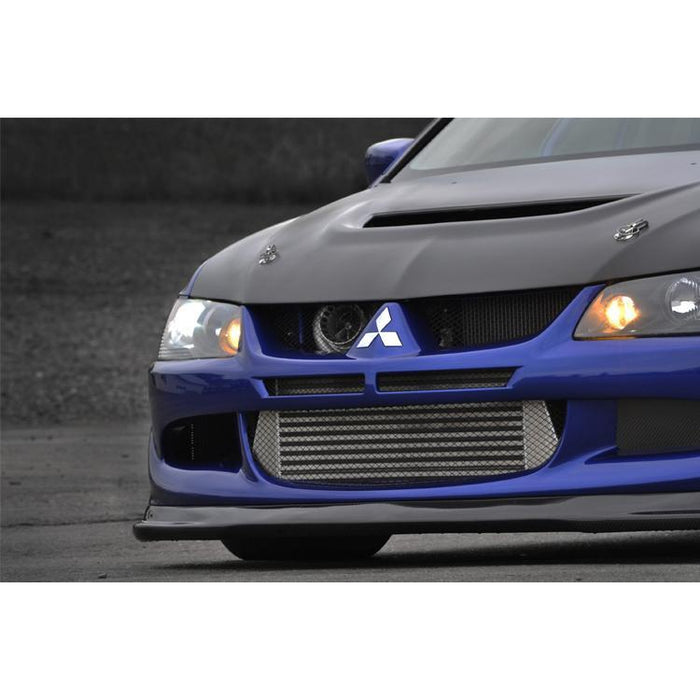

Way back in 2008, STM set the bar and created the bolt-on Forward Facing Manifold, utilizing the existing bumper vent as an open-air source for the turbo to feed.

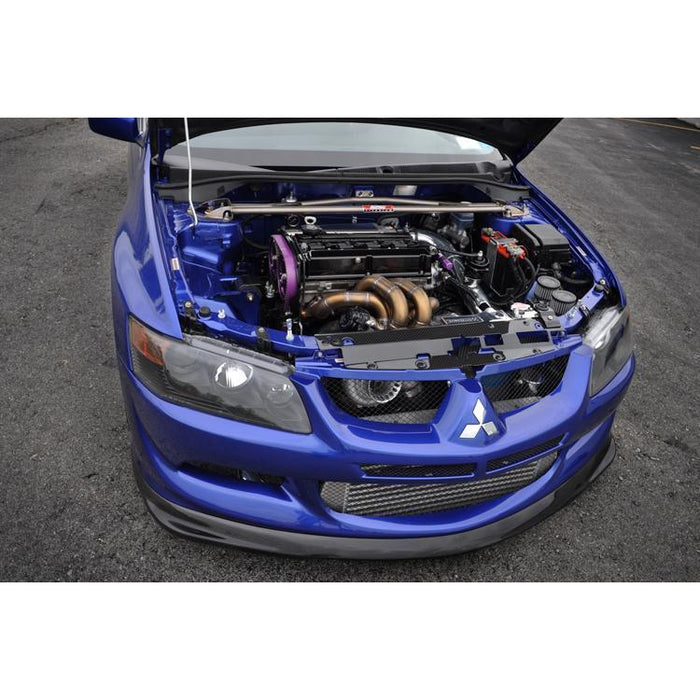

STM's notorious Forward-Facing Turbo Manifold places the turbo right in the wide open front bumper of the Evo VIII & IX. All we can say is, "This manifold works." Whether you are running a street car or all-out racecar, it has proven itself time and time again with 1/4 mile speeds at 180+ MPH. The STM Evo RS build set the bar in 2014 with it's 8.0 passes and we used the EXACT SAME manifold we sell to you!
This manifold leaves no room for an air filter, so if you're on the street and worried about rocks (and you should be!) it is wise to invest in a custom bumper cover. We've seen some beautiful, clear ABS plastic designs. But it's all up to you!
Made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.
Includes:
- (1) STM Manifold
