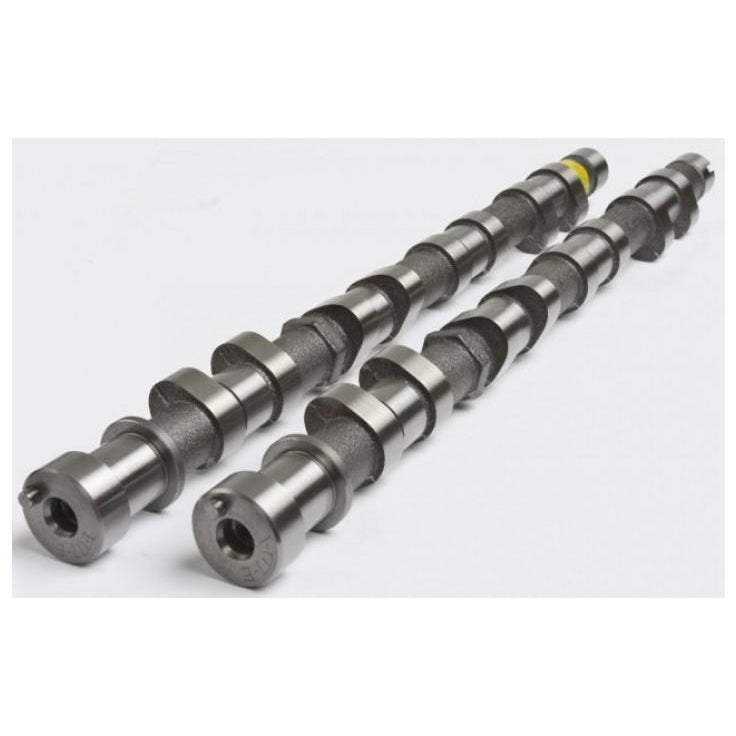

Kelford Cams 1-SLX272 Mitsubishi 4G63 EVO 1-3 Solid Lifter Race Cams
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
272/274 Degree advertised duration, 11.00mm/11.00mm lift
Additional Information:
Cams for Mitsubishi 4G63 VR4 Evolution 1-3 engines with solid lifter conversion. This is the solid version of our mega popular TX272 design.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-SLX272 | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 6.56mm | Exhaust: | 6.56mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 11.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 274 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 230 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 50 BBDC | ||
IVC: | 42 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | |||
VALVE | Lift @ TDC | Intake: | 1.46mm | Exhaust: | 0.99 |
