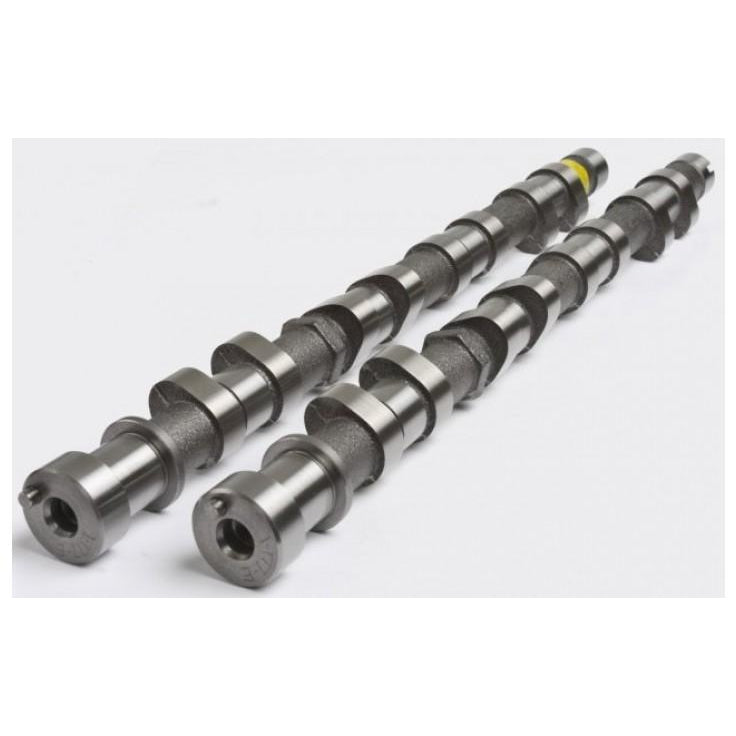

Kelford Cams 1-SLX294 Mitsubishi 4G63 EVO 1-3 Solid Lifter Race Cams

$1,029.62 NZD
SKU KC1-SLX294
Buy now pay later,no extra cost!

Payments from $102.96 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

294/300 Degree advertised duration, 12.00mm/12.00mm lift.lift.

Additional Information:

For Mitsubishi 4G63 VR4 Evolution 1-3 engines. Drag Racing cams to suit extreme boost, high RPM engines that use Ethanol / Methanol and/or nitrous.

Camshaft Information:
Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 1-3 1-SLX294
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.20mm Set COLD at the CAM

Cam Lift:   Intake: 7.14mm Exhaust: 7.14mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 12.00mm Exhaust: 12.00mm
Advertised Duration @ 0.10mm Intake: 294 Exhaust: 300
Duration @ 1.00mm VALVE LIFT Intake: 252 Exhaust: 258
Timing @ 1.00mm VALVE LIFT IVO: 16 BTDC EVO: 67 BBDC
    IVC: 56 ABDC EVC: 11 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 2.50mm Exhaust: 1.81
