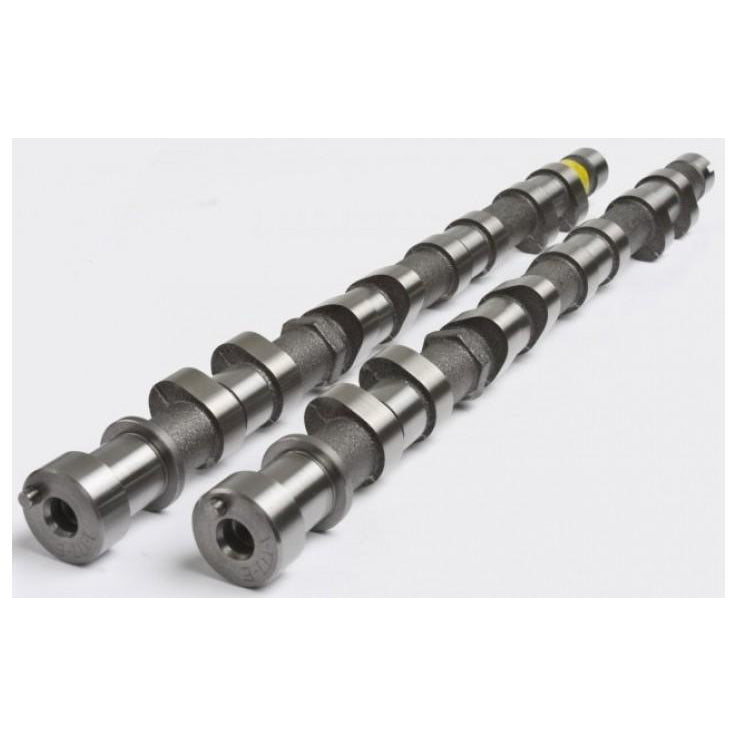

Kelford Cams 1-TX264 Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
264/260 Degree advertised duration, 11.00/10.35mm lift cams.
Additional Information:
The ultimate cam for street, strip and track engines from 300-500hp. These camshafts are stable to 35lb boost and 8000 RPM with our recommended valve springs.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 VR4 EVO1-3 | 1-TX264 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.36mm | Exhaust: | 5.98mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 10.35mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 260 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 216 | Exhaust: | 216 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 1 BTDC | EVO: | 41 BBDC | ||
IVC: | 35 ABDC | EVC: | 5 BTDC | ||||
Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
VALVE | Lift @ TDC | Intake: | 1.10mm | Exhaust: | 0.70 |
