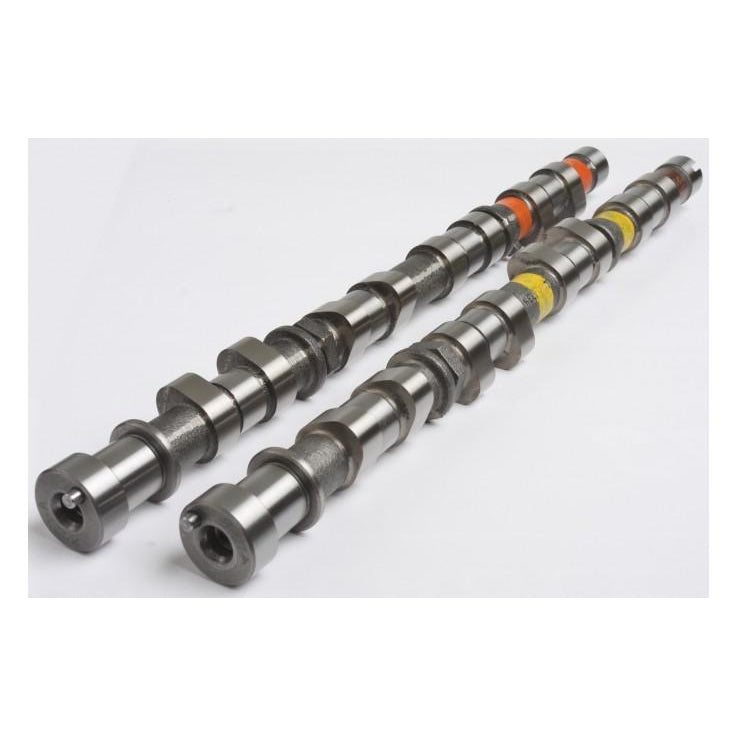

Kelford Cams 1-TX272R Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
272/272 Degree advertised duration, 11.75/11.75mm lift cams
Additional Information:
The Ultimate 272 on the market, dyno proven to be the best available to date. Suited for 450-700hp, 40lb and 9500RPM with our recommended valve spring.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-TX272R | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.79mm | Exhaust: | 6.79mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.75mm | Exhaust: | 11.75mm | |||
Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 232 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 9 BTDC | EVO: | 49 BBDC | ||
IVC: | 43 ABDC | EVC: | 3 ATDC | ||||
Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
VALVE | Lift @ TDC | Intake: | 1.83mm | Exhaust: | 1.07 |
