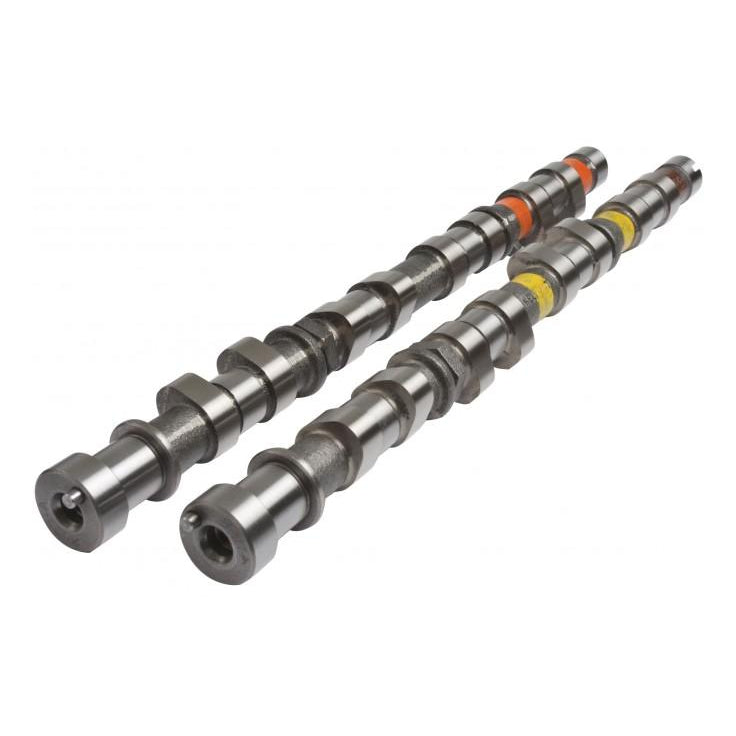

Kelford Cams 1-TX280R Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
280/288 Degree advertised duration, 11.50/11.50mm lift high HP racing cams.
Additional Information:
These camshafts suit well built time attack and drag racing engines using E85 fuel.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-TX280R | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.65mm | Exhaust: | 6.65mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 288 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 242 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 57 BBDC | ||
IVC: | 46 ABDC | EVC: | 5 ATDC | ||||
Suggested Centre Lines: | Intake: | 107 | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 2.09mm | Exhaust: | 1.29 |
