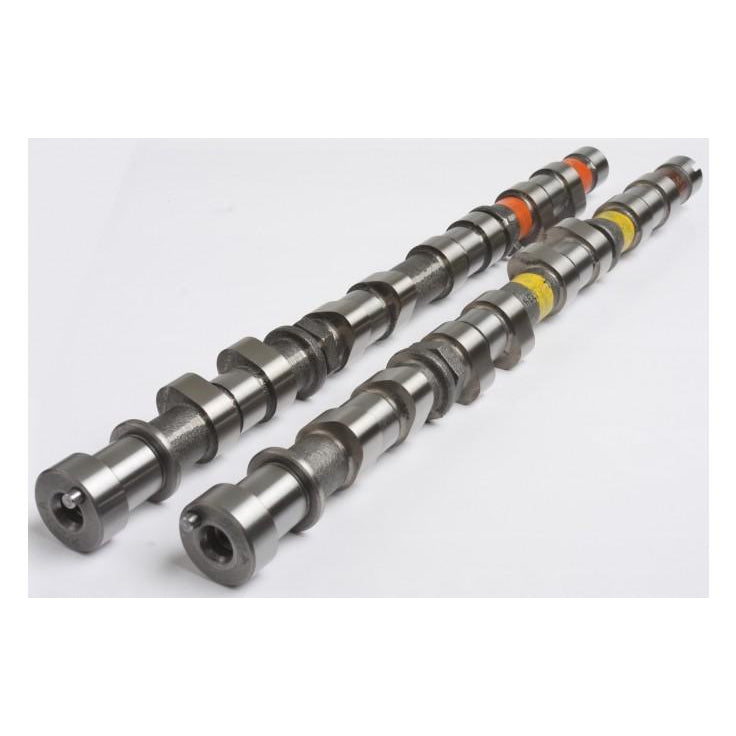

Kelford Cams 1-TX284HL Mitsubishi 4G63 VR4 Evo 1-3 High Lift Performance Cam Set
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
284/280 Degree advertised duration, 12.50mm/12.00mm high lift drag racing cams.
Additional Information:
These camshafts suit engines running up to 30lb boost and 9500 RPM with our recommended valve springs.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 1-3 | 1-TX284HL | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 7.23mm | Exhaust: | 6.94mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 12.50mm | Exhaust: | 12.00mm | |||
Advertised Duration @ | 0.10mm | Intake: | 284 | Exhaust: | 280 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 242 | Exhaust: | 238 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 15 BTDC | EVO: | 55 BBDC | ||
IVC: | 47 ABDC | EVC: | 3 ATDC | ||||
Suggested Centre Lines: | Intake: | 106 | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 2.36mm | Exhaust: | 1.21 |
