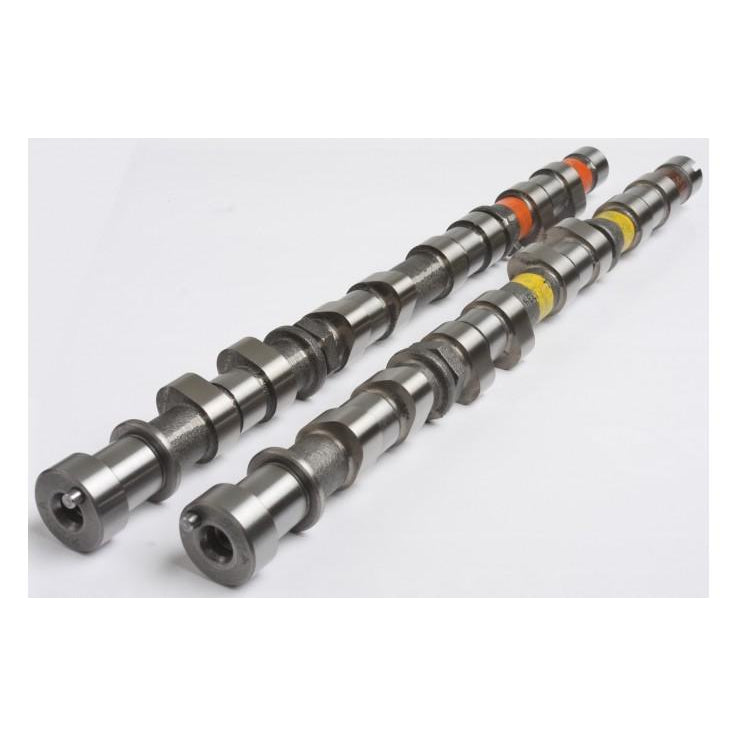

Kelford Cams 1-TX288 Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set
Buy now pay later,no extra cost!
Payments from $102.96 with
Note: Please check availability with us before ordering.
288/280 Degree advertised duration, 12.00/11.50mm lift drag racing cams.
Additional Information:
These camshafts suit high HP, professionally built drag racing engines up to 50lb boost and 9500 RPM with our recommended valve springs.
Camshaft Information:
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 VR4 EVO1-3 | 1-TX288 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.94mm | Exhaust: | 6.65mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 11.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 288 | Exhaust: | 280 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 242 | Exhaust: | 238 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 16 BTDC | EVO: | 56 BBDC | ||
IVC: | 46 ABDC | EVC: | 2 ATDC | ||||
Suggested Centre Lines: | Intake: | 105 | Exhaust: | 117 | |||
VALVE | Lift @ TDC | Intake: | 2.40mm | Exhaust: | 1.32 |
