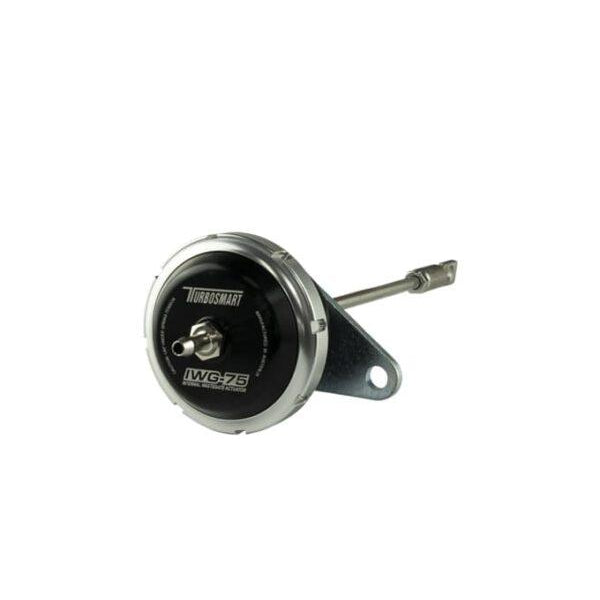

Turbosmart IWG75 Wastegate Actuator Suit Mitsubishi EVO 10 18 PSI Black
Buy now pay later,no extra cost!
Payments from $28.45 with
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Available In:
- 10 PSI / 0.68 BAR: TS-0601-3102
- 12 PSI / 0.83 BAR: TS-0601-3122
- 14 PSI / 1.00 BAR: TS-0601-3142
- 18 PSI / 1.24 BAR: TS-0601-3182
- 22 PSI / 1.51 BAR: TS-0601-3222
Features
- Proprietary Silicon Nomex Diaphragm
- Choice of Springs from 3psi to 26psi (Optional)
- High Grade Billet Aluminum Construction
- Stainless Steel Rods and Clevis
- Turbosmart Unique Locking Collar System
Notes:
14 psi Version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the TD05H turbocharger as fitted factory to the 4B11 Powered Mitsubishi Evolution 10.
