BNR S2 Turbo Upgrade - MS3/6
$2,356.53 NZD
SKU BNR-S2
Buy now pay later,no extra cost!
Payments from $235.65 with
Enjoy now. Pay Later. Interest free. Learn More

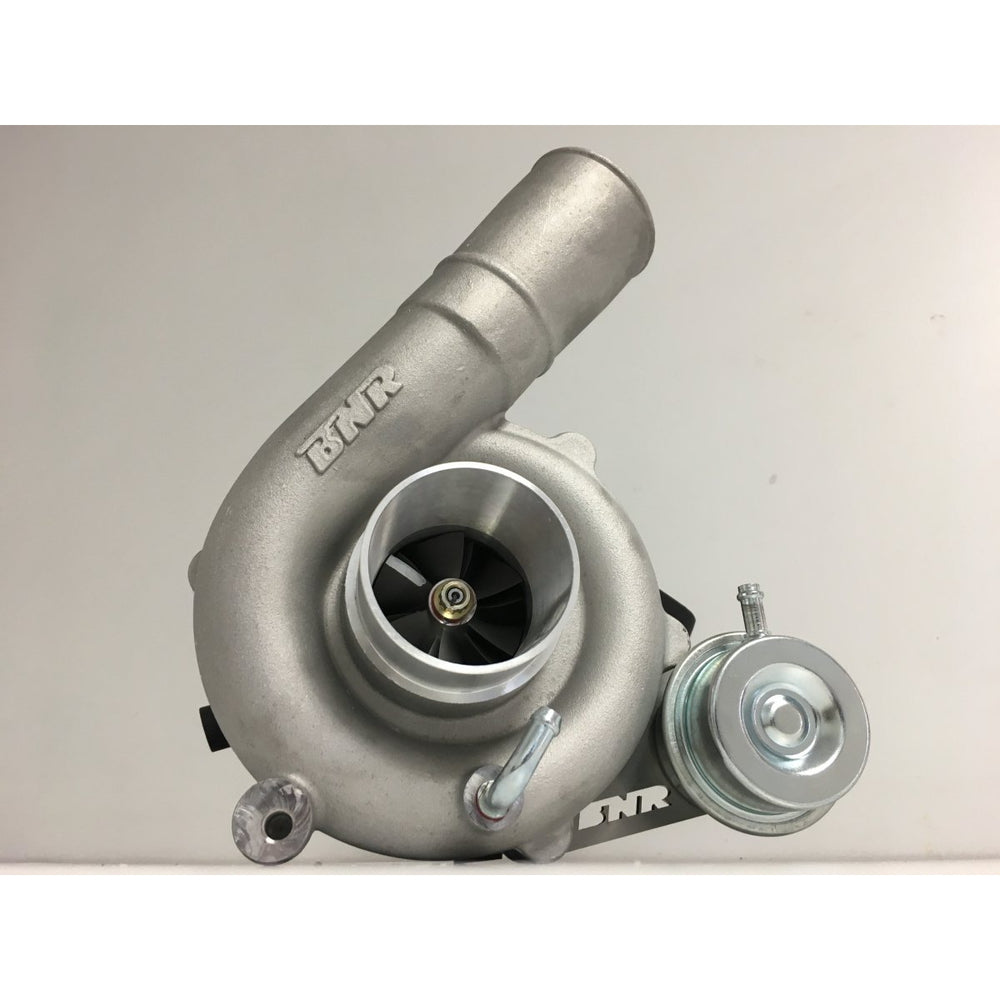

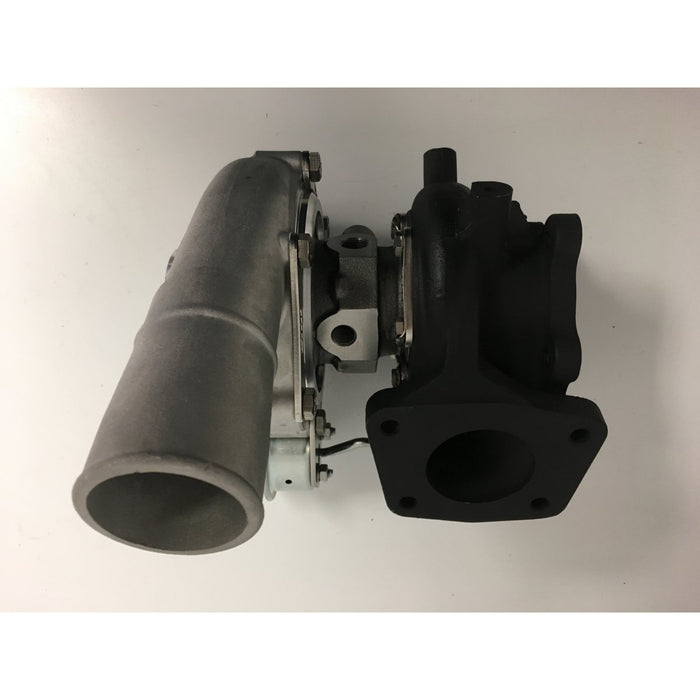

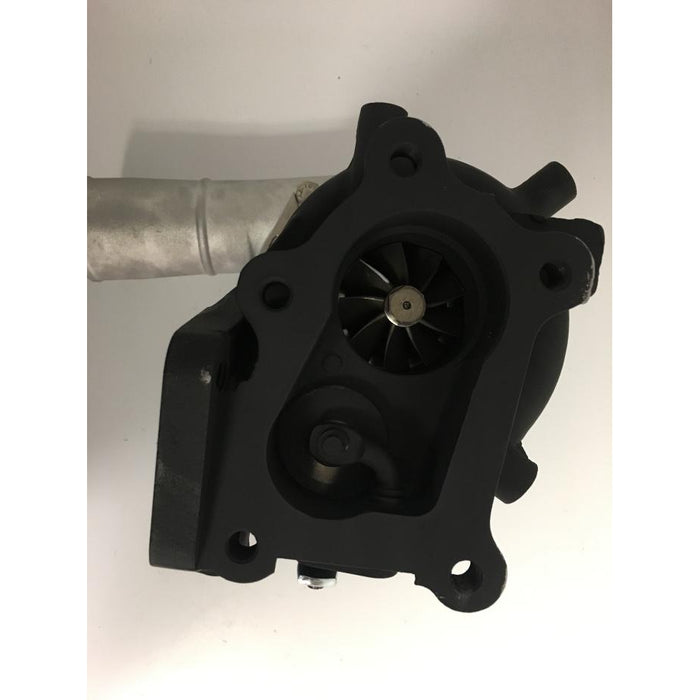

BNR S2 Turbo Upgrade – MS3/6
BNR S2 Turbo Upgrade - MS3/6
The S2 has the same inlet diameter as stock (2.25”). Only things you will need to modify is the location of the boost control solenoid. It’s direct bolt in and capable of 40 lbs/min of air flow. The benefit with the S2 over the S1 is added response and mid range from the larger A/R ratio of the compressor housing and an upgraded wastegate actuator. Peak power stays the same.
No core is required - this is a complete turbo ready to bolt on with no tuning.
This is what you get when you order an S2:
- GT28 Turbine wheel
- BNR’s custom GT2860 compressor wheel (40 lbs/min flow rate)
- High Performance 360 thrust assembly
- Wide journal bearings
- Rear journal bearing oil deflector (Diverts oil away from the turbine seal)
- High-Performance turbine seal
- Balanced and blueprinted to .5 gram/in2
- BNR’s custom T2 bearing housing (uses all OE oil and water fittings)
- BNR compressor housing
- BNR .63 a/r turbine housing with 27mm wastegate port
- Upgraded wastegate actuator (set at 13 psi)
- All stainless hardware
- 5 Layer stainless MLS turbine inlet/outlet gaskets
- (9) M10 1.5 exhaust studs
- Extended stainless water line (firewall side)
- (4) 14mm copper sealing rings
- 1 year warranty!
Note: This is a special order product - please allow up to 3 weeks for delivery.
