Fueltech - EGT-4 CAN
by FuelTech
$852.05 NZD
SKU 5022007368
Buy now pay later,no extra cost!
Payments from $85.20 with
Enjoy now. Pay Later. Interest free. Learn More

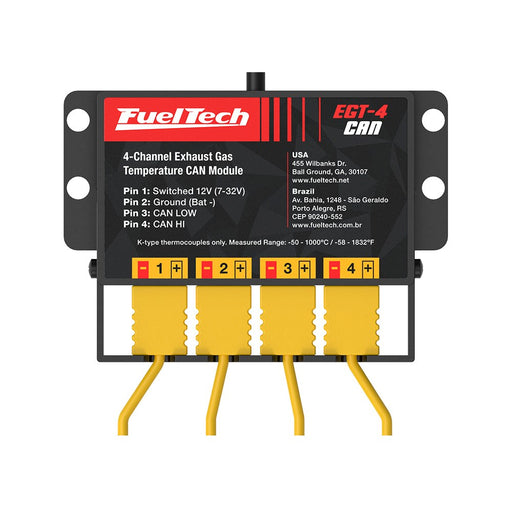

4 channel conditioner for Type K thermocouples with CAN communication for PowerFT ECU's.
FEATURES
- The FuelTech EGT-4 CAN is compatible with any type K thermocouple (grounded junction or not).
- 4 channel signal conditioner with CAN bus communication for PowerFT ECU's, can be used to read EGT's, CHT's, oil, air, water or any other temperature using a type K thermocouple.
- Works as an input expander for PowerFT ECU's, freeing up 4 white input channels to be used for other purposes.
- With the possibility to use up to 4 EGT-4 modules in the same installation, as much as 16 different channels will be available for all sorts of data acquisition.
- Compatible with PowerFT ECU's (FT450, FT550, FT600, FT500LITE and FT 550LITE).
PACKAGES
V8 / 2 units, harnesses and 8 sensors:
- w/ 2 harnesses
- 2 of each 42"/36"/30"/24" Thermocouple sensors included
- Add second EGT-4 CAN unit
6 cylinder / 2 units, harnesses and 6 sensors:
- w/ 2 harnesses
- 48"/42"/36"/30"/24"/18" Thermocouple sensors included
- Add second EGT-4 CAN unit
4 cylinder / harness and 4 sensors:
- w/ harness
- 42"/36"/30"/24" Thermocouple sensors included
4 rotor / harness and 4 sensors:
- w/ harness
- 4 of the 36" Thermocouple sensors included
3 rotor / harness and 3 sensors:
- w/ harness
- 3 of the 36" Thermocouple sensors included
2 rotor / harness and 2 sensors:
- w/ harness
- 2 of the 36" Thermocouple sensors included
TECH DESCRIPTION
- Inputs: 4 type K thermocouple inputs
- Outputs: 1 CAN
-
Dimensions:
- EGT-4 CAN : 4.33 x 2.28 x 0.7 in
- EGT-4 CAN Packaging: 8.78 x 6.38 x 2.36 in
-
Weight:
- EGT-4 CAN : 4.87 oz
- EGT-4 CAN Packaging without harness 78.75 in: 12.13 oz
-
Contents of packaging:
- 1 EGT-4 CAN
- 1 Installation and operation manual
-
Warranty:
- Worldwide: 1 year
